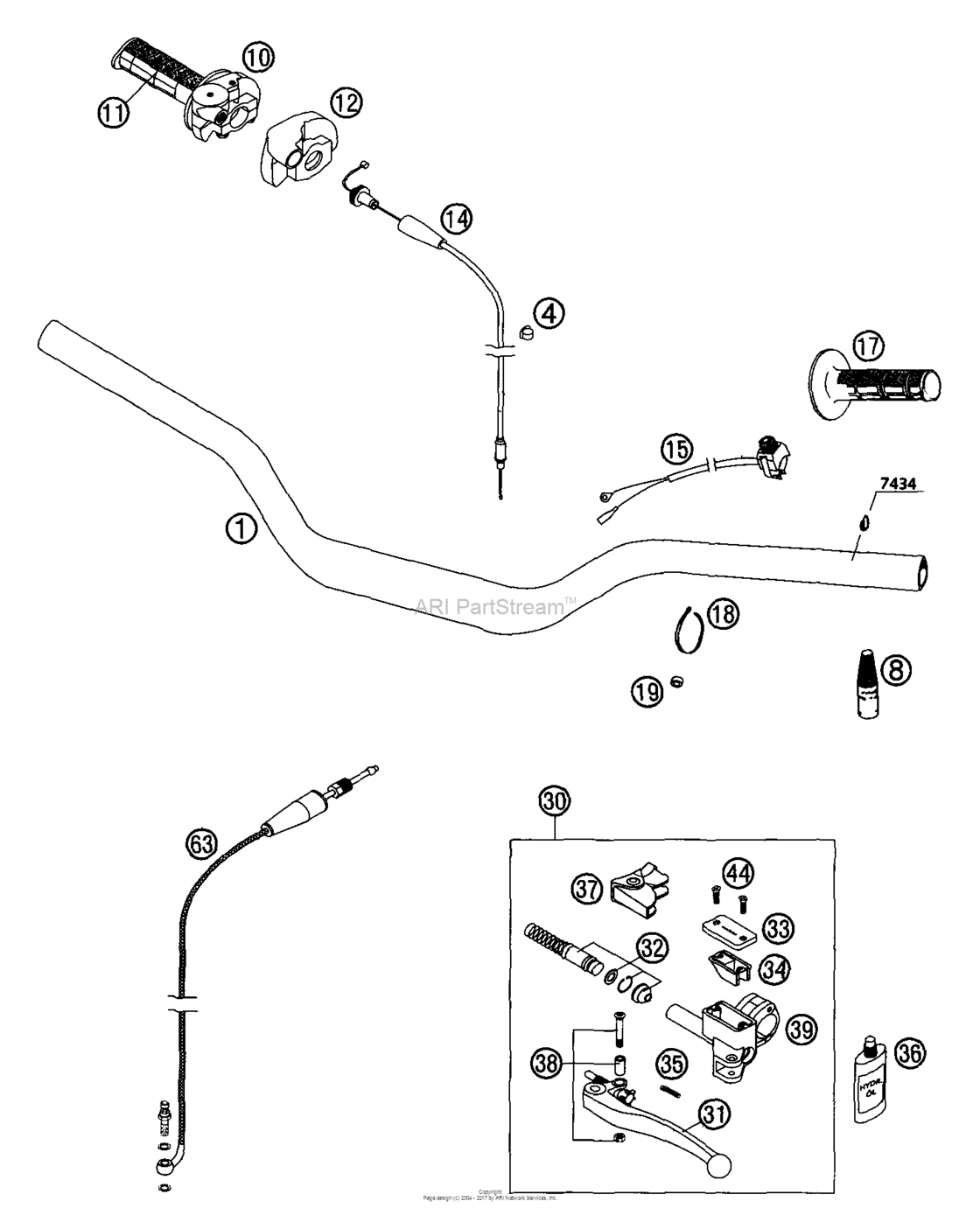

Handlebar, Controls Diagram KTM 250 250 SX
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54802001000 Handlebar d=28mm low 03(BLACK) |
54802001000 |
US $212.13 |
||
|
1
|
1
59002001000
Handlebar 28mm high 2000
(BLACK) |
59002001000 |
— | ||
| replacement | |||||
|
1
|
1
5900210120017 HANDLEBAR D=28MM(BLACK) |
5900210120017 |
US $226.27 |
||
|
4
|
4
57013072000 Wiring holder 12mm(BLACK) |
57013072000 |
US $3.50 |
||
|
8
|
8
6899792
Glue Cyanacrylat 7434
(BLACK) |
6899792 |
— | ||
|
10
|
10
50302010000 Throttle Grip Cpl. 2St. 13(BLACK) |
50302010000 |
US $96.36 |
||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 13(BLACK) |
51502010200 |
US $67.97 |
||
|
11
|
11
50202003000
Gripp Set Half Waffle
(BLACK) |
50202003000 |
— | ||
| replacement | |||||
|
11
|
11
50202021000 Gripp Set Half Waffle(BLACK) |
50202021000 |
US $23.31 |
||
|
12
|
12
50302020000 Protection Cover '97(BLACK) |
50302020000 |
US $16.75 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
(BLACK) |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 2014(BLACK) |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 02(BLACK) |
50311089200 |
US $50.97 |
||
|
17
|
17
50202052000
Gripp Set Half Waffle
(BLACK) |
50202052000 |
— | ||
| replacement | |||||
|
17
|
17
50202021000 Gripp Set Half Waffle(BLACK) |
50202021000 |
US $23.31 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(BLACK) |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x5(BLACK) |
50301089000 |
US $1.58 |
||
|
30
|
30
54602030000 Master cylinder cpl.250/300 03(BLACK) |
54602030000 |
US $297.76 |
||
|
31
|
31
54602031000 Clutch Lever Short Cpl. 2003(BLACK) |
54602031000 |
US $42.99 |
||
|
31
|
31
59002031000 Clutch Lever Long Cpl. 2003(BLACK) |
59002031000 |
US $42.99 |
||
|
32
|
32
50302032000 Rep.set piston magura d=10.5(BLACK) |
50302032000 |
US $116.60 |
||
|
33
|
33
50302033100 Cover hyd.clutch 2t 2000(BLACK) |
50302033100 |
US $24.04 |
||
|
34
|
34
50302034000 Rubber for reservoir '98(BLACK) |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 03(BLACK) |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036000
Oil For Hyd. Clutch 100 Ml
(BLACK) |
50302036000 |
— | ||
| replacement | |||||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 Ml(BLACK) |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98(BLACK) |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98(BLACK) |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000(BLACK) |
50302030150 |
US $34.46 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12(BLACK) |
0965040123 |
US $0.56 |
||
|
63
|
63
50332063100 Clutch pipe 125/200 2003(BLACK) |
50332063100 |
US $87.18 |
||
