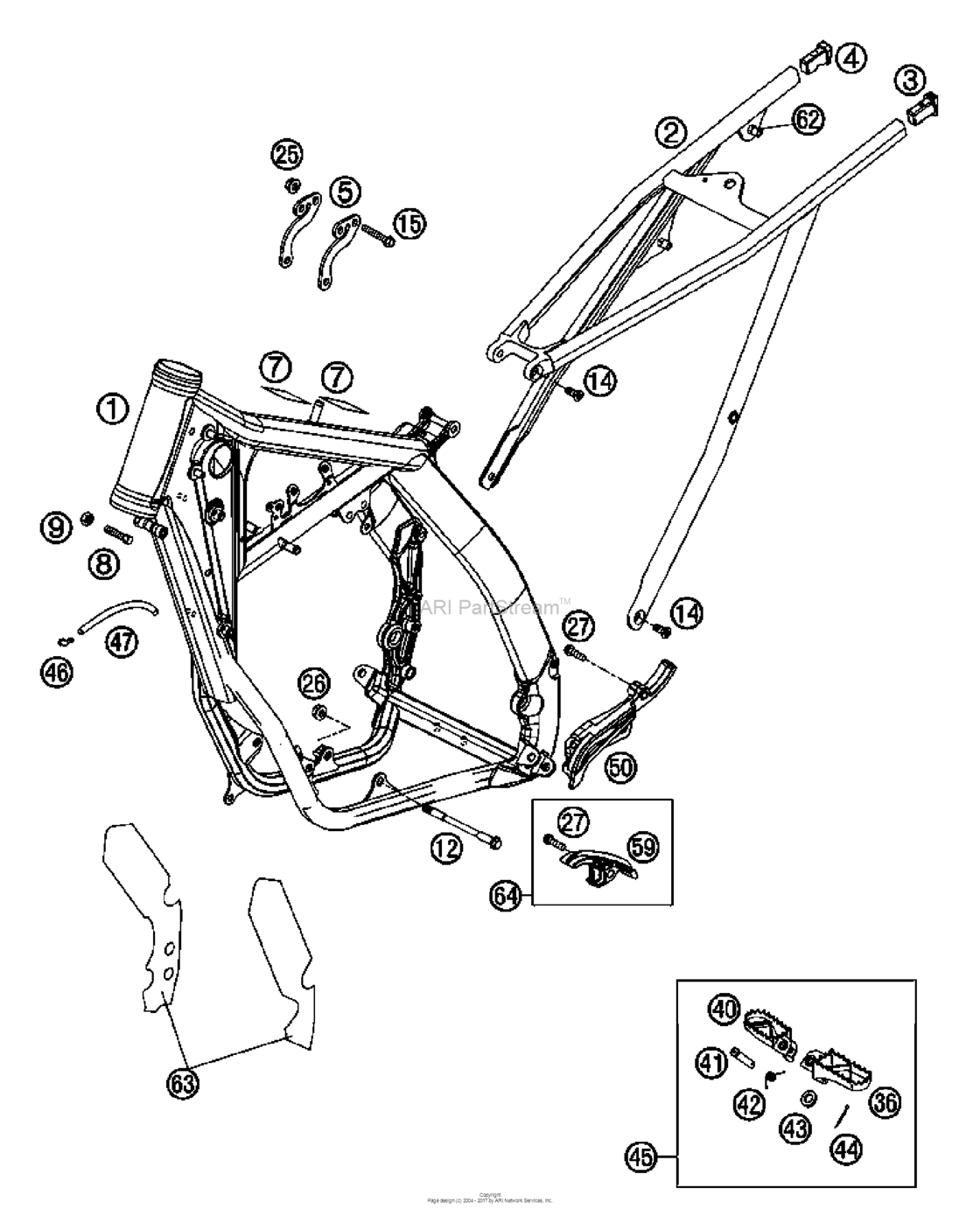

Frame, Sub Frame Diagram KTM 250 250 SX
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480340100030 Frame 250 sx "ca07" 07(BLACK) |
5480340100030 |
US $1,399.15 |
||
|
2
|
2
77303002000 Sub frame sx "q7" 07(BLACK) |
77303002000 |
US $363.92 |
||
|
3
|
3
77303002010
Sub Frame Application Left
(BLACK) |
77303002010 |
— | ||
| replacement | |||||
|
3
|
3
0025060206 Hh collar screw m6x20 tx30(BLACK) |
0025060206 |
US $1.97 |
||
|
4
|
4
77303002020
Sub Frame Application Right
(BLACK) |
77303002020 |
— | ||
| replacement | |||||
|
4
|
4
0025060206 Hh collar screw m6x20 tx30(BLACK) |
0025060206 |
US $1.97 |
||
|
5
|
5
54803413000 Reinforcing b. 250 sx 07(BLACK) |
54803413000 |
US $12.41 |
||
|
7
|
7
50307012000 Adh. foil transp. 80x80 mm 04(BLACK) |
50307012000 |
US $2.02 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=10(BLACK) |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 8(BLACK) |
0934080003 |
US $3.26 |
||
|
12
|
12
54603013000 Engine brac.scr. m10x105 ws=13(BLACK) |
54603013000 |
US $9.74 |
||
|
14
|
14
0019080206S Flat head screw m. isa45 m8x20(BLACK) |
0019080206S |
US $3.26 |
||
|
15
|
15
56530079000
Collar screw m8x42 ws=13 10.9
(BLACK) |
56530079000 |
— | ||
| replacement | |||||
|
15
|
15
56530079000S Hh Collar Screw M8X44 Ws13(BLACK) |
56530079000S |
US $1.60 |
||
|
25
|
25
54310086200 Self Locking Nut M8 10.9(BLACK) |
54310086200 |
US $1.56 |
||
|
26
|
26
54310086100 Self locking nut m10 cu ws=14(BLACK) |
54310086100 |
US $2.55 |
||
|
27
|
27
0015080303
Hh Collar Screw M8X30 Tx40
(BLACK) |
0015080303 |
— | ||
| replacement | |||||
|
27
|
27
0025080306 Hh collar screw m8x30 tx40(BLACK) |
0025080306 |
US $3.89 |
||
|
36
|
36
59003040250 Footrest L/s 08(BLACK) |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
36
|
36
78003040050 Footrest l/s 08(BLACK) |
78003040050 |
US $44.12 |
||
|
40
|
40
59003041250 Footrest R/s 08(BLACK) |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
40
|
40
78003041050 Footrest r/s 08(BLACK) |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 Mm(BLACK) |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s(BLACK) |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,5(BLACK) |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel(BLACK) |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel(BLACK) |
0094032250 |
US $1.12 |
||
|
45
|
45
5030314013390 Footpeg l.+r. cpl. 03(BLACK) |
5030314013390 |
US $172.55 |
||
|
46
|
46
50303089000 Angle piece '97(BLACK) |
50303089000 |
US $4.52 |
||
|
47
|
47
55007016001 Pvc-hose 7x10 per meter(BLACK) |
55007016001 |
US $5.98 |
||
|
50
|
50
54803096000 Sprocket cover 250 sx 07(BLACK) |
54803096000 |
US $9.93 |
||
|
59
|
59
77303053000 Chain sliding piece below 07(BLACK) |
77303053000 |
US $9.78 |
||
|
62
|
62
77303139000 Blind rivet nut em6-60lf/hx(BLACK) |
77303139000 |
US $2.94 |
||
|
63
|
63
77303094000 Frame protection stick. set 07(BLACK) |
77303094000 |
US $34.36 |
||
|
64
|
64
77303053010 Chain sliding p. below cpl. 07(BLACK) |
77303053010 |
US $9.62 |
||
