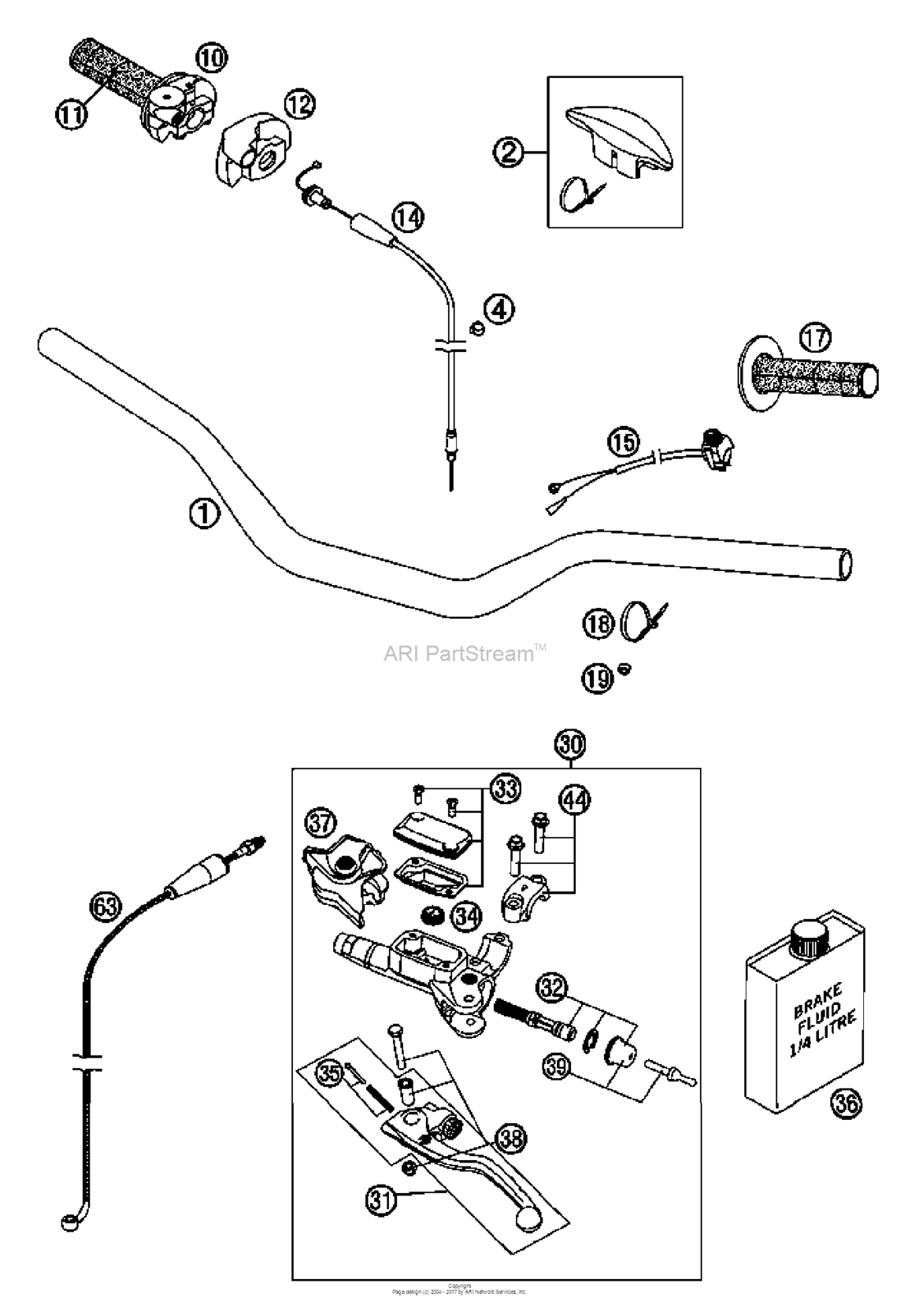

Handlebar, Controls Diagram KTM 250 250 SX
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7730200100017
Handlebar Renthal Sx 28Mm 08
(BLACK) |
7730200100017 |
— | ||
| replacement | |||||
|
1
|
1
7730200110017 Handlebar Renthal Sx 28Mm 08(BLACK) |
7730200110017 |
US $147.73 |
||
|
2
|
2
59002002000
Superseded By 77202002100
(BLACK) |
59002002000 |
— | ||
|
4
|
4
57013072000 Wiring holder 12mm(BLACK) |
57013072000 |
US $3.50 |
||
|
10
|
10
54802010000
Throttle Grip Cpl. 2St. 13
(BLACK) |
54802010000 |
— | ||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 13(BLACK) |
51502010200 |
US $67.97 |
||
|
11
|
11
54802013000
Grip-Set Gray/orange 09
Not Available
(BLACK) |
54802013000 |
— | ||
| replacement | |||||
|
11
|
11
54802021200 Grip-set gray/orange 09(BLACK) |
54802021200 |
US $28.29 |
||
|
12
|
12
50302020000 Protection Cover '97(BLACK) |
50302020000 |
US $16.75 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
(BLACK) |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 2014(BLACK) |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 02(BLACK) |
50311089200 |
US $50.97 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
(BLACK) |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 09(BLACK) |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(BLACK) |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x5(BLACK) |
50301089000 |
US $1.58 |
||
|
30
|
30
54802030044
Master cylinder cpl. 06
(BLACK) |
54802030044 |
— | ||
| replacement | |||||
|
30
|
30
54802030144 Master Cylinder Cpl(BLACK) |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 06(BLACK) |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 06(BLACK) |
54802032000 |
US $43.21 |
||
|
33
|
33
54802003000 Cover hyd. clutch cpl.(BLACK) |
54802003000 |
US $30.28 |
||
|
34
|
34
54802051000 Valve(BLACK) |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.(BLACK) |
54802052000 |
US $26.49 |
||
|
36
|
36
306054
Brake fluid dot 4.0
(BLACK) |
306054 |
— | ||
|
37
|
37
54802037000 Protection cap 06(BLACK) |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 06(BLACK) |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.(BLACK) |
54802046000 |
US $20.01 |
||
|
44
|
44
54802005100 Clamp cpl. 06(BLACK) |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 06(BLACK) |
54832063000 |
US $87.04 |
||
