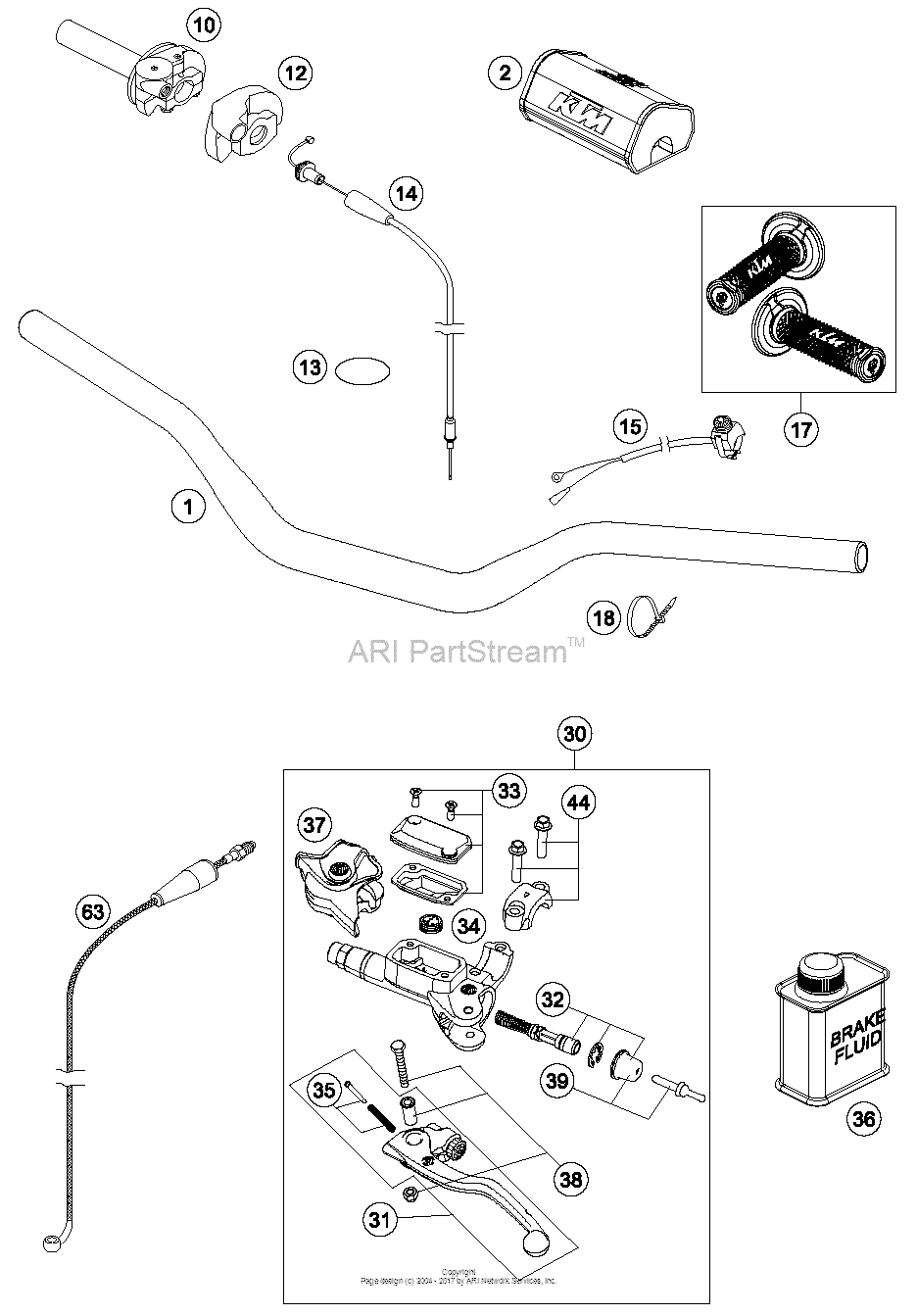

Handlebar, Controls Diagram KTM 250 250 SX
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7770200110030 Handlebar Black2000 |
7770200110030 |
US $160.77 |
||
|
2
|
2
79002002000 Bar Pad2000 |
79002002000 |
US $35.14 |
||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 132000 |
51502010200 |
US $67.97 |
||
|
12
|
12
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
13
|
13
0770049025 O-ring 49,00x2,50 nbr'97 |
0770049025 |
US $2.98 |
||
|
14
|
14
51502091200 Throttle Cable 2-St. 20142014 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 022014 |
50311089200 |
US $50.97 |
||
|
17
|
17
78102021000 Grip Set2014 |
78102021000 |
US $25.62 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm blackAs Required |
44011076200 |
US $0.39 |
||
|
30
|
30
54802030144 Master Cylinder CplAs Required |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 06As Required |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 06As Required |
54802032000 |
US $43.21 |
||
|
33
|
33
5480200310030 Cover Hyd. Clutch Cpl. 20142014 |
5480200310030 |
US $40.39 |
||
|
34
|
34
54802051000 Valve2014 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.2014 |
54802052000 |
US $26.49 |
||
|
36
|
36
00062030000 Brake fluid dot5.1 0,25l2014 |
00062030000 |
US $14.35 |
||
|
37
|
37
54802037000 Protection cap 062014 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 062014 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.2014 |
54802046000 |
US $20.01 |
||
|
44
|
44
54802005100 Clamp cpl. 062014 |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 062014 |
54832063000 |
US $87.04 |
