Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 55430002000 Ignition Cover '91	55430002000	US $32.69
2	2 0025060256 Hh collar screw m6x25 tx30 TX30	0025060256	US $2.45
3	3 0025060206 Hh collar screw m6x20 tx30 TX30	0025060206	US $1.97
4	4 59039006000 Ignitioncoil "ig5128" TX30	59039006000	US $132.38
5	5 0025050166 Hh collar screw m5x16 tx30 TX30	0025050166	US $2.60
6	6 49030021000 Collar nut m12x1 r/s TX30	49030021000	US $10.57
7	7 50230029012 Locking ring vsk 12 TX30	50230029012	US $2.19
8	8 55439005100 Rotor TX30	55439005100	US $244.90
9	9 0912050253 Ah screw din0912-m 5x25 TX30	0912050253	US $0.61
10	10 0014050163 Hh collar screw m 5x16 ws=6 TX30	0014050163	US $1.36
11	11 50439004010 Pickup Bracket TX30	50439004010	US $3.79
12	12 55439004000 Stator TX30	55439004000	US $183.19
13	13 50439013100 Distance Unit TX30	50439013100	US $4.15
14	14 47039090000 Spark plug cap ngk reinforc.04 TX30	47039090000	US $24.26
15	15 54331093410 Spark plug ngk br8ecm TX30	54331093410	US $16.85
16	16 50231012000 Sealing cup for spark plug TX30	50231012000	US $3.91
17	17 0017060305 Special Screw K60X30 Ws=6 TX30	0017060305	US $2.24
18	18 0021050003 Washer din9021-a 5,3 TX30	0021050003	US $1.29
19	19 55439031000 Electronic Case 250Sx 17 Not Available TX30	55439031000	US $271.49
20	20 60308006000 Collar Bushing 6,2X9,2X15X12,5 TX30	60308006000	US $2.19
21	21 0017060206 Screw F. Plastic K60X20Al Sw6 TX30	0017060206	US $2.89
22	22 79011055000 Battery Box TX30	79011055000	US $27.03
23	23 54839032200 Wiring harness for cdi 2-st.07 TX30	54839032200	US $68.10
24	24 45230024000 Dowel 9,8x7x5.5 TX30	45230024000	US $2.92

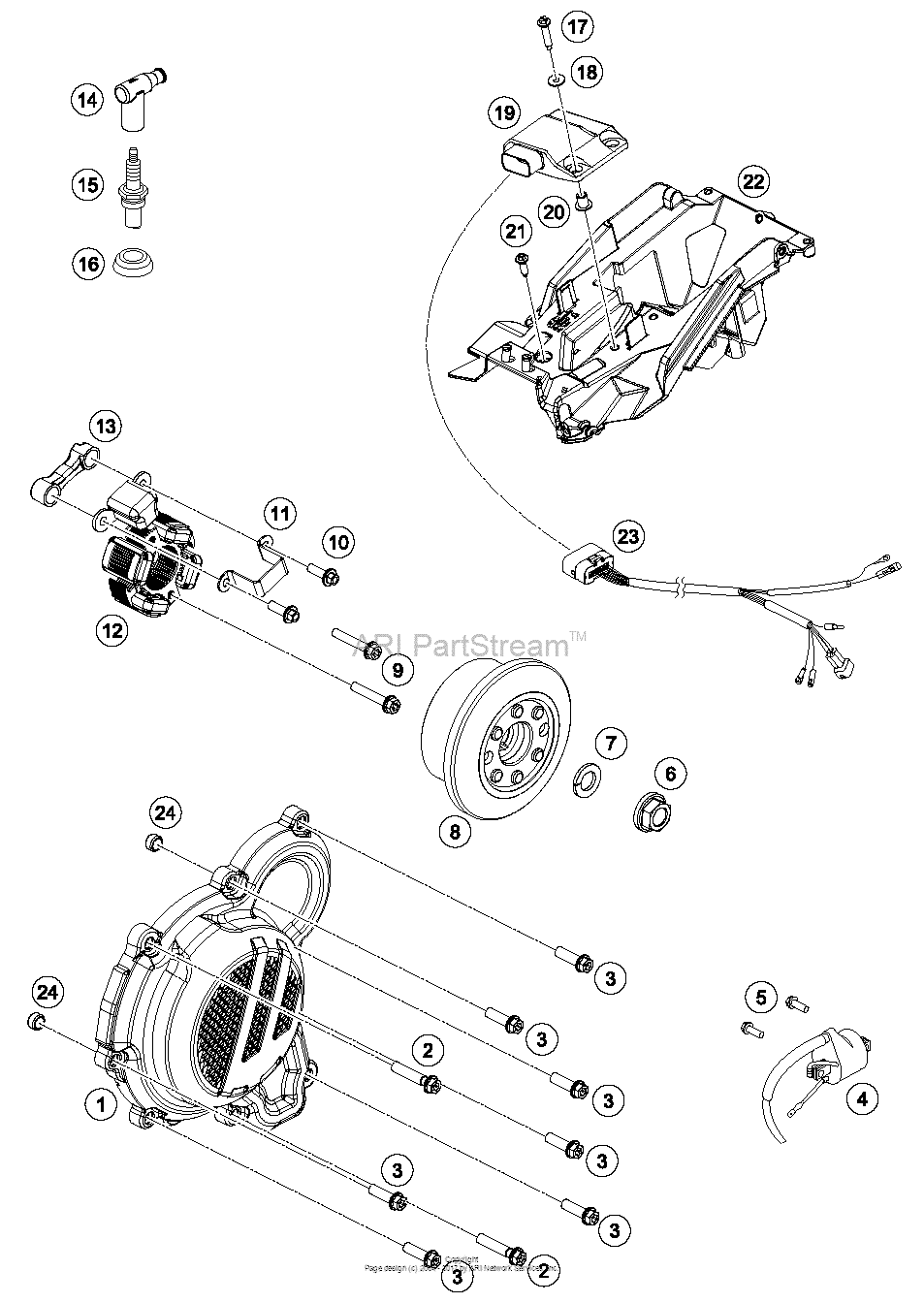

Ignition System Diagram KTM 250 250 SX US/EU 18082665-939521

Ignition System Diagram KTM 250 250 SX US/EU 18082665-939521
