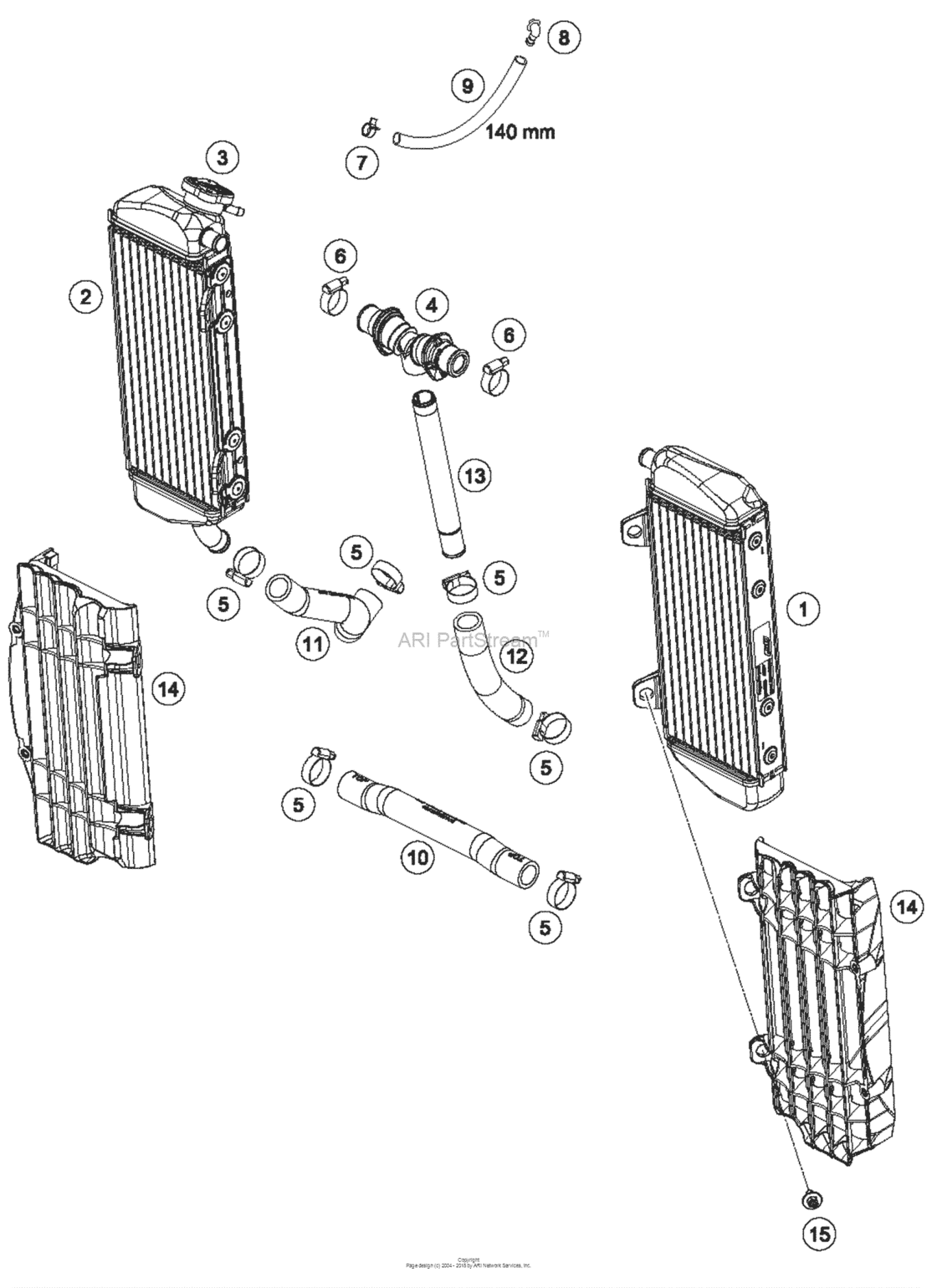

Cooling System Diagram KTM 250 250 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50435007100 Radiator Left 17TX30 |
50435007100 |
US $226.22 |
||
|
2
|
2
50435008100 Radiator Right 17TX30 |
50435008100 |
US $278.04 |
||
|
3
|
3
79035016000 Radiator Cap 1,8 BarTX30 |
79035016000 |
US $23.94 |
||
|
4
|
4
79035071044 Y-Piece CplTX30 |
79035071044 |
US $55.73 |
||
|
5
|
5
10001020000 Hose Clamp 18-2918-29 |
10001020000 |
US $4.71 |
||
|
6
|
6
42013037400 Hose Clamp Norma 14/2418-29 |
42013037400 |
US $4.17 |
||
|
7
|
7
59007017000 Clamp ydnac 10096f (9,6mm)18-29 |
59007017000 |
US $1.48 |
||
|
8
|
8
50303089000 Angle piece '9797 |
50303089000 |
US $4.52 |
||
|
9
|
9
50335030001 Pvc-Hose 6X9As Required |
50335030001 |
US $5.12 |
||
|
10
|
10
56535025001 Radiator hose 18x25 per metreAs Required |
56535025001 |
US $42.30 |
||
|
11
|
11
55435024000 Hose Engine Y-LinkAs Required |
55435024000 |
US $7.79 |
||
|
12
|
12
55435025000
Radiator Hose 18X25 Per Metre
As Required |
55435025000 |
— | ||
| replacement | |||||
|
12
|
12
56535025001 Radiator hose 18x25 per metreAs Required |
56535025001 |
US $42.30 |
||
|
13
|
13
50435073000 Cooling Water PipeAs Required |
50435073000 |
US $16.78 |
||
|
14
|
14
7903503400030 Radiator Protect 20162016 |
7903503400030 |
US $23.43 |
||
|
15
|
15
0024060123 Collar screw m6x12 tx2016 |
0024060123 |
US $0.66 |
||
