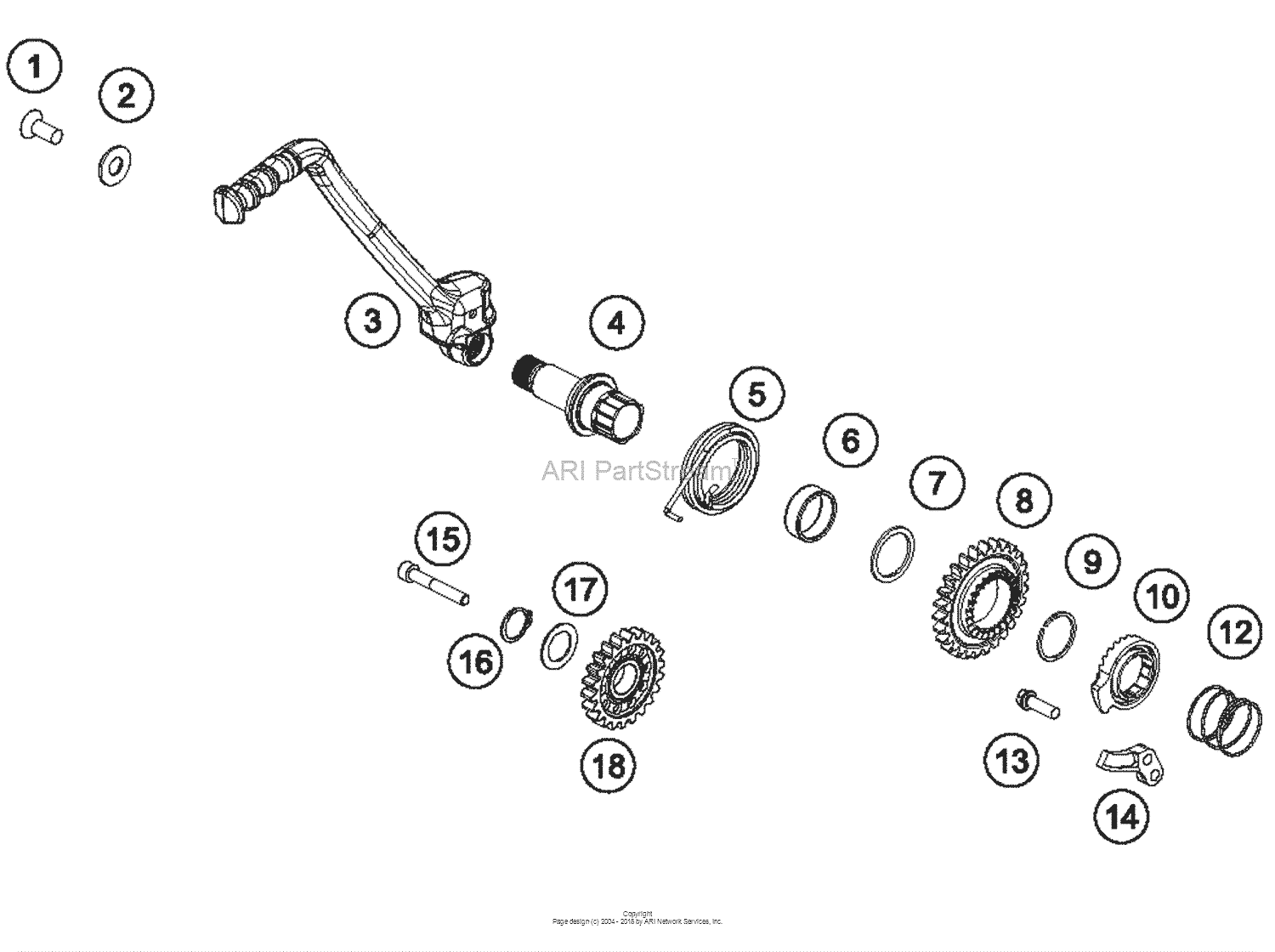

Kick Starter Diagram KTM 250 250 SX
- Year
- 2018
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0019080206S Flat head screw m. isa45 m8x20TX30 |
0019080206S |
US $3.26 |
||
|
2
|
2
54633037000 Washer 8mm galvanizedTX30 |
54633037000 |
US $5.42 |
||
|
3
|
3
79233070044 Kick Starter CplTX30 |
79233070044 |
US $118.30 |
||
|
4
|
4
79233050000 Kick Starter ShaftTX30 |
79233050000 |
US $79.58 |
||
|
5
|
5
50433054100 Kick Starter SpringTX30 |
50433054100 |
US $4.90 |
||
|
6
|
6
0405252910 Needle bear k 25x29x10TX30 |
0405252910 |
US $9.16 |
||
|
7
|
7
54833044000 Stop Disc 25X31X1,5TX30 |
54833044000 |
US $3.71 |
||
|
8
|
8
79233051027 Kick Starter Wheel 27ZTX30 |
79233051027 |
US $91.65 |
||
|
9
|
9
0417025000 Circlip Sw25TX30 |
0417025000 |
US $2.84 |
||
|
10
|
10
50433052000 Kick Starter RatchetTX30 |
50433052000 |
US $46.65 |
||
|
12
|
12
58033028000 Ratchet gear spring 1,2 mmTX30 |
58033028000 |
US $1.24 |
||
|
13
|
13
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
14
|
14
59033069000 Bump partTX30 |
59033069000 |
US $12.12 |
||
|
15
|
15
0912060406 Ah screw din0912 m 6x40TX30 |
0912060406 |
US $0.65 |
||
|
16
|
16
0471170010 Circlip Din0471-17X1TX30 |
0471170010 |
US $1 |
||
|
17
|
17
50333041000 Stop disc 17,2x26x1 bTX30 |
50333041000 |
US $1.94 |
||
|
18
|
18
79233053000 Kickstart Idler CplTX30 |
79233053000 |
US $78.74 |
