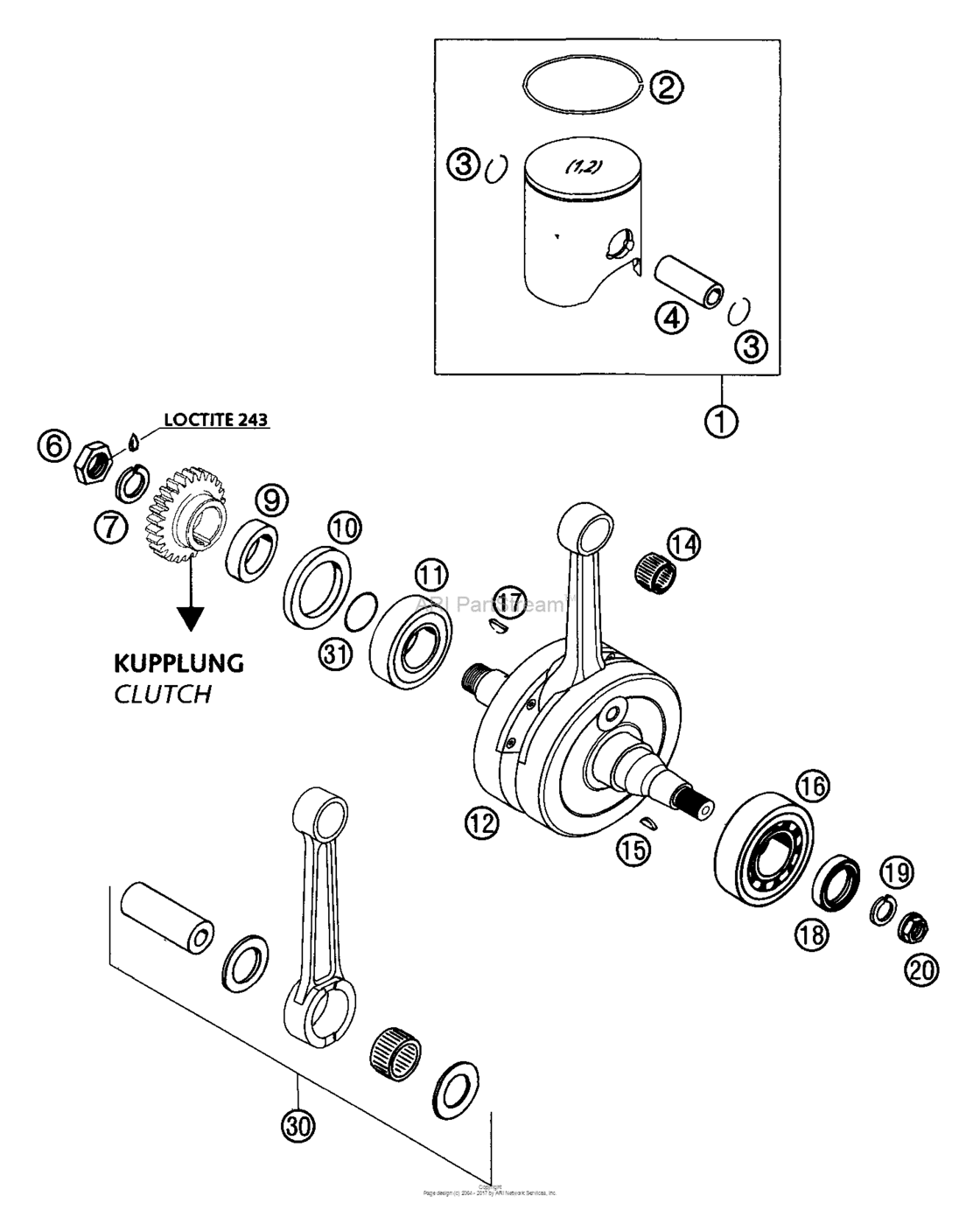

Crankshaft, Piston Diagram KTM 250 250 SX
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54830007000I
Piston I 250 2011
(As Required) |
54830007000I |
— | ||
| replacement | |||||
|
1
|
1
54830007300I Piston I 250 2011(As Required) |
54830007300I |
US $251.60 |
||
|
1
|
1
54830007000II
Piston Ii 250 2011
(As Required) |
54830007000II |
— | ||
| replacement | |||||
|
1
|
1
54830007300II Piston Ii 250 2011(As Required) |
54830007300II |
US $251.60 |
||
|
2
|
2
54830032000 Square ring 66,4x1 20(As Required) |
54830032000 |
US $41.80 |
||
| replacement | |||||
|
2
|
2
54630232000 Square ring 66,4mm 250 2000(As Required) |
54630232000 |
US $40.09 |
||
|
3
|
3
54030074000 Wire lock ring c18x1,5(As Required) |
54030074000 |
US $1.97 |
||
|
4
|
4
54630233000 Piston pin 18x55,8 250 2000(As Required) |
54630233000 |
US $23.07 |
||
|
6
|
6
54630029000 Hex.nut l/sh m18x1,5(As Required) |
54630029000 |
US $9.13 |
||
|
7
|
7
58132072000 Lock washer vsk 18(As Required) |
58132072000 |
US $1.09 |
||
|
9
|
9
54830016000 Spacer sleeve 28x38x10 03(As Required) |
54830016000 |
US $15.03 |
||
|
10
|
10
0760385273 Shaft seal ring 38x52x7btsl(As Required) |
0760385273 |
US $19.77 |
||
|
11
|
11
0625623204 Ball bearing 32x65x17 ntn(As Required) |
0625623204 |
US $56.02 |
||
|
12
|
12
54830018000 Crankshaft Cpl. 250 Sx(As Required) |
54830018000 |
US $901.99 |
||
| replacement | |||||
|
12
|
12
54830018400 Crankshaft Cpl. 250 Sx(As Required) |
54830018400 |
US $965.92 |
||
|
14
|
14
54430034000 Needle bearing kbk 18x22x20(As Required) |
54430034000 |
US $22.98 |
||
|
15
|
15
0888030050 Woodruff Key Din6888-3X5X13(As Required) |
0888030050 |
US $2.60 |
||
|
16
|
16
56530123200 Cylind.rol.bear. nj207et2xcs42(As Required) |
56530123200 |
US $114.95 |
||
|
17
|
17
6946005 Woodruff Key 5X6,5 Harded(As Required) |
6946005 |
US $0.92 |
||
|
18
|
18
0760253570 Shaft seal ring 25x35x7 btsl(As Required) |
0760253570 |
US $18.89 |
||
|
19
|
19
50230029012 Locking ring vsk 12(As Required) |
50230029012 |
US $2.19 |
||
|
20
|
20
49030021000 Collar nut m12x1 r/s(As Required) |
49030021000 |
US $10.57 |
||
|
30
|
30
54830015044
Con.rod Rep.set 250/300
(As Required) |
54830015044 |
— | ||
| replacement | |||||
|
30
|
30
54830015244 Con.rod Rep.set 250/300(As Required) |
54830015244 |
US $360.91 |
||
|
31
|
31
0770250015 O-ring 25,00x1,50 nbr 70(As Required) |
0770250015 |
US $0.24 |
||
