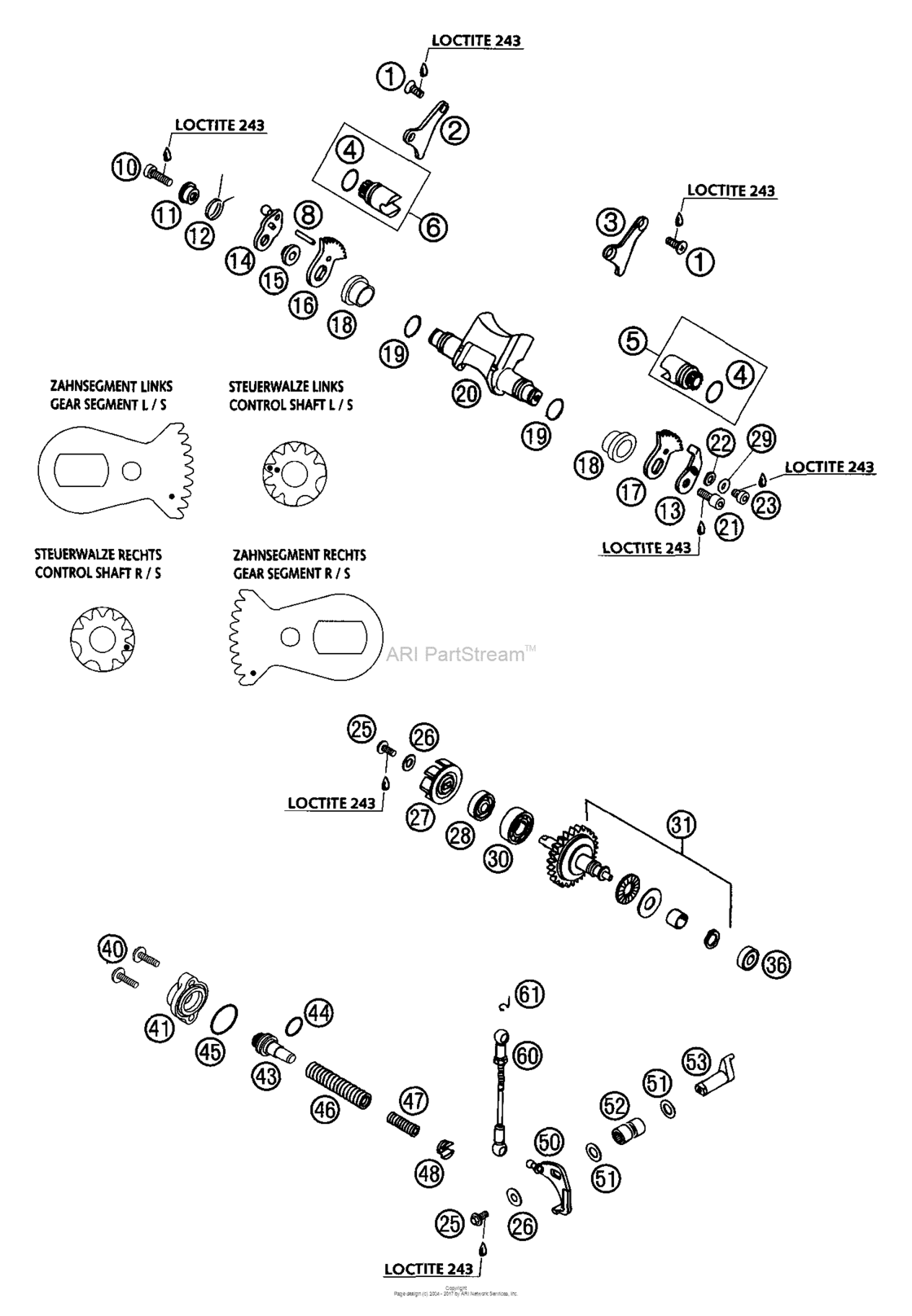

Exahust Control Diagram KTM 250 250 SX
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0965050103 Flat Head Screw Din0965-M 5X10(As Required) |
0965050103 |
US $2.09 |
||
|
2
|
2
54637062000 Retaining plate r/s 250(As Required) |
54637062000 |
US $7.46 |
||
|
3
|
3
54637063000 Retaining plate l/s 250(As Required) |
54637063000 |
US $7.02 |
||
|
4
|
4
0770160021 O-ring 16,00x2,00 viton(As Required) |
0770160021 |
US $1.87 |
||
|
5
|
5
54637061444 Control roller l/s "l" 250'96(As Required) |
54637061444 |
US $71.64 |
||
|
6
|
6
54637061544 Control roller cpl. r/s 250'96(As Required) |
54637061544 |
US $71.67 |
||
|
8
|
8
0007050160
Cylinder pin din 7-5x16mm (m6)
(As Required) |
0007050160 |
— | ||
|
10
|
10
0912060203 Ah Screw Din0912-M 6X20(As Required) |
0912060203 |
US $1.04 |
||
|
11
|
11
54637067000 Spring sleeve(As Required) |
54637067000 |
US $4.49 |
||
|
12
|
12
54637066000 Overload spring(As Required) |
54637066000 |
US $5.20 |
||
|
13
|
13
54637085300 Retain.plate control flap '92(As Required) |
54637085300 |
US $4.42 |
||
|
14
|
14
54637065000 Control lever with ball type(As Required) |
54637065000 |
US $21.32 |
||
|
15
|
15
54637068100 Bushing sleeve(As Required) |
54637068100 |
US $8.57 |
||
|
16
|
16
54637064000 Gear Segment R/s(As Required) |
54637064000 |
US $15.28 |
||
| replacement | |||||
|
16
|
16
54637064044
Gear segment cpl. right 94-05
(As Required) |
54637064044 |
— | ||
|
17
|
17
54637064050
Gear segment l/s 250
(As Required) |
54637064050 |
— | ||
|
18
|
18
54737019000 Bear. sleeve f.control flap'97(As Required) |
54737019000 |
US $7.16 |
||
|
19
|
19
0770150151 O-ring 15,00x1,50 viton(As Required) |
0770150151 |
US $2.60 |
||
|
20
|
20
54637220100
Control flap "2506" 250 2001
(As Required) |
54637220100 |
— | ||
|
21
|
21
0912060163 Ah Screw Din0912-M 6X16(As Required) |
0912060163 |
US $1.29 |
||
|
22
|
22
54637056100 Washer 6,5x11x2(As Required) |
54637056100 |
US $0.31 |
||
|
23
|
23
0984060063 Ah screw din7984-m 6x 6(As Required) |
0984060063 |
US $1.41 |
||
|
25
|
25
0014050123 Hh collar screw m 5x12 ws=6(As Required) |
0014050123 |
US $2.19 |
||
|
26
|
26
0349000050 Washer din7349-5x15x2(As Required) |
0349000050 |
US $0.65 |
||
|
27
|
27
54635005000 Water pump wheel(As Required) |
54635005000 |
US $5.66 |
||
|
28
|
28
0760082472 Shaft seal ring 8x24x7 a duo(As Required) |
0760082472 |
US $8.33 |
||
|
29
|
29
0137060003 Spring Washer Din0137-B 6(As Required) |
0137060003 |
US $0.43 |
||
|
30
|
30
0625160020 Ball bearing 16002 c3(As Required) |
0625160020 |
US $18.99 |
||
|
31
|
31
54837050044 Centrifugal timer cpl. 250/300(As Required) |
54837050044 |
US $267.78 |
||
|
36
|
36
54637098100 Ball bearing 626llbc3/5k(As Required) |
54637098100 |
US $12.56 |
||
|
40
|
40
0014050203 Hh collar screw m 5x20 ws=6(As Required) |
0014050203 |
US $2.79 |
||
|
41
|
41
54637070100 Cover lid 250-380'98(As Required) |
54637070100 |
US $17.03 |
||
|
43
|
43
54837075000 Spring guide 250/300(As Required) |
54837075000 |
US $12.99 |
||
|
44
|
44
0770021120 O-ring 12,37x2,62 nbr70(As Required) |
0770021120 |
US $2.43 |
||
|
45
|
45
0770240020 O-ring 24,00x2,00 nbr70(As Required) |
0770240020 |
US $1.45 |
||
|
46
|
46
54837069000 Adjust. spring 2003(As Required) |
54837069000 |
US $1.97 |
||
|
47
|
47
54837072000 Auxiliary spring soft, red(As Required) |
54837072000 |
US $1.43 |
||
|
48
|
48
54637071200 Spring insert(As Required) |
54637071200 |
US $9.13 |
||
|
50
|
50
54637055244 Angle lever cpl. '91(As Required) |
54637055244 |
US $35.33 |
||
|
51
|
51
0988101610 Shim washer din988 10x16x1(As Required) |
0988101610 |
US $1.51 |
||
|
52
|
52
54637096000 Needle sleeve hk 1010(As Required) |
54637096000 |
US $8.94 |
||
| replacement | |||||
|
52
|
52
0618101410 Needle sleeve hk 1010 10/14/10(As Required) |
0618101410 |
US $5.92 |
||
|
53
|
53
54837057000 Control lever 03(As Required) |
54837057000 |
US $34.97 |
||
|
60
|
60
54637095344 Connect.rod cpl. l=109,5mm '91(As Required) |
54637095344 |
US $40.17 |
||
|
61
|
61
50237195055 Securing din-71805-s-8(As Required) |
50237195055 |
US $1.51 |
||
