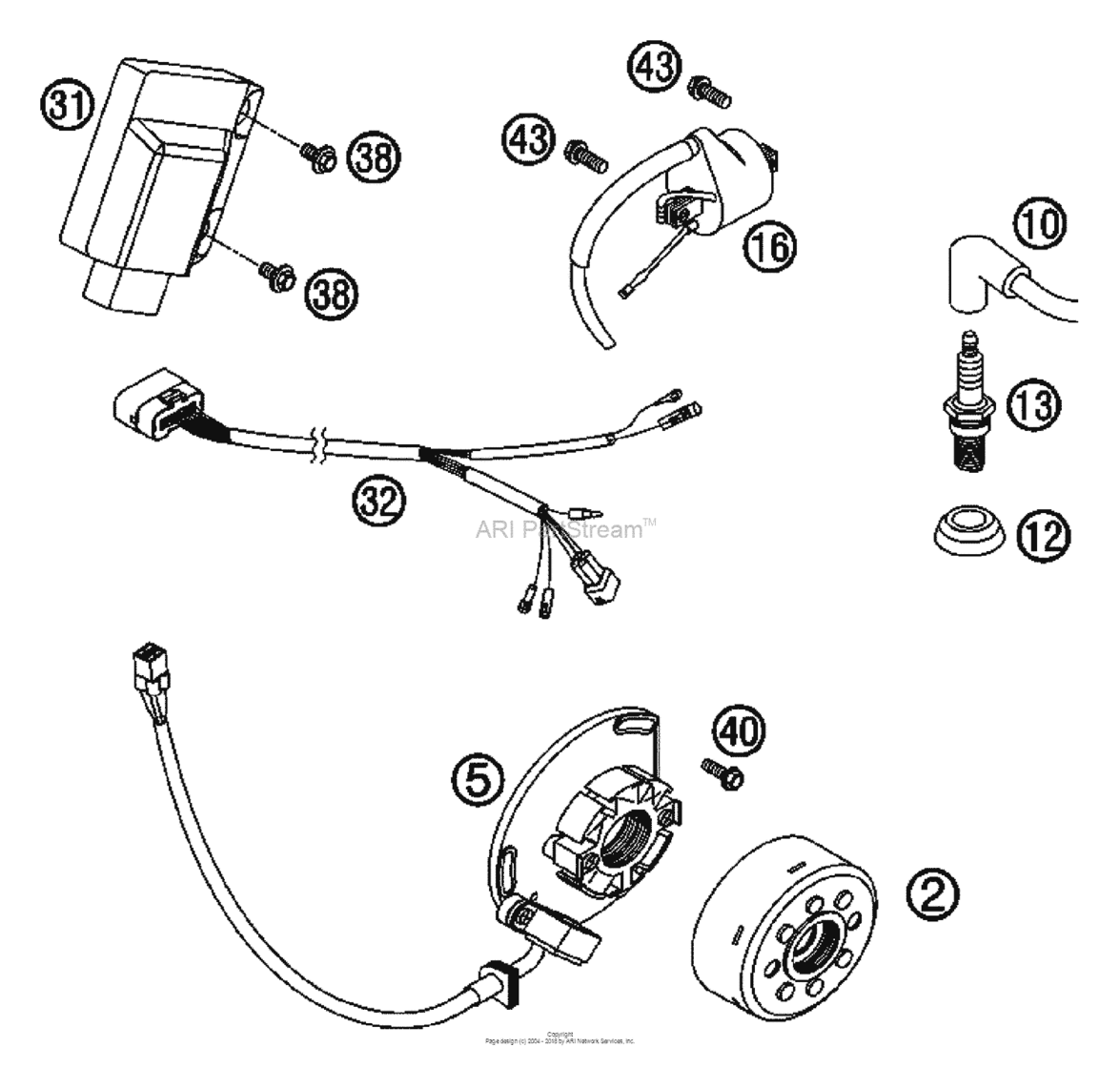

Ignition System Diagram KTM 250 250 SX
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
54739005000 Flywheel kokusan 2k-1/2k-4 '97FOR WINTER OPERATION |
54739005000 |
US $229.77 |
||
|
5
|
5
54839004000 Stator kokusan 2k-1 2006FOR WINTER OPERATION |
54839004000 |
US $208.64 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.04FOR WINTER OPERATION |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plugFOR WINTER OPERATION |
50231012000 |
US $3.91 |
||
|
13
|
13
54331093410 Spark plug ngk br8ecmFOR WINTER OPERATION |
54331093410 |
US $16.85 |
||
|
16
|
16
50339006000 Ignitioncoil Ig5128FOR WINTER OPERATION |
50339006000 |
US $77.81 |
||
| replacement | |||||
|
16
|
16
59039006000 Ignitioncoil "ig5128"FOR WINTER OPERATION |
59039006000 |
US $132.38 |
||
|
31
|
31
54839031800 Cdi unit 250 sx 07FOR WINTER OPERATION |
54839031800 |
US $300.70 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx07FOR WINTER OPERATION |
54839032300 |
US $67.86 |
||
|
38
|
38
0014060103
Hh Collar Screw M6X10 Tx30
FOR WINTER OPERATION |
0014060103 |
— | ||
| replacement | |||||
|
38
|
38
0024060106 Hh collar screw m6x10 tx30FOR WINTER OPERATION |
0024060106 |
US $4.35 |
||
|
40
|
40
0015050163 Hh Collar Screw M 5X16 Ws=8FOR WINTER OPERATION |
0015050163 |
US $1.31 |
||
|
43
|
43
0015060163 Hh Collar Screw M 6X16 Ws=8FOR WINTER OPERATION |
0015060163 |
US $2.23 |
||
