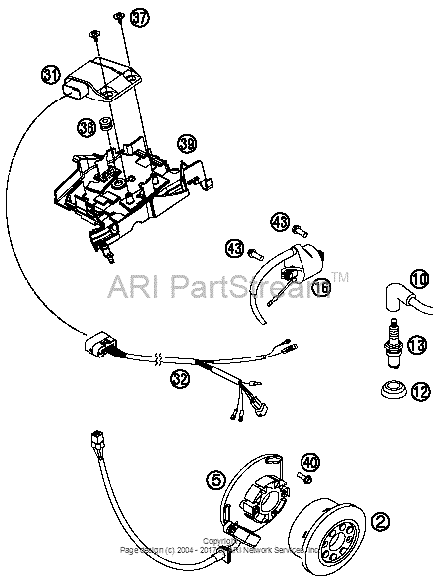

Ignition System Diagram KTM 250 250 SX
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
54739005000 Flywheel kokusan 2k-1/2k-4 '97'97 |
54739005000 |
US $229.77 |
||
|
5
|
5
54839004000 Stator kokusan 2k-1 20062006 |
54839004000 |
US $208.64 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.042006 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug2006 |
50231012000 |
US $3.91 |
||
|
13
|
13
54331093410 Spark plug ngk br8ecm2006 |
54331093410 |
US $16.85 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"2006 |
59039006000 |
US $132.38 |
||
|
31
|
31
54839131600 Elektronicbox 250Sx 142006 |
54839131600 |
US $303.43 |
||
|
32
|
32
54839032200 Wiring harness for cdi 2-st.072006 |
54839032200 |
US $68.10 |
||
|
36
|
36
58214069051 Rubber Grommet 16X10,8X3 022006 |
58214069051 |
US $4.52 |
||
|
37
|
37
0081645121 Ejot Delta Pt Screw 45X12-Z2006 |
0081645121 |
US $1.17 |
||
|
39
|
39
51511094100 Electric Case2006 |
51511094100 |
US $6.38 |
||
|
40
|
40
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
