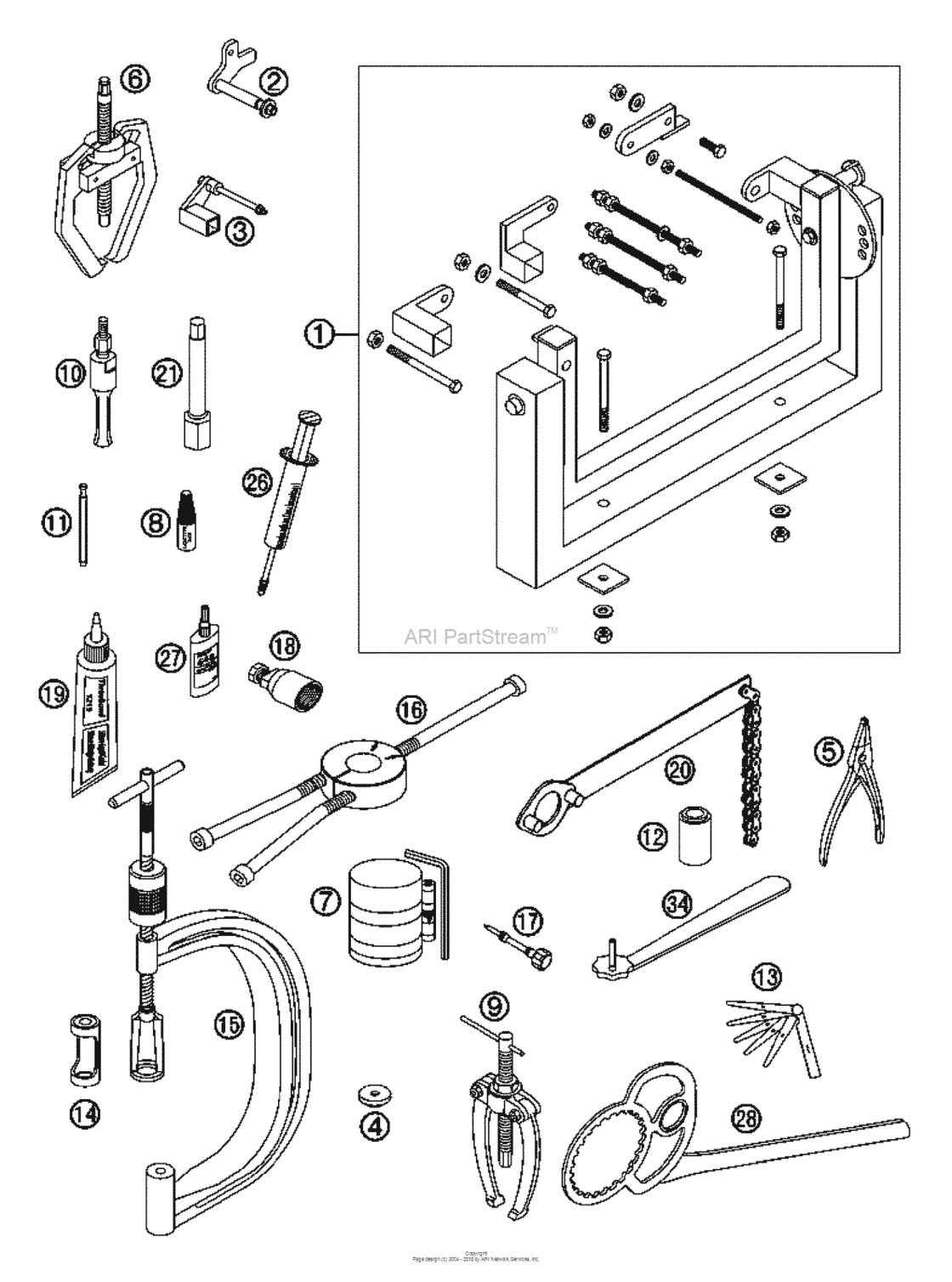

Special Tools Diagram KTM 250 250 SX-F
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56012001000 Assy support (without holder)TX30 |
56012001000 |
US $983.89 |
||
|
2
|
2
77029002000 Fixing arm frontTX30 |
77029002000 |
US $59.48 |
||
|
3
|
3
77029003000 Fixing arm rearTX30 |
77029003000 |
US $59.48 |
||
|
4
|
4
77029035000 Protection cap for camshaftTX30 |
77029035000 |
US $14.14 |
||
|
5
|
5
51012011000 Special circlip plierTX30 |
51012011000 |
US $154.77 |
||
|
6
|
6
59029033000 Extractor for timing gearTX30 |
59029033000 |
US $351.07 |
||
|
7
|
7
60029015000 Piston ring compressor cpl. 03TX30 |
60029015000 |
US $88.83 |
||
|
8
|
8
6899785 Loctite 243 Blue 6CcmTX30 |
6899785 |
US $40.61 |
||
|
9
|
9
15112017000 Bushing extractorTX30 |
15112017000 |
US $144.77 |
||
|
10
|
10
15112018000 Intern.bear.puller 12-16 mmTX30 |
15112018000 |
US $179.89 |
||
|
10
|
10
15112018100 Intern.bear.puller 18-23 mmTX30 |
15112018100 |
US $227.53 |
||
|
10
|
10
15112018200 Intern.bear.puller 5-7 mmTX30 |
15112018200 |
US $179.89 |
||
|
11
|
11
77029026000 Limit plug gauge f.valve guideTX30 |
77029026000 |
US $38.93 |
||
|
12
|
12
60029043040 Seal.ring press punch wat.pumpTX30 |
60029043040 |
US $17.92 |
||
|
13
|
13
59029041000 Feeler gauge set10,12,15,20,25TX30 |
59029041000 |
US $12.48 |
||
|
14
|
14
77029041000
Insert for valve spring lever
TX30 |
77029041000 |
— | ||
| replacement | |||||
|
14
|
14
77029041100 %INSERT FOR VALVE SPRING LEVERTX30 |
77029041100 |
US $90.53 |
||
|
15
|
15
59029019000 Valve spring leverTX30 |
59029019000 |
US $374.58 |
||
|
16
|
16
58429037037 Mounting tool inner ring nj206TX30 |
58429037037 |
US $130.32 |
||
|
17
|
17
59031017200
Superseded By 59031017300
TX30 |
59031017200 |
— | ||
|
18
|
18
58012009000 Flywheel ExtractorTX30 |
58012009000 |
US $41.55 |
||
|
19
|
19
309098 Silicon gasket three-bondTX30 |
309098 |
US $208.86 |
||
| replacement | |||||
|
19
|
19
58429059200 Loctite 5910 50MlTX30 |
58429059200 |
US $40.61 |
||
|
20
|
20
51012012000 Holding spanner for sprocketTX30 |
51012012000 |
US $79.95 |
||
|
21
|
21
60029073000 Spark plug wrench 16mm 1/2inchTX30 |
60029073000 |
US $80.90 |
||
|
26
|
26
50329050000 Vent Injektion Hydr. ClutchTX30 |
50329050000 |
US $50.78 |
||
|
27
|
27
58429059000
Loctite 648 Green 20Ml
TX30 |
58429059000 |
— | ||
|
28
|
28
50329003000 Hold. plate clutch 125/200 '98TX30 |
50329003000 |
US $71.72 |
||
|
34
|
34
59029034000
Wrench f.mixture control screw
TX30 |
59029034000 |
— | ||
| replacement | |||||
|
34
|
34
77329034000 Wrench f.mixture control screwTX30 |
77329034000 |
US $80.04 |
||
