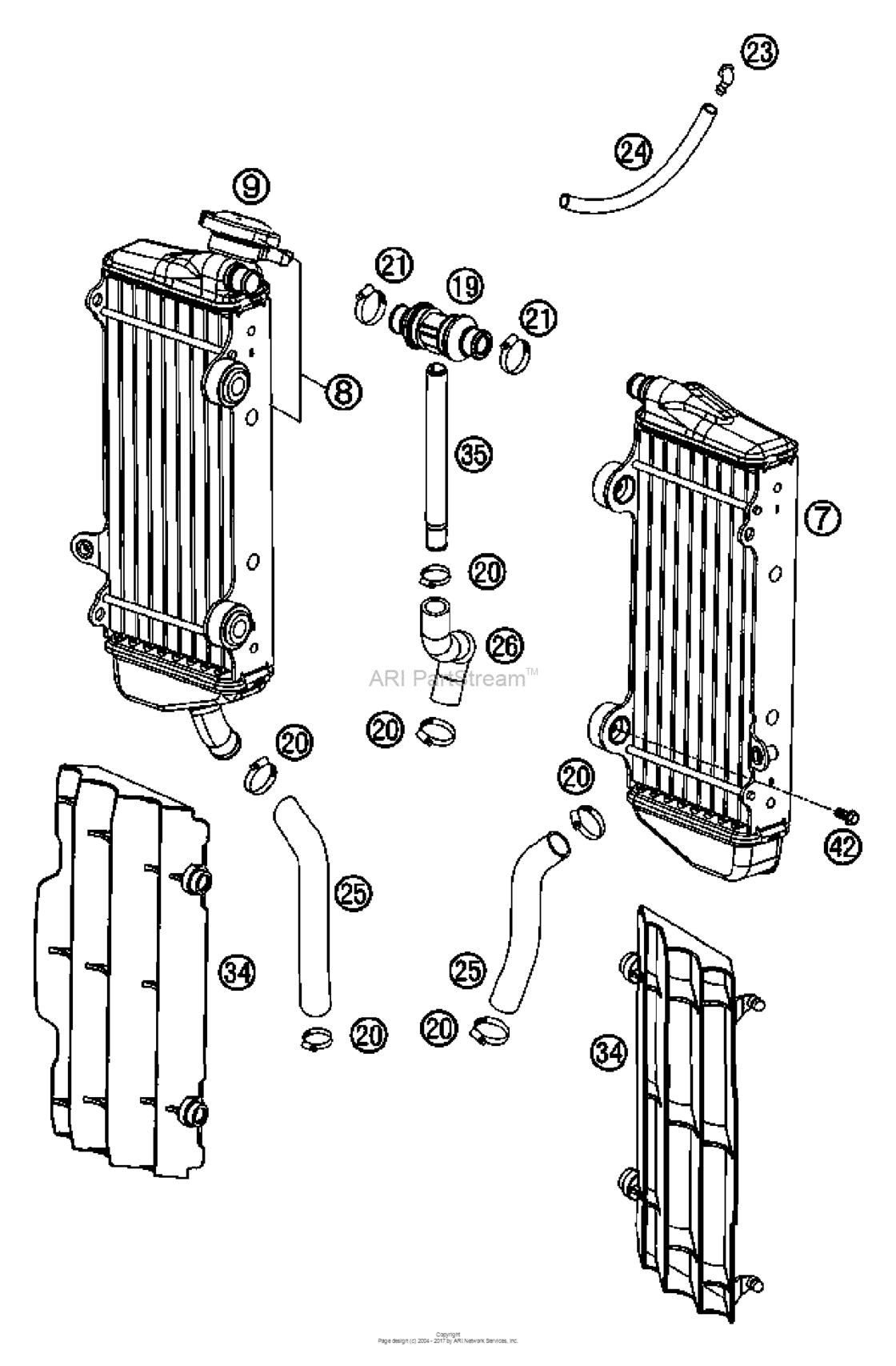

Cooling System Diagram KTM 250 250 SX-F
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77035007100
Radiator L/s 15623U
TX30 |
77035007100 |
— | ||
| replacement | |||||
|
7
|
7
77035007500 Radiator L/s 15623UTX30 |
77035007500 |
US $216.10 |
||
|
8
|
8
77335008000 Radiator r/s "45518u" 07TX30 |
77335008000 |
US $365.57 |
||
|
9
|
9
58035016000 Radiator Cap Small 20,3 PsiTX30 |
58035016000 |
US $33.10 |
||
|
19
|
19
77335026000 T-connector cpl. ┤07TX30 |
77335026000 |
US $49.61 |
||
|
20
|
20
10001020000 Hose Clamp 18-29TX30 |
10001020000 |
US $4.71 |
||
|
21
|
21
42013037200
Hose clamp gemi 12/22
TX30 |
42013037200 |
— | ||
| replacement | |||||
|
21
|
21
42013037400 Hose Clamp Norma 14/24TX30 |
42013037400 |
US $4.17 |
||
|
23
|
23
50303089000 Angle piece '97TX30 |
50303089000 |
US $4.52 |
||
|
24
|
24
31007107001 Pvc-Hose 6X9TX30 |
31007107001 |
US $5.85 |
||
| replacement | |||||
|
24
|
24
50335030001 Pvc-Hose 6X9TX30 |
50335030001 |
US $5.12 |
||
|
25
|
25
77035025000 Radiator hose l/s 250sxf 05TX30 |
77035025000 |
US $12.12 |
||
|
26
|
26
77335024000 Hose engine-radiator 07TX30 |
77335024000 |
US $10.93 |
||
|
34
|
34
77335034000
Radiator Prot. L/s+R/s 2007
TX30 |
77335034000 |
— | ||
|
35
|
35
77335073000 Hose connector 4 stroke 07TX30 |
77335073000 |
US $16.51 |
||
|
42
|
42
0015060123
Hh Collar Screw M 6X12 Ws=8
TX30 |
0015060123 |
— | ||
| replacement | |||||
|
42
|
42
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
