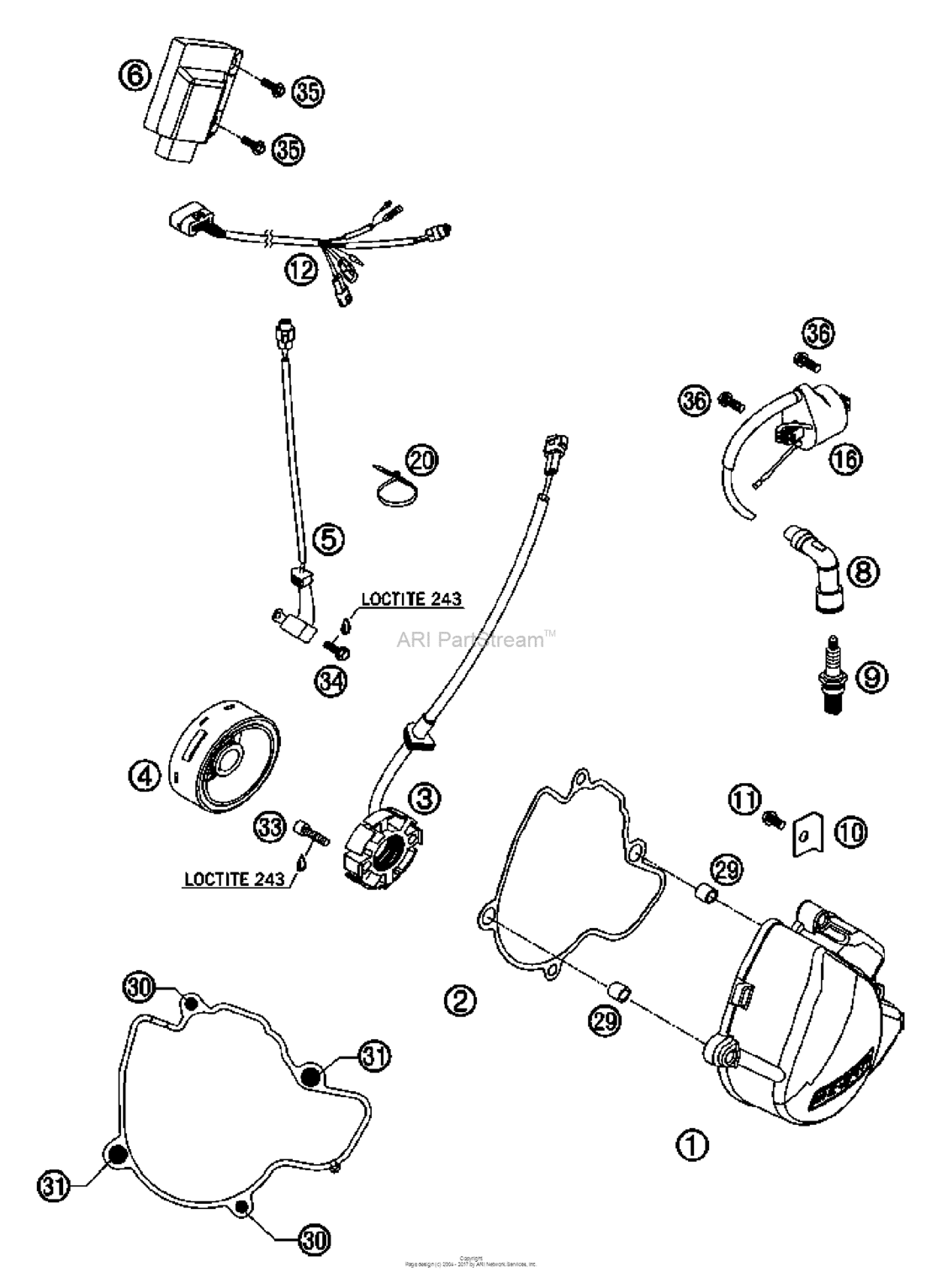

Ignition System Diagram KTM 250 250 SX-F
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SX-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77030002100 Ignition coverTX30 |
77030002100 |
US $60.08 |
||
|
2
|
2
77030040000 Ignition cover gasket 05TX30 |
77030040000 |
US $2.79 |
||
|
3
|
3
77039004000 Stator 4k3-a 05TX30 |
77039004000 |
US $214.56 |
||
|
4
|
4
77039005000 Flywheel 05TX30 |
77039005000 |
US $357.05 |
||
|
5
|
5
59039034000 Pulser coil kokusan 4k3-a/bTX30 |
59039034000 |
US $114.99 |
||
|
6
|
6
77039131200
Digitalbox 250 Sx-F 09
TX30 |
77039131200 |
— | ||
| replacement | |||||
|
6
|
6
77039031700 Digitalbox 250 sx-f 09TX30 |
77039031700 |
US $307.29 |
||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
TX30 |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug ConnectorTX30 |
77139090000 |
US $56.17 |
||
|
9
|
9
77039093000 Spark plug (NGK CR9EKB) -05TX30 |
77039093000 |
US $22.08 |
||
|
10
|
10
77030002050 Wire retaining bracket 06TX30 |
77030002050 |
US $3.71 |
||
|
11
|
11
0015060083
Hh collar screw m 6x8 ws=8
TX30 |
0015060083 |
— | ||
| replacement | |||||
|
11
|
11
0025060086 Hh collar screw m6x8 tx30TX30 |
0025060086 |
US $1.39 |
||
|
12
|
12
59439032100 Wiring harness for cdi exc 04TX30 |
59439032100 |
US $102.20 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"TX30 |
59039006000 |
US $132.38 |
||
|
20
|
20
44011076100 Cable tie 100/2,5mm blackTX30 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
20
|
20
44011076140 Cable tie 140/2,5mm blackTX30 |
44011076140 |
US $0.29 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 10TX30 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X10TX30 |
49030090100 |
US $2.60 |
||
|
30
|
30
0015060253
Hh Collar Screw M6X25 Tx30
TX30 |
0015060253 |
— | ||
| replacement | |||||
|
30
|
30
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
31
|
31
0015060303
Hh Collar Screw M6X30 Tx30
TX30 |
0015060303 |
— | ||
| replacement | |||||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
33
|
33
0912050253 Ah screw din0912-m 5x25TX30 |
0912050253 |
US $0.61 |
||
|
34
|
34
0015050163 Hh Collar Screw M 5X16 Ws=8TX30 |
0015050163 |
US $1.31 |
||
|
35
|
35
0014060203 Hh Collar Screw M 6X20 Ws=8TX30 |
0014060203 |
US $3.26 |
||
|
36
|
36
0015060163 Hh Collar Screw M 6X16 Ws=8TX30 |
0015060163 |
US $2.23 |
||
