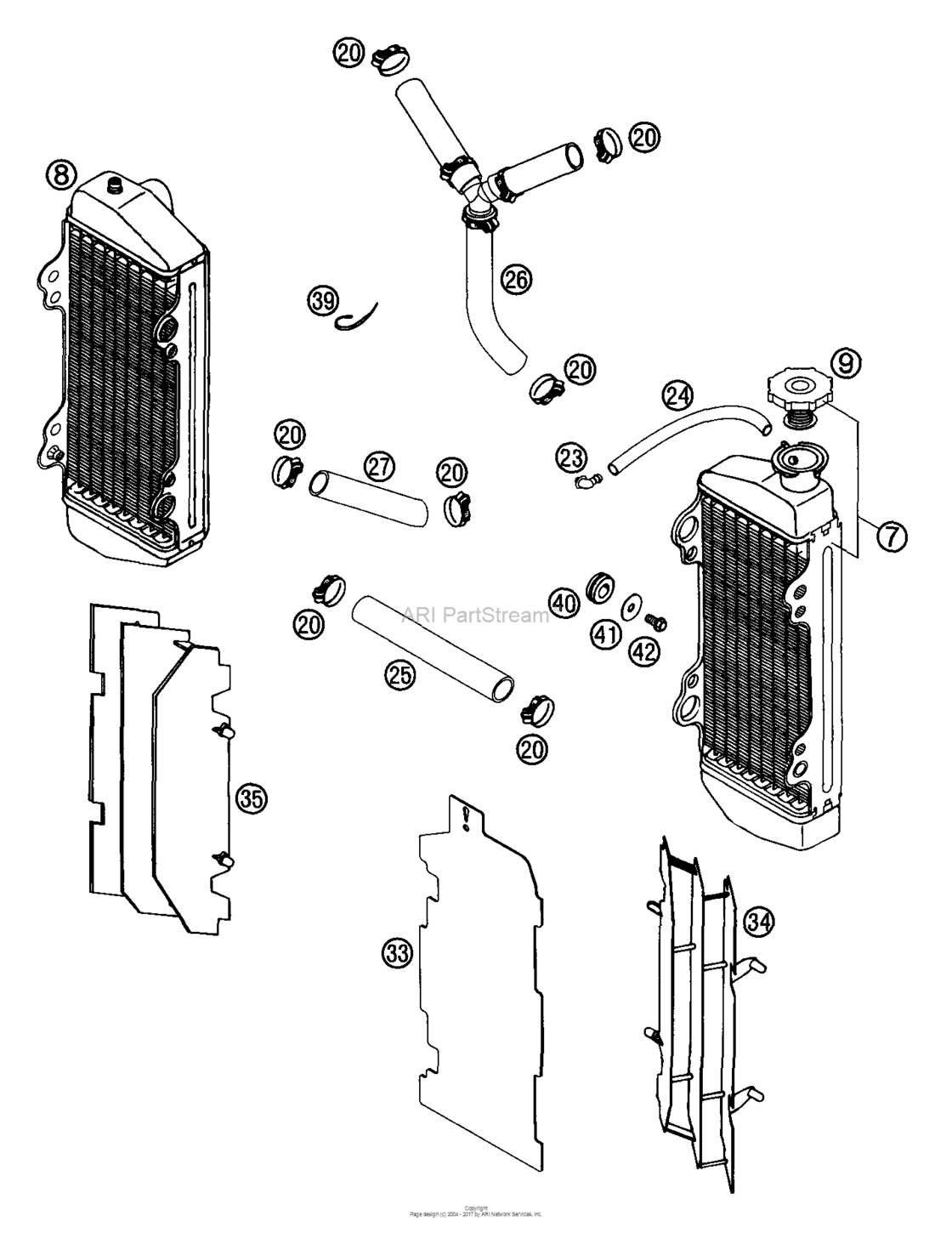

Cooling System Diagram KTM 250 250 SXS
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 SXS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
50335007000 Radiator l/s nature (45286)'98INCL. ALL INSERTS |
50335007000 |
US $442.61 |
||
| replacement | |||||
|
7
|
7
50335007100 RADIATOR L/SINCL. ALL INSERTS |
50335007100 |
US $433.89 |
||
|
8
|
8
50335008000
Radiator r/s nature (45285)'98
INCL. ALL INSERTS |
50335008000 |
— | ||
| replacement | |||||
|
8
|
8
50335008100 RadiatorINCL. ALL INSERTS |
50335008100 |
US $468.57 |
||
|
9
|
9
59035009000 Radiat.cap 20,3psi (1,4bar) 03INCL. ALL INSERTS |
59035009000 |
US $16.35 |
||
|
20
|
20
10001020000 Hose Clamp 18-29INCL. ALL INSERTS |
10001020000 |
US $4.71 |
||
|
23
|
23
50303089000 Angle piece '97INCL. ALL INSERTS |
50303089000 |
US $4.52 |
||
|
24
|
24
55007016001 Pvc-hose 7x10 per meterINCL. ALL INSERTS |
55007016001 |
US $5.98 |
||
|
25
|
25
56535025001 Radiator hose 18x25 per metreINCL. ALL INSERTS |
56535025001 |
US $42.30 |
||
|
26
|
26
54835026000 Radiator hose incl. y-part 03INCL. ALL INSERTS |
54835026000 |
US $32.95 |
||
|
27
|
27
54835027000 Radiator hose 18x25x130 mm 03INCL. ALL INSERTS |
54835027000 |
US $5.07 |
||
|
33
|
33
50335033000
Cover for radiator l/s black
INCL. ALL INSERTS |
50335033000 |
— | ||
|
34
|
34
54635034200 Radiator protection left '95INCL. ALL INSERTS |
54635034200 |
US $8.99 |
||
|
35
|
35
54635134200 Radiator protect.right '95INCL. ALL INSERTS |
54635134200 |
US $10.86 |
||
|
39
|
39
44011076200 Cable tie 200/3,6mm blackINCL. ALL INSERTS |
44011076200 |
US $0.39 |
||
|
40
|
40
41001052000 Rubber Sleeve D=12MmINCL. ALL INSERTS |
41001052000 |
US $5.46 |
||
|
41
|
41
0021060003 Washer Din9021-A 6,4INCL. ALL INSERTS |
0021060003 |
US $3.26 |
||
|
42
|
42
0015060123
Hh Collar Screw M 6X12 Ws=8
INCL. ALL INSERTS |
0015060123 |
— | ||
| replacement | |||||
|
42
|
42
0025060126 Hh collar screw m6x12 tx30INCL. ALL INSERTS |
0025060126 |
US $3.96 |
||
