Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 54830007200I Piston cpl. 250 2 rings 05 05	54830007200I	—
	replacement
1	1 54830007300I Piston I 250 2011 05	54830007300I	US $251.60
1	1 54830007200II Piston cpl. 250 2 rings 05 05	54830007200II	—
	replacement
1	1 54830007300II Piston Ii 250 2011 05	54830007300II	US $251.60
3	3 54030074000 Wire lock ring c18x1,5 05	54030074000	US $1.97
4	4 54830233000 Piston Pin 05	54830233000	US $38.39
6	6 54630029000 Hex.nut l/sh m18x1,5 05	54630029000	US $9.13
7	7 58132072000 Lock washer vsk 18 05	58132072000	US $1.09
9	9 54830016000 Spacer sleeve 28x38x10 03 03	54830016000	US $15.03
10	10 0760385273 Shaft seal ring 38x52x7btsl 03	0760385273	US $19.77
11	11 0625623204 Ball bearing 32x65x17 ntn 03	0625623204	US $56.02
13	13 54830118200 Crankshaft 250/300 exc-mxc 08 08	54830118200	US $670
	replacement
13	13 54830118300 Crankshaft Cpl. 250 Exc 08	54830118300	US $617.34
14	14 54430034000 Needle bearing kbk 18x22x20 08	54430034000	US $22.98
15	15 0888030050 Woodruff Key Din6888-3X5X13 08	0888030050	US $2.60
16	16 56530123200 Cylind.rol.bear. nj207et2xcs42 08	56530123200	US $114.95
17	17 6946005 Woodruff Key 5X6,5 Harded 08	6946005	US $0.92
18	18 0760253570 Shaft seal ring 25x35x7 btsl 08	0760253570	US $18.89
19	19 50230029012 Locking ring vsk 12 08	50230029012	US $2.19
20	20 49030021000 Collar nut m12x1 r/s 08	49030021000	US $10.57
30	30 54830015144 Conrod rep. kit 250/300 08	54830015144	—
	replacement
30	30 54830015244 Con.rod Rep.set 250/300 08	54830015244	US $360.91
31	31 0770250015 O-ring 25,00x1,50 nbr 70 08	0770250015	US $0.24
32	32 54630232000 Square ring 66,4mm 250 2000 2000	54630232000	US $40.09

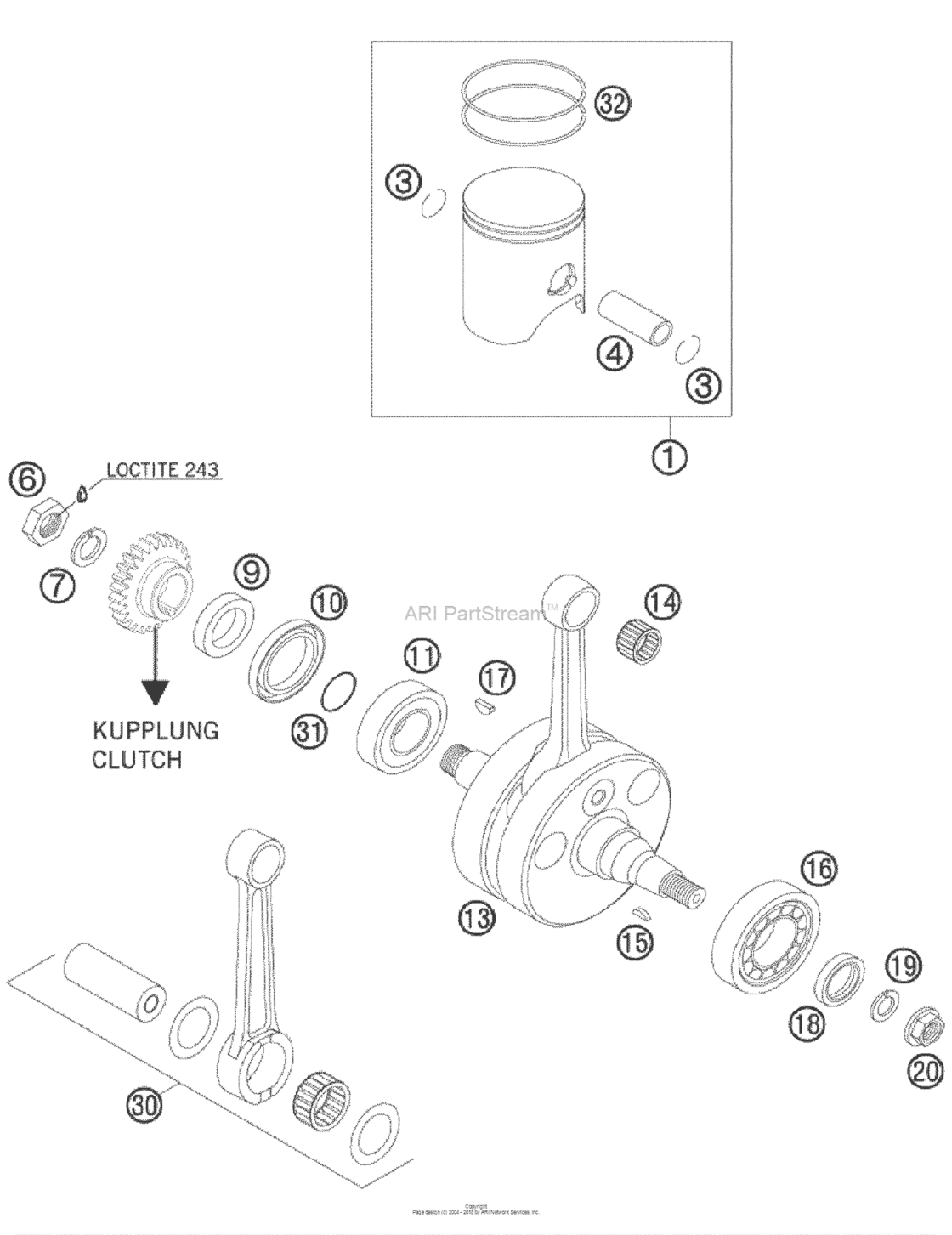

Crankshaft, Piston Diagram KTM 250 250 XC US/EU 18084043-939596

Crankshaft, Piston Diagram KTM 250 250 XC US/EU 18084043-939596
