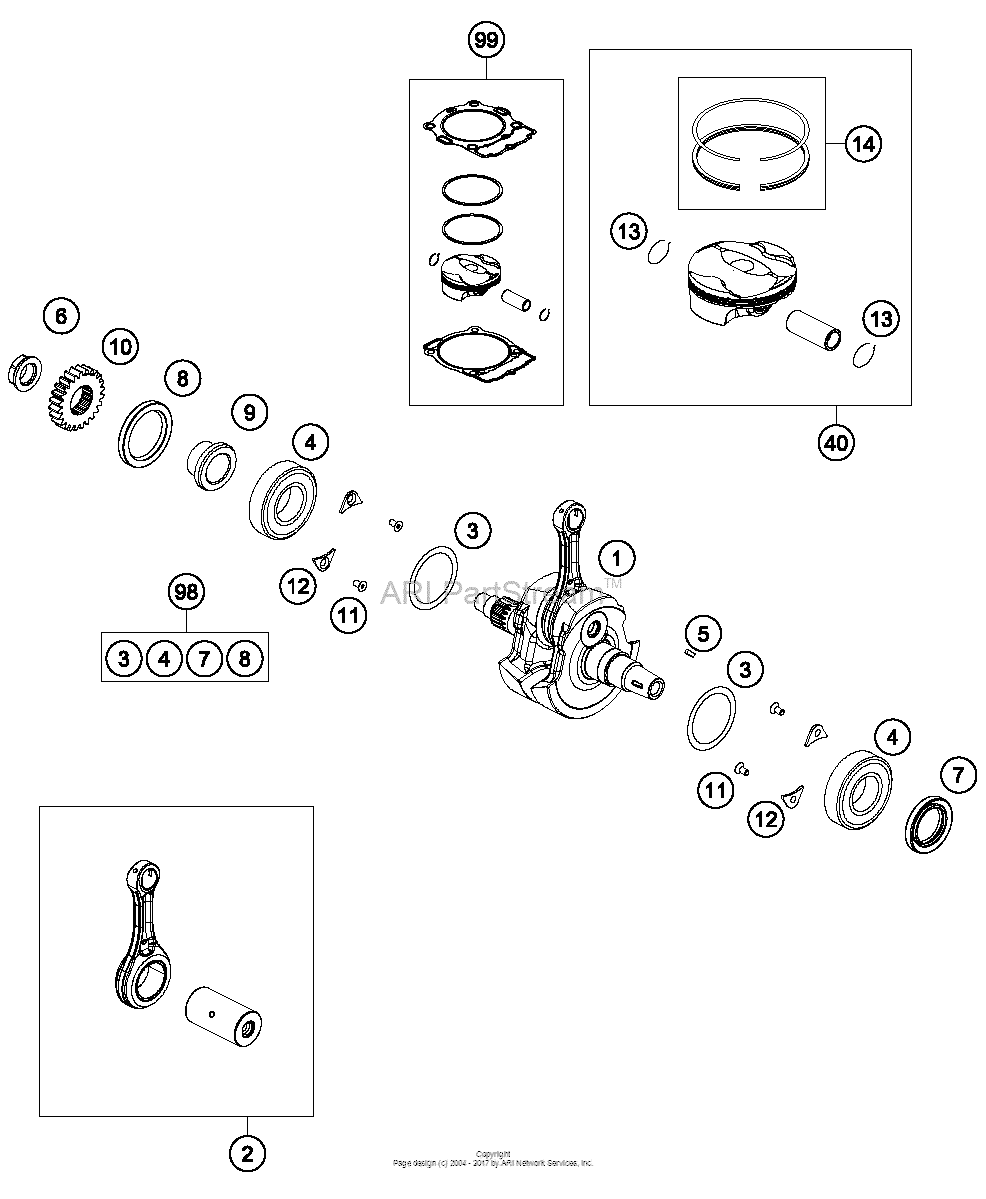

Crankshaft, Piston Diagram KTM 250 250 XC-F
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79030018000
Crankshaft Cpl
2016 |
79030018000 |
— | ||
| replacement | |||||
|
1
|
1
79030018100 Crankshaft Cpl2016 |
79030018100 |
US $1,129.29 |
||
|
2
|
2
79030015044
Conrod Repair Kit
2016 |
79030015044 |
— | ||
| replacement | |||||
|
2
|
2
79030015144 Conrod Repair Kit2016 |
79030015144 |
US $594.29 |
||
|
3
|
3
0988324510 Thrust Washer 988St 32X0,1As Required |
0988324510 |
US $0.27 |
||
|
3
|
3
0988324515 Thrust Washer 988St 32X0,15As Required |
0988324515 |
US $0.27 |
||
|
3
|
3
0988324530 Thrust Washer 988St 32X0,30As Required |
0988324530 |
US $0.22 |
||
|
4
|
4
77330082200 Bearing Nj 206 Ecp/hn3C4Hva624As Required |
77330082200 |
US $85.58 |
||
|
5
|
5
0888030037 Woodruff key din6888-3x3,7As Required |
0888030037 |
US $0.58 |
||
|
6
|
6
77230029000 Nut primary wheelAs Required |
77230029000 |
US $14.99 |
||
| replacement | |||||
|
6
|
6
0910001801000S Nut primary wheelAs Required |
0910001801000S |
US $14.99 |
||
|
7
|
7
0760304760 Shaft Seal Ring A30X47X6 VitonAs Required |
0760304760 |
US $15.08 |
||
|
8
|
8
0760405561 Shaft Seal Ring A 40X55X6 VAs Required |
0760405561 |
US $15.54 |
||
|
9
|
9
77232022000 Spacer Bushing Primary GearAs Required |
77232022000 |
US $22.27 |
||
|
10
|
10
79232023024 Primary Gear 24TAs Required |
79232023024 |
US $96.56 |
||
|
11
|
11
0019050121S Int. Torx Flat Head M5X12 T25As Required |
0019050121S |
US $0.66 |
||
|
12
|
12
75030085000 Retaining plate f. cs bearingAs Required |
75030085000 |
US $4.08 |
||
|
13
|
13
79030274000 Circlip Piston PinAs Required |
79030274000 |
US $17.10 |
||
|
14
|
14
79030231044 Piston Ring SetAs Required |
79030231044 |
US $137.62 |
||
|
40
|
40
79030207000I
Piston I Cpl. 250
As Required |
79030207000I |
— | ||
|
40
|
40
79030207000II
Piston Ii Cpl. 250
As Required |
79030207000II |
— | ||
|
98
|
98
00050002316 Crankshaft Rep. KitAs Required |
00050002316 |
US $111.69 |
||
|
99
|
99
00050000229 Piston Kit IAs Required |
00050000229 |
US $453.07 |
||
|
99
|
99
00050000230 Piston Kit IiAs Required |
00050000230 |
US $453.07 |
||
