Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 79036020044 Cylinder Head Cpl As Required	79036020044	US $793.36
2	2 79030036086 Cylinder Head Gasket As Required	79030036086	US $103.34
3	3 7773605200033 Valve Cover As Required	7773605200033	US $49.18
4	4 77736053000 Valve Cover Gasket As Required	77736053000	US $19.86
5	5 77336054150 Valve cover screw As Required	77336054150	US $6.61
6	6 77036054150 Rubber Gasket For Screw As Required	77036054150	—
	replacement
6	6 77036054250 Rubber Gasket For Screw As Required	77036054250	US $5.20
7	7 77136026001 Valve Guide Outlet As Required	77136026001	US $35.22
8	8 77736075000 Insert Spark-Plug Shaft As Required	77736075000	US $17.61
9	9 77336053050 Gasket spark-plug shaft As Required	77336053050	US $7.45
10	10 0770260015 O-ring 1,5x26 As Required	0770260015	US $3.89
11	11 77330067142 Hh collar screw m7x1x42 As Required	77330067142	US $2.01
12	12 07700900151 O-Ring 9X1,5 V80 Sh As Required	07700900151	US $1.41
13	13 77236080100 Screw Plug As Required	77236080100	US $2.69
14	14 77336088210 Collar nut m10x1,25 sw13 As Required	77336088210	US $1.56
15	15 77336089010 Washer 19x10,5x2,5 As Required	77336089010	US $3.13
16	16 79230044000 Stud Bolt M10X1,25 As Required	79230044000	US $10.34
17	17 60030063050 Oil jet 50 05 As Required	60030063050	US $7.92
21	21 79236044100 Rubber Cup As Required	79236044100	US $39.05
22	22 61036047000 Hose clamp gemi 63mm 05 As Required	61036047000	US $7.46
23	23 77036090000 Dowel(bush bridge)7/9/8 05 As Required	77036090000	US $4
25	25 79435047000 Temperatur Sensor Water As Required	79435047000	US $21.81
26	26 59030296000 Screw plug As Required	59030296000	US $5.49
27	27 58030010200 Screw In Nozzle M20X1,5 As Required	58030010200	US $8.82
28	28 77236041000 Gasket Exhaust Flange As Required	77236041000	US $11.71
29	29 77736039000 Engineflange As Required	77736039000	US $40.21
30	30 0025060166S Hh collar screw m6x16 isa 30 As Required	0025060166S	US $1.16
31	31 77336088106 Collar nut m6x1 sw8 As Required	77336088106	US $12.50
32	32 0125060003 Washer Din0125-A 6,4 As Required	0125060003	US $0.37
33	33 79230043000 Stud Bolt M6 As Required	79230043000	US $7.19
34	34 79030087000 Engine Breather Tube As Required	79030087000	US $32.13
35	35 58431082300 Clamp Ydnac 10173 (18Mm) As Required	58431082300	US $1.05
40	40 77236048000 Hose Clamp Gemi 58Mm As Required	77236048000	US $12.09

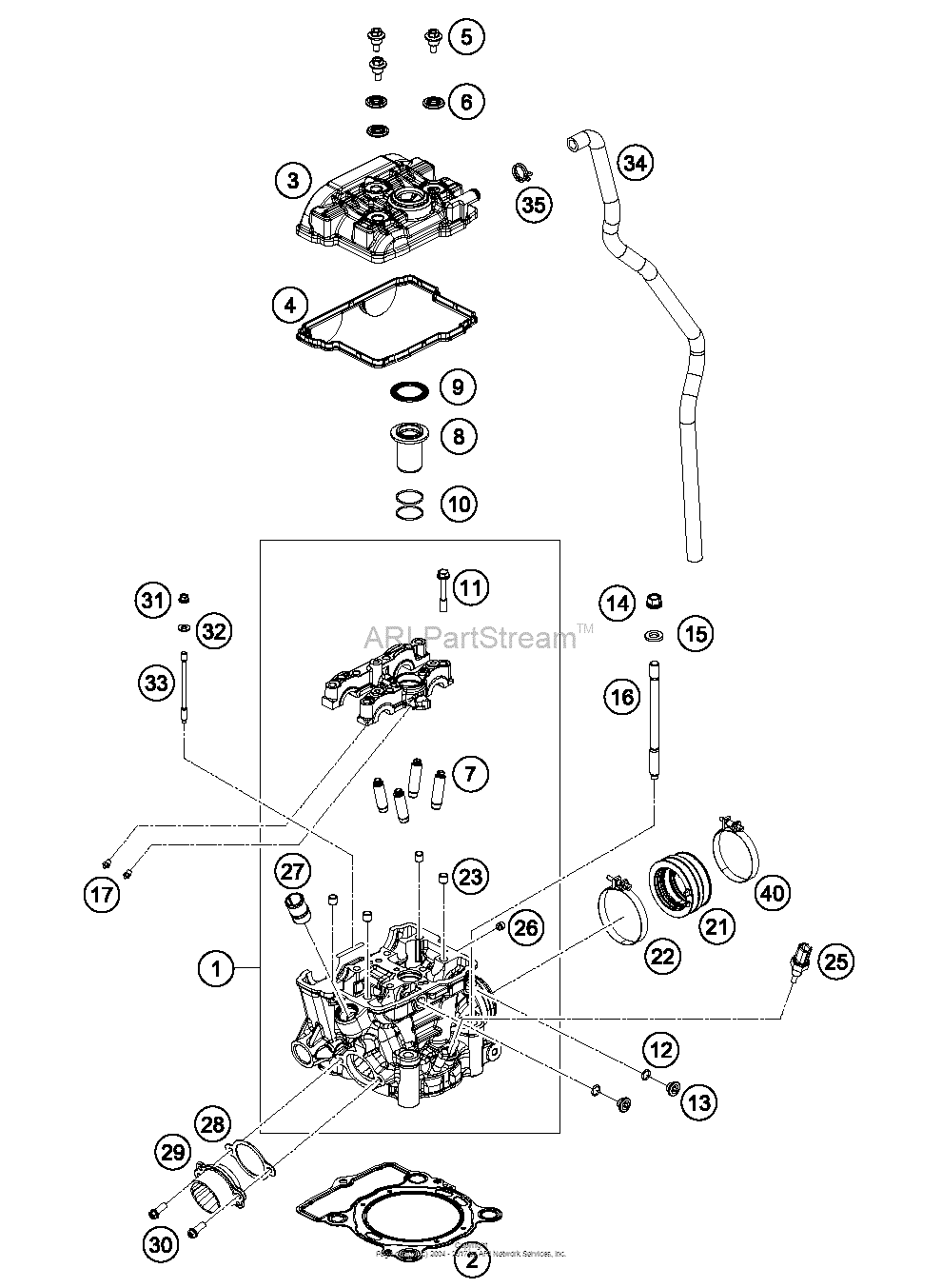

Cylinder Head Diagram KTM 250 250 XC-F US/EU 18084247-939607

Cylinder Head Diagram KTM 250 250 XC-F US/EU 18084247-939607
