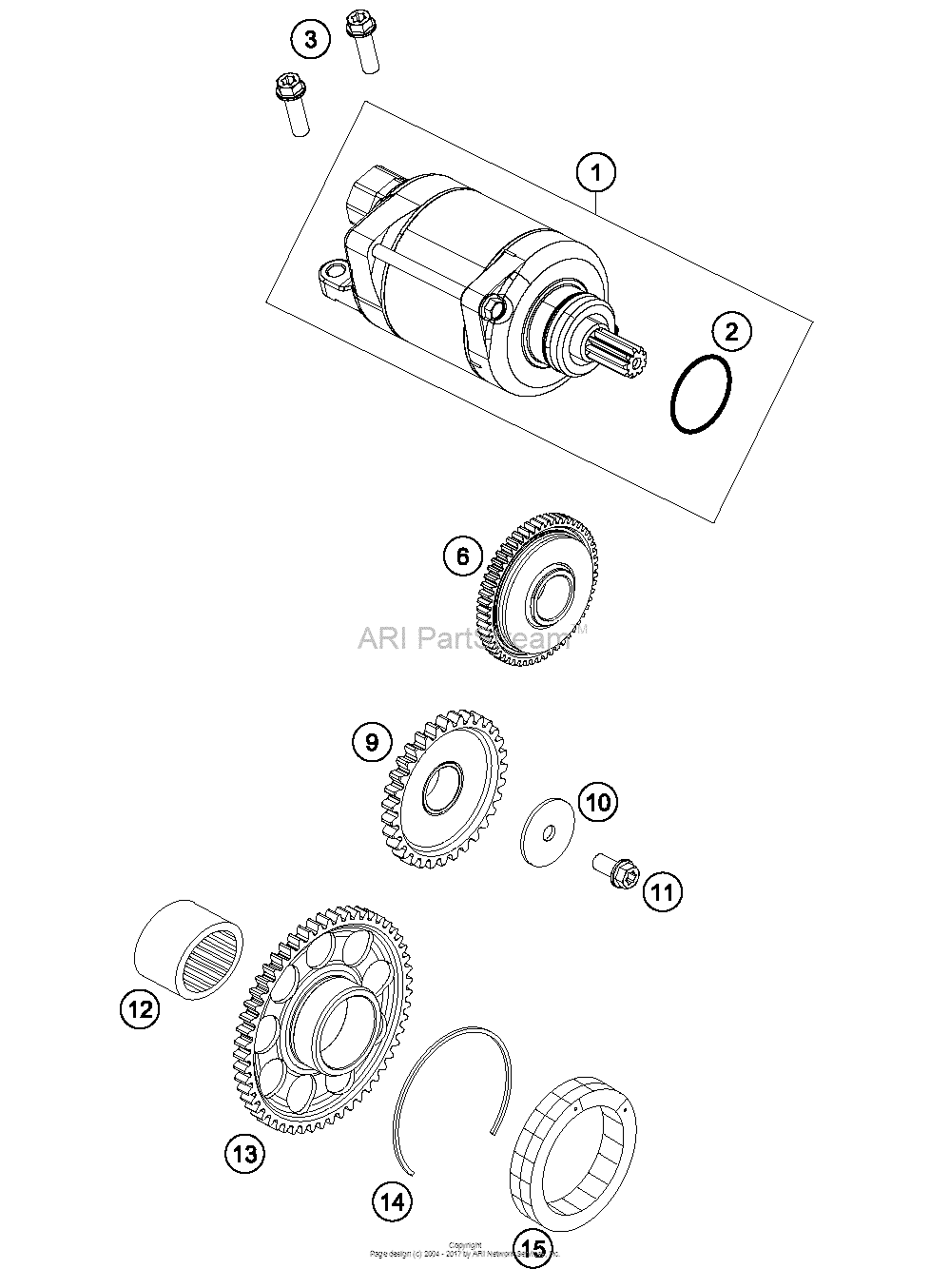

Electric Starter Diagram KTM 250 250 XC-F
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79240001000 E-Starter Engine CplAs Required |
79240001000 |
US $242.74 |
||
|
2
|
2
0770250030 O-ring 25,00x3,00 nbr 70As Required |
0770250030 |
US $4.35 |
||
|
3
|
3
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
6
|
6
79240016000 Torque LimiterTX30 |
79240016000 |
US $147.97 |
||
|
9
|
9
79240022000 Intermediate Starting GearTX30 |
79240022000 |
US $56.90 |
||
|
10
|
10
79240017000 Stop Disc 6X26X1,5TX30 |
79240017000 |
US $2.60 |
||
|
11
|
11
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
12
|
12
0618253216 Needle Bush Hk2516 25/32/16 02TX30 |
0618253216 |
US $12.75 |
||
|
13
|
13
79240020000
Free Wheel Gear
TX30 |
79240020000 |
— | ||
| replacement | |||||
|
13
|
13
79240020033 Free Wheel GearTX30 |
79240020033 |
US $67.37 |
||
|
14
|
14
0472057150 Circlip Din0472-57X1,50TX30 |
0472057150 |
US $2.64 |
||
|
15
|
15
79240026000 FreewheelTX30 |
79240026000 |
US $125.51 |
||
