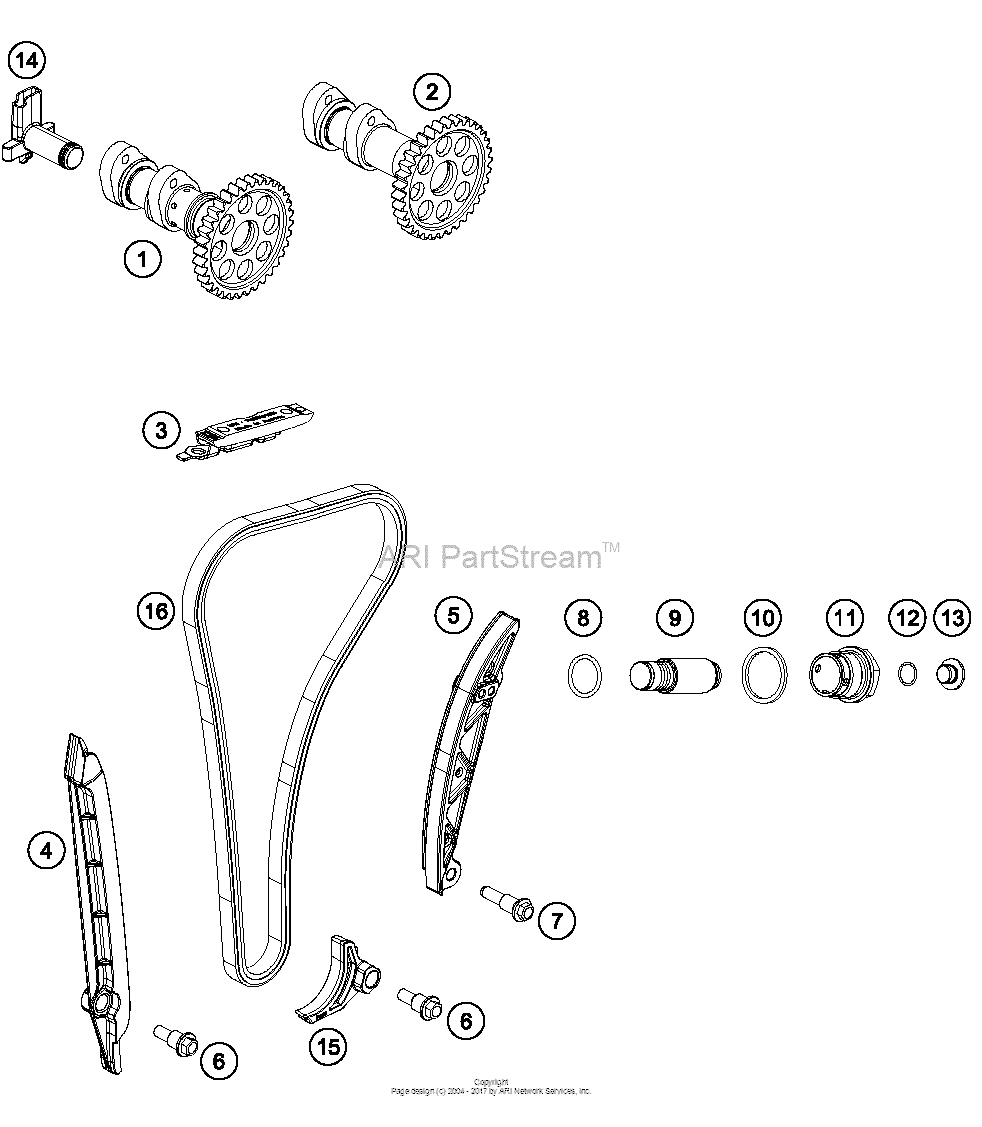

Timing Drive Diagram KTM 250 250 XC-F
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79036009000 Camshaft IntakeTX30 |
79036009000 |
US $227.48 |
||
|
2
|
2
79036010000 Camshaft ExhaustTX30 |
79036010000 |
US $187.78 |
||
|
3
|
3
79236004000 Timing Chain Guide TopTX30 |
79236004000 |
US $39.49 |
||
|
4
|
4
79236001000 Guide RailTX30 |
79236001000 |
US $10.57 |
||
|
5
|
5
79236002000 Tensioning RailTX30 |
79236002000 |
US $21.54 |
||
|
6
|
6
77236001160 Bushing Screw M6TX30 |
77236001160 |
US $4.34 |
||
|
7
|
7
77236002160 Bushing Screw M8TX30 |
77236002160 |
US $2.28 |
||
|
8
|
8
0770180020 O-ring 18,00x2,00 nbr 70TX30 |
0770180020 |
US $2.64 |
||
|
9
|
9
77036003000 Chain adjuster hyd. 05TX30 |
77036003000 |
US $95.13 |
||
|
10
|
10
0603242920 Cu seal-ring din7603 a24x29x2TX30 |
0603242920 |
US $2.13 |
||
|
11
|
11
77336008000 Holding bolt m24x1,5TX30 |
77336008000 |
US $17.48 |
||
|
12
|
12
0770010010 O-ring 10,00x1,00 nbr 70 shTX30 |
0770010010 |
US $2.24 |
||
|
13
|
13
77236080000 Screw PlugTX30 |
77236080000 |
US $6.95 |
||
| replacement | |||||
|
13
|
13
77236080100 Screw PlugTX30 |
77236080100 |
US $2.69 |
||
|
14
|
14
77236081000 Angle piece f. breather systemTX30 |
77236081000 |
US $4.49 |
||
|
15
|
15
77236005000 Securing protectionTX30 |
77236005000 |
US $3.38 |
||
|
16
|
16
79236013100 Timing ChainTX30 |
79236013100 |
US $133.99 |
||
