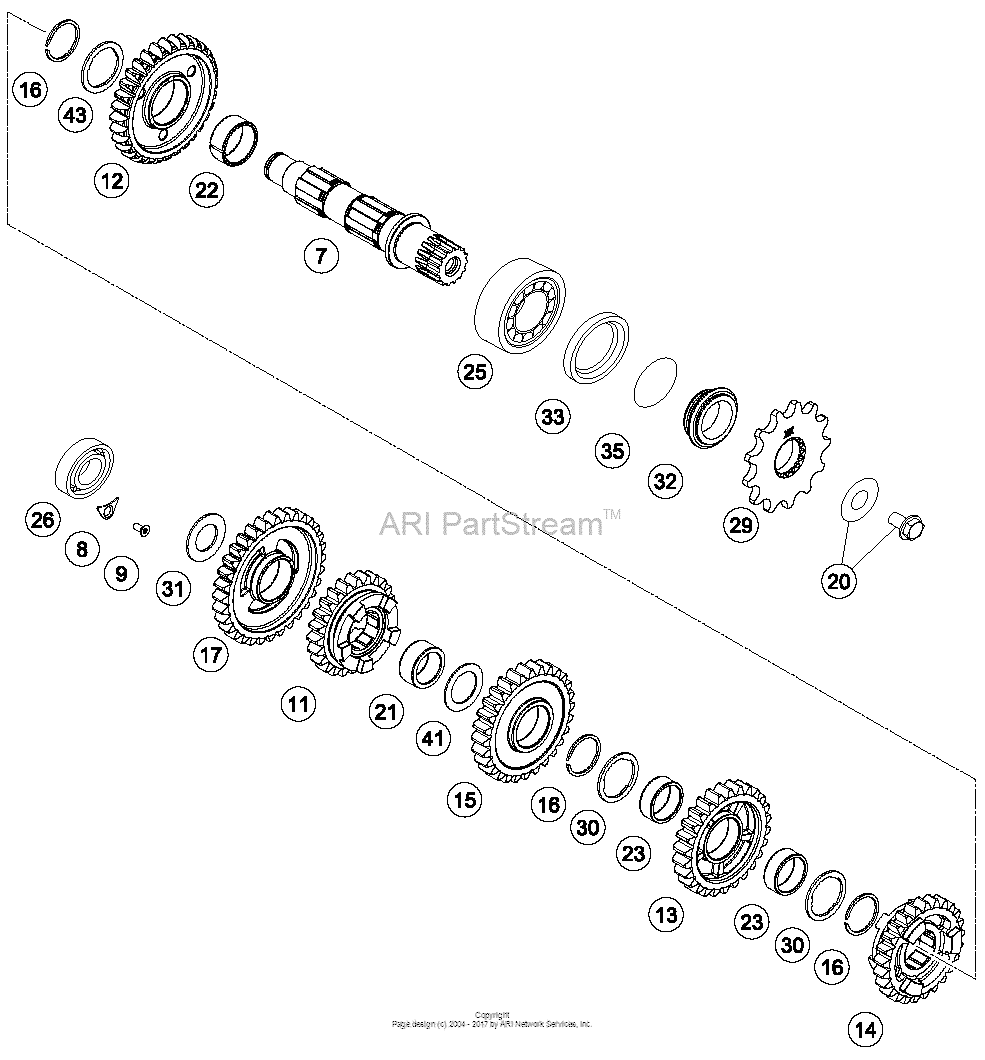

Transmission Ii - Countershaft Diagram KTM 250 250 XC-F
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77733110000 CountershaftTX30 |
77733110000 |
US $124.46 |
||
|
8
|
8
75030085000 Retaining plate f. cs bearingTX30 |
75030085000 |
US $4.08 |
||
|
9
|
9
0019050121S Int. Torx Flat Head M5X12 T25TX30 |
0019050121S |
US $0.66 |
||
|
11
|
11
72033016000 Sliding Gear 6Th Gear, 20TTX30 |
72033016000 |
US $102.39 |
||
|
12
|
12
77733112000 Idler Gear 2Nd G. T=30TX30 |
77733112000 |
US $74.99 |
||
|
13
|
13
77733114100 Idler Gear 4.g. Z=28TX30 |
77733114100 |
US $72.54 |
||
|
14
|
14
77733115100 Sliding Gear 5.g.,z=23TX30 |
77733115100 |
US $97.39 |
||
|
15
|
15
77733113100 Idler Gear 3.g. Z=24TX30 |
77733113100 |
US $73.88 |
||
|
16
|
16
0417024000 Circlip Ws24TX30 |
0417024000 |
US $0.95 |
||
|
17
|
17
77733011000 Idler Gear 1St G. T=32TX30 |
77733011000 |
US $88.33 |
||
|
20
|
20
59033034044 Screw 10.9+Spring WasherTX30 |
59033034044 |
US $9.01 |
||
|
21
|
21
0405202612 Needle bearing k 20x26x12TX30 |
0405202612 |
US $10.90 |
||
|
22
|
22
0405242812 Neddle bear. k24x28x11,9 div.TX30 |
0405242812 |
US $6.12 |
||
|
23
|
23
0405222611 Needle bear.k 22x26x10 dividedTX30 |
0405222611 |
US $12.41 |
||
|
25
|
25
49030023000 Cyl.roll Bearing Nj205TX30 |
49030023000 |
US $67.86 |
||
|
26
|
26
0625062035 Ball bearing 6203 jr2 c3TX30 |
0625062035 |
US $12.95 |
||
|
29
|
29
79233029013 Sprocket 13TAs Required |
79233029013 |
US $33.08 |
||
|
29
|
29
79233029014 Sprocket 14TAs Required |
79233029014 |
US $34.80 |
||
|
30
|
30
77733043000 Stop Disc 23,4X31X1,5As Required |
77733043000 |
US $2.28 |
||
|
31
|
31
77233020000 Stop Disk 17,2X30X1,3As Required |
77233020000 |
US $3.42 |
||
|
32
|
32
78133014000 Spacer Sleeve CounterAs Required |
78133014000 |
US $31.20 |
||
|
33
|
33
0760324571 Shaft seal ring 32x45x7 bslnbrAs Required |
0760324571 |
US $6.61 |
||
|
35
|
35
0770020220 O-ring 25,12x1,78 nbr70As Required |
0770020220 |
US $3.89 |
||
|
41
|
41
54833080000 Stop Disc 20,2X30X1As Required |
54833080000 |
US $2.35 |
||
|
43
|
43
77733044000 Stop Disc 24X32X1,5As Required |
77733044000 |
US $3.42 |
