Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77236056000 Valve lever shaft As Required	77236056000	US $10.34
2	2 77236060100 Valve Lever As Required	77236060100	US $151.23
3	3 77036035172 Shim d=8,9/1,72 As Required	77036035172	US $5.71
3	3 77036035176 Shim d=8,9/1,76 As Required	77036035176	US $5.71
3	3 77036035180 Shim d=8,9/1,80 As Required	77036035180	US $5.71
3	3 77036035184 Shim d=8,9/1,84 As Required	77036035184	US $5.71
3	3 77036035188 Shim d=8,9/1,88 As Required	77036035188	US $5.71
3	3 77036035192 Shim d=8,9/1,92 As Required	77036035192	US $5.71
3	3 77036035196 Shim d=8,9/1,96 As Required	77036035196	US $5.71
3	3 77036035200 Shim d=8,9/2,00 As Required	77036035200	US $5.71
3	3 77036035204 Shim d=8,9/2,04 As Required	77036035204	US $5.71
3	3 77036035208 Shim d=8,9/2,08 As Required	77036035208	US $5.71
3	3 77036035212 Shim d=8,9/2,12 As Required	77036035212	US $5.71
3	3 77036035216 Shim d=8,9/2,16 As Required	77036035216	US $5.71
3	3 77036035220 Shim d=8,9/2,20 As Required	77036035220	US $5.71
3	3 77036035224 Shim d=8,9/2,24 As Required	77036035224	US $5.71
3	3 77036035228 Shim d=8,9/2,28 As Required	77036035228	US $5.71
3	3 77036035232 Shim d=8,9/2,32 As Required	77036035232	US $5.71
3	3 77036035236 Shim d=8,9/2,36 As Required	77036035236	US $5.71
3	3 77036035240 Shim d=8,9/2,40 As Required	77036035240	US $5.71
3	3 77036035244 Shim d=8,9/2,44 As Required	77036035244	US $5.71
3	3 77036035248 Shim d=8,9/2,48 As Required	77036035248	US $5.71
3	3 77036035252 Shim d=8,9/2,52 As Required	77036035252	US $5.71
3	3 77036035256 Shim d=8,9/2,56 As Required	77036035256	US $5.71
3	3 77036035260 Shim d=8,9/2,60 As Required	77036035260	US $5.71
4	4 77036033000 Valve collet 05 As Required	77036033000	US $7.89
5	5 79036028044 Valve Spring Kit Exhaust As Required	79036028044	US $116.16
6	6 77036027000 Valve-stem sealing 05 As Required	77036027000	US $8.16
7	7 77736030000 Intake Valve As Required	77736030000	US $133.96
8	8 77736031000 Exhaust Valve As Required	77736031000	US $169.34
9	9 79036132000 Valve Spring Plate As Required	79036132000	US $19.98
10	10 77736028000 Valve Spring Nhk Hub 10Mm As Required	77736028000	US $23.31
11	11 79236028000 Valve Spring As Required	79236028000	US $34.61
12	12 77736136000 Valve Spring Holder As Required	77736136000	US $6.75
13	13 79036128044 Valve Spring Kit Intake As Required	79036128044	US $134.50
14	14 79036236000 Valve Spring Holder As Required	79036236000	US $19.50
15	15 79036232000 Valve Spring Retainer As Required	79036232000	US $27.42
99	99 79036030010 Valve Kit 250 Sx-F Factory As Required	79036030010	US $670.63

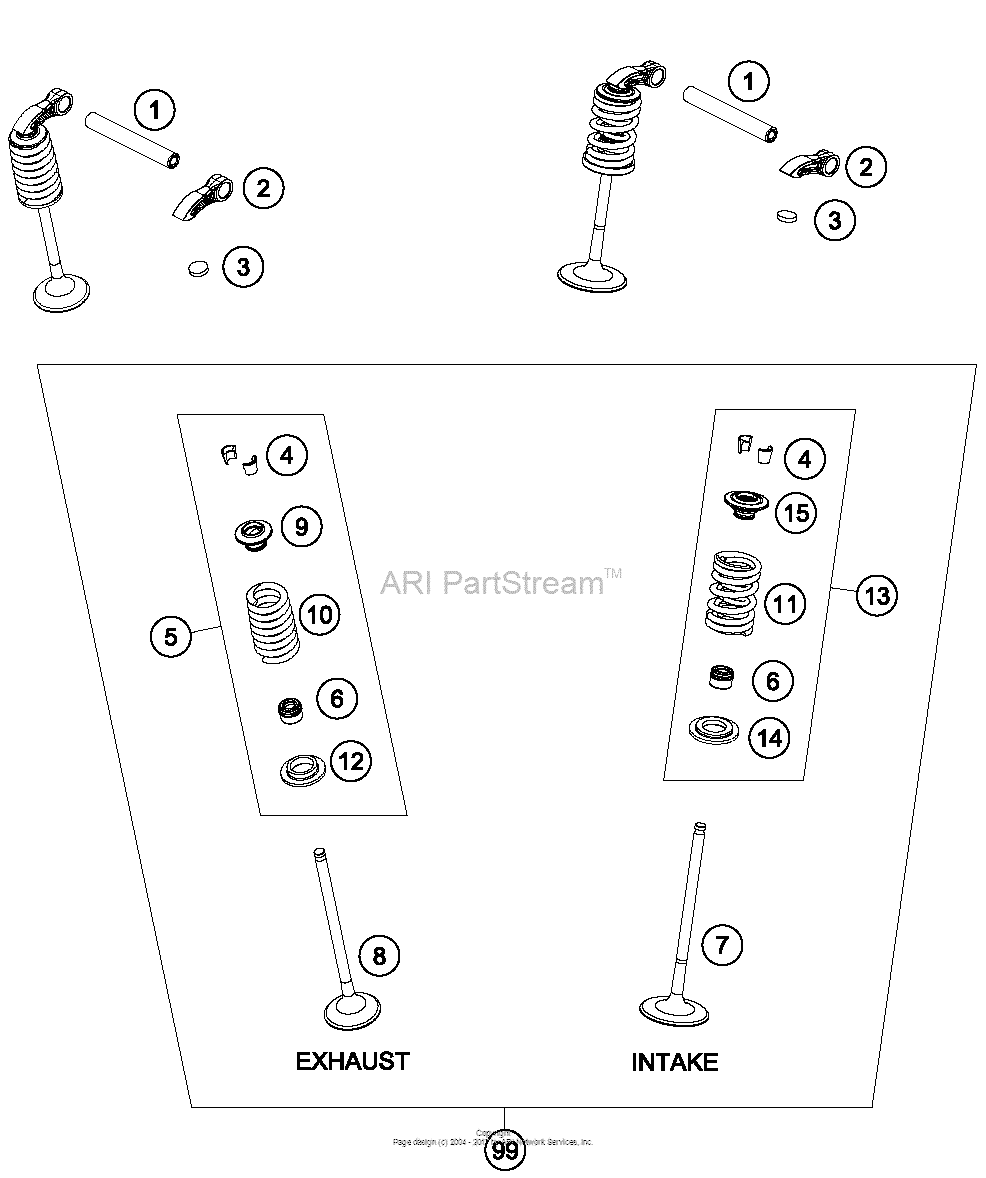

Valve Drive Diagram KTM 250 250 XC-F US/EU 18084257-939607

Valve Drive Diagram KTM 250 250 XC-F US/EU 18084257-939607
