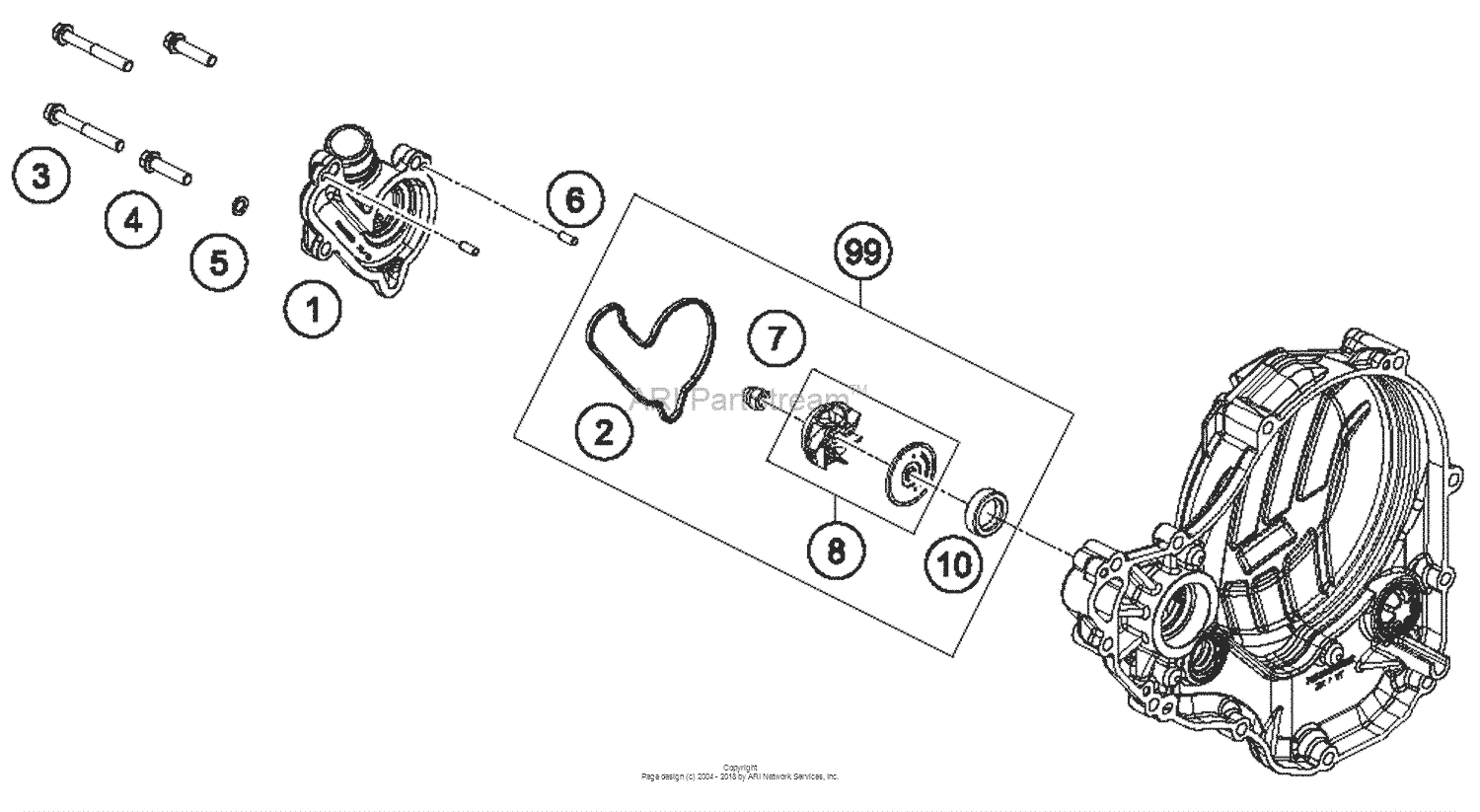

Water Pump Diagram KTM 250 250 XC-F
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79235052000 Water Pump CoverAs Required |
79235052000 |
US $25.18 |
||
|
2
|
2
79235053000 Gasket F. Water Pump CoverAs Required |
79235053000 |
US $11.10 |
||
|
3
|
3
0025060456 Hh collar screw m6x45 tx30TX30 |
0025060456 |
US $1.89 |
||
|
4
|
4
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
5
|
5
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
6
|
6
0402040980 Needle Rol.din5402 Nrb 4X9,8TX30 |
0402040980 |
US $1.77 |
||
|
7
|
7
61230045000 Cap Nut M6 Stainless SteelTX30 |
61230045000 |
US $0.90 |
||
|
8
|
8
79235055044 Water Pump Wheel CplTX30 |
79235055044 |
US $19.52 |
||
|
10
|
10
07601530451 Shaft Seal Ring 15X30X4.5 BaudTX30 |
07601530451 |
US $8.77 |
||
|
99
|
99
79235055015 Water Pump Rep. KitTX30 |
79235055015 |
US $31.71 |
