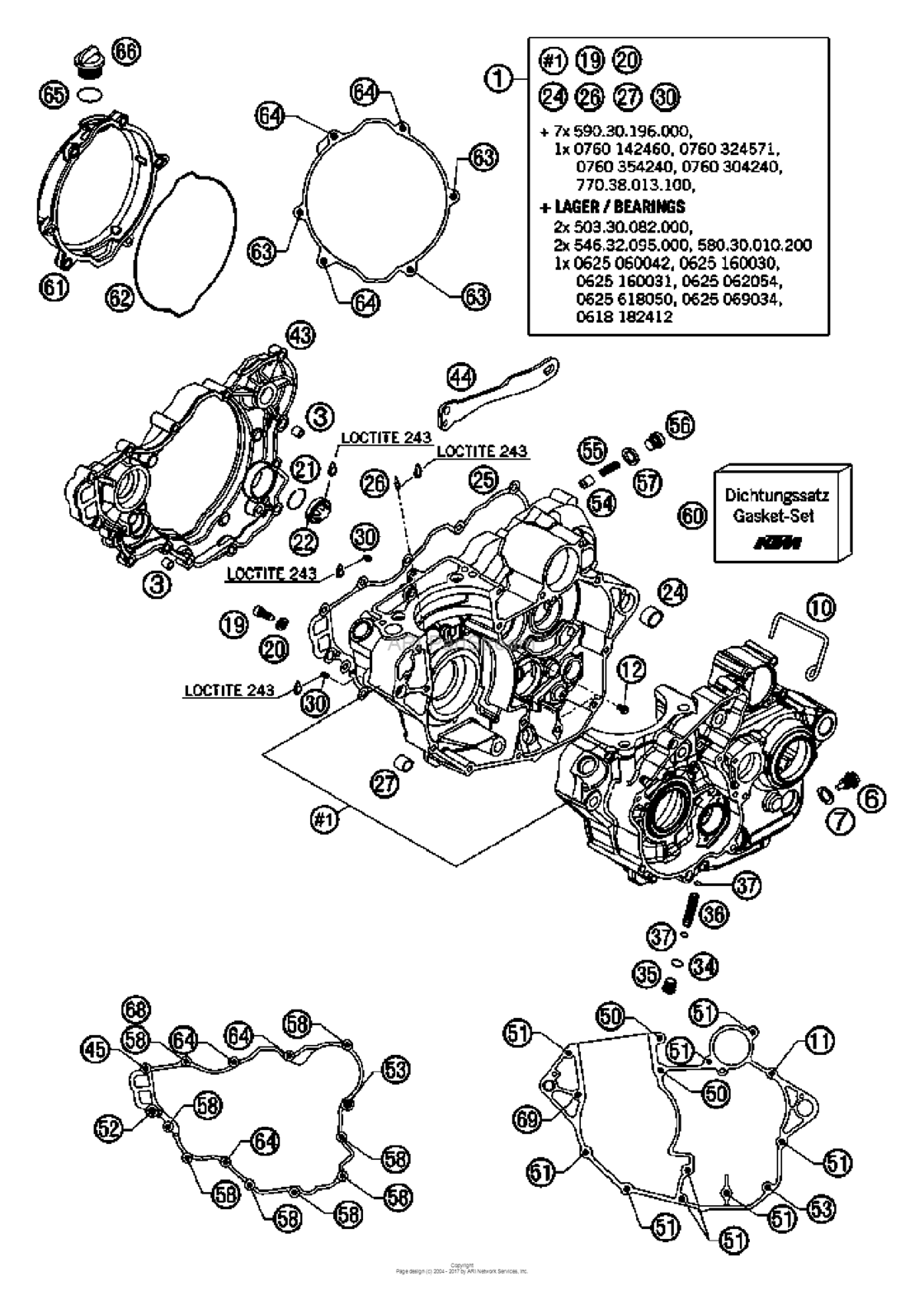

Engine Case Diagram KTM 250 250 XC-F
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77030100144 Engine case cpl. exc-f/xc-f 07TX30 |
77030100144 |
US $1,145.19 |
||
|
3
|
3
49030090000 Dowel 9,8 x 7 x 10TX30 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
3
|
3
49030090100 Dowel 9,8 X7X10TX30 |
49030090100 |
US $2.60 |
||
|
6
|
6
58030021000
Oildrain Plug With Magnet
TX30 |
58030021000 |
— | ||
| replacement | |||||
|
6
|
6
58030021100 Oildrain Plug With MagnetTX30 |
58030021100 |
US $12.02 |
||
|
7
|
7
58038022000 Cu-Seal Ring Din7603-12X18X1,5TX30 |
58038022000 |
US $1.97 |
||
|
10
|
10
77030090000 Bracket for breath hoseTX30 |
77030090000 |
US $3.37 |
||
|
11
|
11
0015060453
Hh collar screw m 6x45 ws=8
TX30 |
0015060453 |
— | ||
| replacement | |||||
|
11
|
11
0025060456 Hh collar screw m6x45 tx30TX30 |
0025060456 |
US $1.89 |
||
|
12
|
12
0015060083
Hh collar screw m 6x8 ws=8
TX30 |
0015060083 |
— | ||
| replacement | |||||
|
12
|
12
0025060086 Hh collar screw m6x8 tx30TX30 |
0025060086 |
US $1.39 |
||
|
19
|
19
58030080000 Locating screw m8 l=23TX30 |
58030080000 |
US $13.60 |
||
|
20
|
20
58030081000 Cu-seal ring 8 x 14 x 3TX30 |
58030081000 |
US $1.22 |
||
|
21
|
21
61030019050 Circlip oil level glass 03TX30 |
61030019050 |
US $0.66 |
||
|
22
|
22
59030019000
Oil Sight Glass
TX30 |
59030019000 |
— | ||
| replacement | |||||
|
22
|
22
59030019200 Oil Sight GlassTX30 |
59030019200 |
US $23.32 |
||
|
24
|
24
59030024000 Dowel 17 x 19 x 12TX30 |
59030024000 |
US $4.47 |
||
|
25
|
25
77030025100 Gasket for clutch cover 05TX30 |
77030025100 |
US $13.45 |
||
|
26
|
26
60030064070 Oil jet 70 m6x0,75 ws8 03TX30 |
60030064070 |
US $11.59 |
||
|
27
|
27
54630027000 Dowel bushing 13,8x11x12TX30 |
54630027000 |
US $5.73 |
||
|
30
|
30
59030058000 Jet 100 bing(44-031/180) m4TX30 |
59030058000 |
US $3.45 |
||
|
34
|
34
0770120020 O-Ring 12,00X2,00 Nbr 70TX30 |
0770120020 |
US $2.60 |
||
|
35
|
35
59038014100
Screw Plug
TX30 |
59038014100 |
— | ||
| replacement | |||||
|
35
|
35
77038017000 Screw plugTX30 |
77038017000 |
US $17.97 |
||
|
36
|
36
59038015000 Oil Screen 11,8X44,5MmTX30 |
59038015000 |
US $13.16 |
||
| replacement | |||||
|
36
|
36
59038015100 Oil screen 11,8x44,5mmTX30 |
59038015100 |
US $11.20 |
||
|
37
|
37
0770090015 O-ring 9x1,5 nbrTX30 |
0770090015 |
US $1.50 |
||
| replacement | |||||
|
37
|
37
07700900151 O-Ring 9X1,5 V80 ShTX30 |
07700900151 |
US $1.41 |
||
|
43
|
43
77030001044 Clutch cover cpl.TX30 |
77030001044 |
US $127.99 |
||
|
44
|
44
77030047100 Chain dampersheet exc-f 07TX30 |
77030047100 |
US $27.08 |
||
|
45
|
45
0015060353
Hh collar screw m 6x35 ws=8
TX30 |
0015060353 |
— | ||
| replacement | |||||
|
45
|
45
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
50
|
50
0015060653 Hh collar screw m 6x65 ws=8TX30 |
0015060653 |
US $1.12 |
||
|
51
|
51
0015060503
Hh collar screw m 6x50 ws=8
TX30 |
0015060503 |
— | ||
| replacement | |||||
|
51
|
51
0025060506 Hh collar screw m6x50 tx30TX30 |
0025060506 |
US $3.30 |
||
|
52
|
52
0015060403
Hh Collar Screw M6X40 Tx30
TX30 |
0015060403 |
— | ||
| replacement | |||||
|
52
|
52
0025060406 Hh collar screw m6x40 tx30TX30 |
0025060406 |
US $2.23 |
||
|
53
|
53
0015060303
Hh Collar Screw M6X30 Tx30
TX30 |
0015060303 |
— | ||
| replacement | |||||
|
53
|
53
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
54
|
54
58038028000 Valve piston d=10mmTX30 |
58038028000 |
US $38.76 |
||
|
55
|
55
58038023300 Pressure spring l=25mm d=1mmTX30 |
58038023300 |
US $6.61 |
||
|
56
|
56
0908120153 Plug din0908-m12x1,5TX30 |
0908120153 |
US $3.81 |
||
|
57
|
57
58038022000 Cu-Seal Ring Din7603-12X18X1,5TX30 |
58038022000 |
US $1.97 |
||
|
58
|
58
0015060253
Hh Collar Screw M6X25 Tx30
TX30 |
0015060253 |
— | ||
| replacement | |||||
|
58
|
58
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
60
|
60
77030099000
Gasket set 05
TX30 |
77030099000 |
— | ||
| replacement | |||||
|
60
|
60
77030099001 GASKET SETTX30 |
77030099001 |
US $284.48 |
||
|
61
|
61
77030026100
Clutch cover outside 06
TX30 |
77030026100 |
— | ||
| replacement | |||||
|
61
|
61
7703002630015 Clutch cover outside 09TX30 |
7703002630015 |
US $76.57 |
||
|
62
|
62
77030027000 Molded ring 05TX30 |
77030027000 |
US $18.62 |
||
|
63
|
63
0015060253
Hh Collar Screw M6X25 Tx30
TX30 |
0015060253 |
— | ||
| replacement | |||||
|
63
|
63
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
64
|
64
0015060553 Hh collar screw m 6x55 ws=8TX30 |
0015060553 |
US $2.09 |
||
|
65
|
65
0770191015 O-ring 19,00x3,00 nbrTX30 |
0770191015 |
US $1.16 |
||
|
66
|
66
58030020000 Plug Cpl. M24X3TX30 |
58030020000 |
US $7.06 |
||
| replacement | |||||
|
66
|
66
58030020100 Plug Cpl. M24X3TX30 |
58030020100 |
US $6.73 |
||
|
68
|
68
0603061001 Cu-Seal Ring Din7603-6X10X1TX30 |
0603061001 |
US $2.64 |
||
|
69
|
69
0015060603
Hh collar screw m 6x60 ws=8
TX30 |
0015060603 |
— | ||
| replacement | |||||
|
69
|
69
0025060606 Hh collar screw m6x60 tx30TX30 |
0025060606 |
US $1.73 |
||
