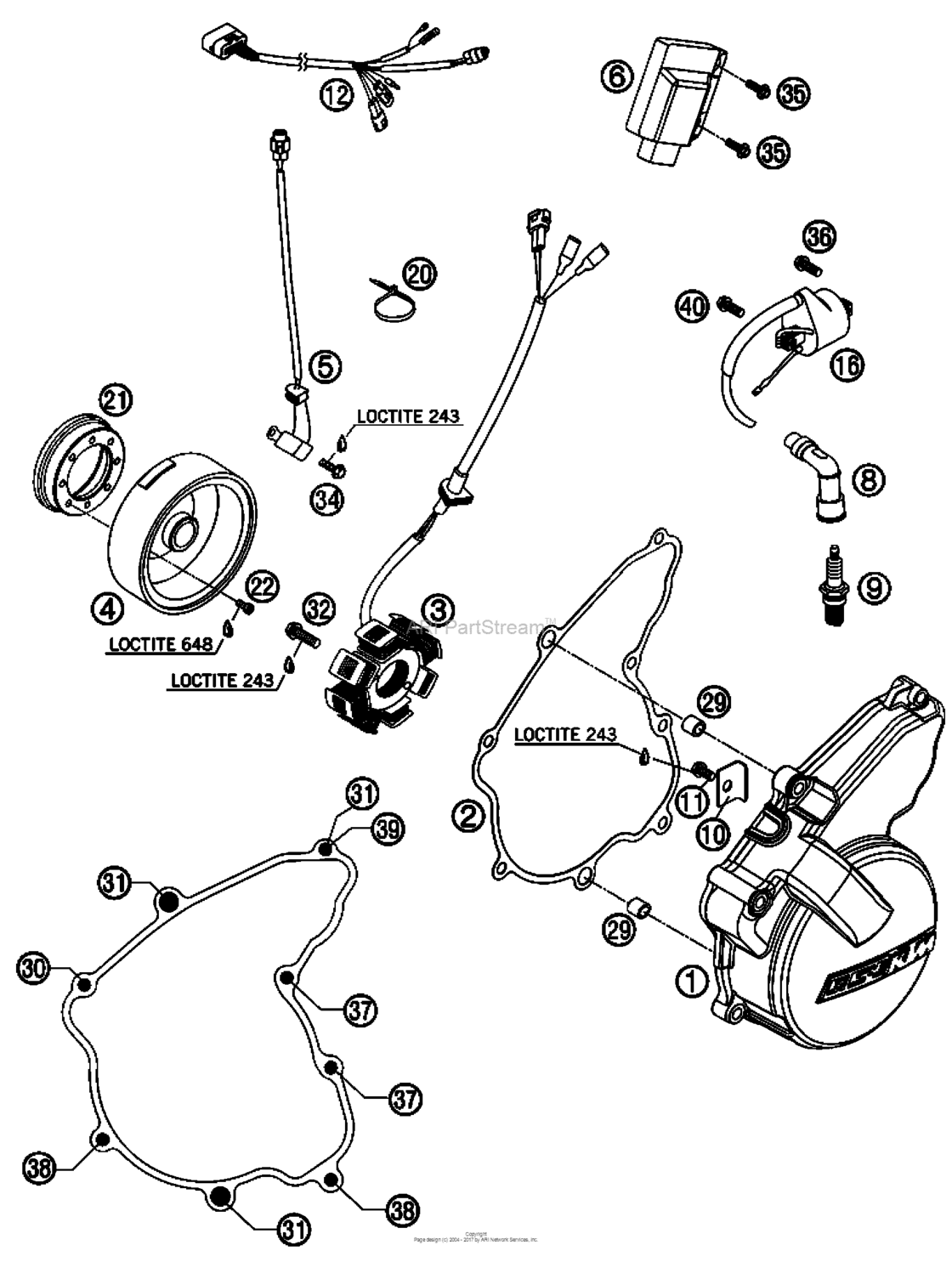

Ignition System Diagram KTM 250 250 XC-F
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7703010210025 Ignition coverWS=8 |
7703010210025 |
US $110.96 |
||
|
2
|
2
77030140000 Ignition cover gasket exc-fWS=8 |
77030140000 |
US $10.61 |
||
|
3
|
3
77039104000 Stator 20072007 |
77039104000 |
US $202.88 |
||
|
4
|
4
77039105100 Flywheel2007 |
77039105100 |
US $417.25 |
||
|
5
|
5
77039134000 Pulser coil 0808 |
77039134000 |
US $65.23 |
||
|
6
|
6
77039031600
Cdi unit 250 sx-f 08
08 |
77039031600 |
— | ||
| replacement | |||||
|
6
|
6
77039031700 Digitalbox 250 sx-f 0908 |
77039031700 |
US $307.29 |
||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
03 |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug Connector03 |
77139090000 |
US $56.17 |
||
|
9
|
9
77039093000 Spark plug (NGK CR9EKB) -05'05 |
77039093000 |
US $22.08 |
||
|
10
|
10
77030002050 Wire retaining bracket 0606 |
77030002050 |
US $3.71 |
||
|
11
|
11
0015060083
Hh collar screw m 6x8 ws=8
WS=8 |
0015060083 |
— | ||
| replacement | |||||
|
11
|
11
0025060086 Hh collar screw m6x8 tx30WS=8 |
0025060086 |
US $1.39 |
||
|
12
|
12
59439032100 Wiring harness for cdi exc 0404 |
59439032100 |
US $102.20 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
20
|
20
44011076100 Cable tie 100/2,5mm black(As required) |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
20
|
20
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
21
|
21
77040025000 Freewheel hub(As required) |
77040025000 |
US $56.73 |
||
|
22
|
22
00120500810 Ah screw din6912-m5x8 10.910.9 |
00120500810 |
US $1.14 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 1010.9 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X1010.9 |
49030090100 |
US $2.60 |
||
|
30
|
30
0015060503
Hh collar screw m 6x50 ws=8
WS=8 |
0015060503 |
— | ||
| replacement | |||||
|
30
|
30
0025060506 Hh collar screw m6x50 tx30WS=8 |
0025060506 |
US $3.30 |
||
|
31
|
31
0015060303
Hh Collar Screw M6X30 Tx30
SW=8 |
0015060303 |
— | ||
| replacement | |||||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30SW=8 |
0025060306 |
US $3.96 |
||
|
32
|
32
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
32
|
32
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
34
|
34
0015050163 Hh Collar Screw M 5X16 Ws=8WS=8 |
0015050163 |
US $1.31 |
||
|
35
|
35
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
36
|
36
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
37
|
37
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
37
|
37
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
38
|
38
0015060953 Hh collar screw m 6x95 ws=8WS=8 |
0015060953 |
US $2.48 |
||
|
39
|
39
0603061001 Cu-Seal Ring Din7603-6X10X1WS=8 |
0603061001 |
US $2.64 |
||
|
40
|
40
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
