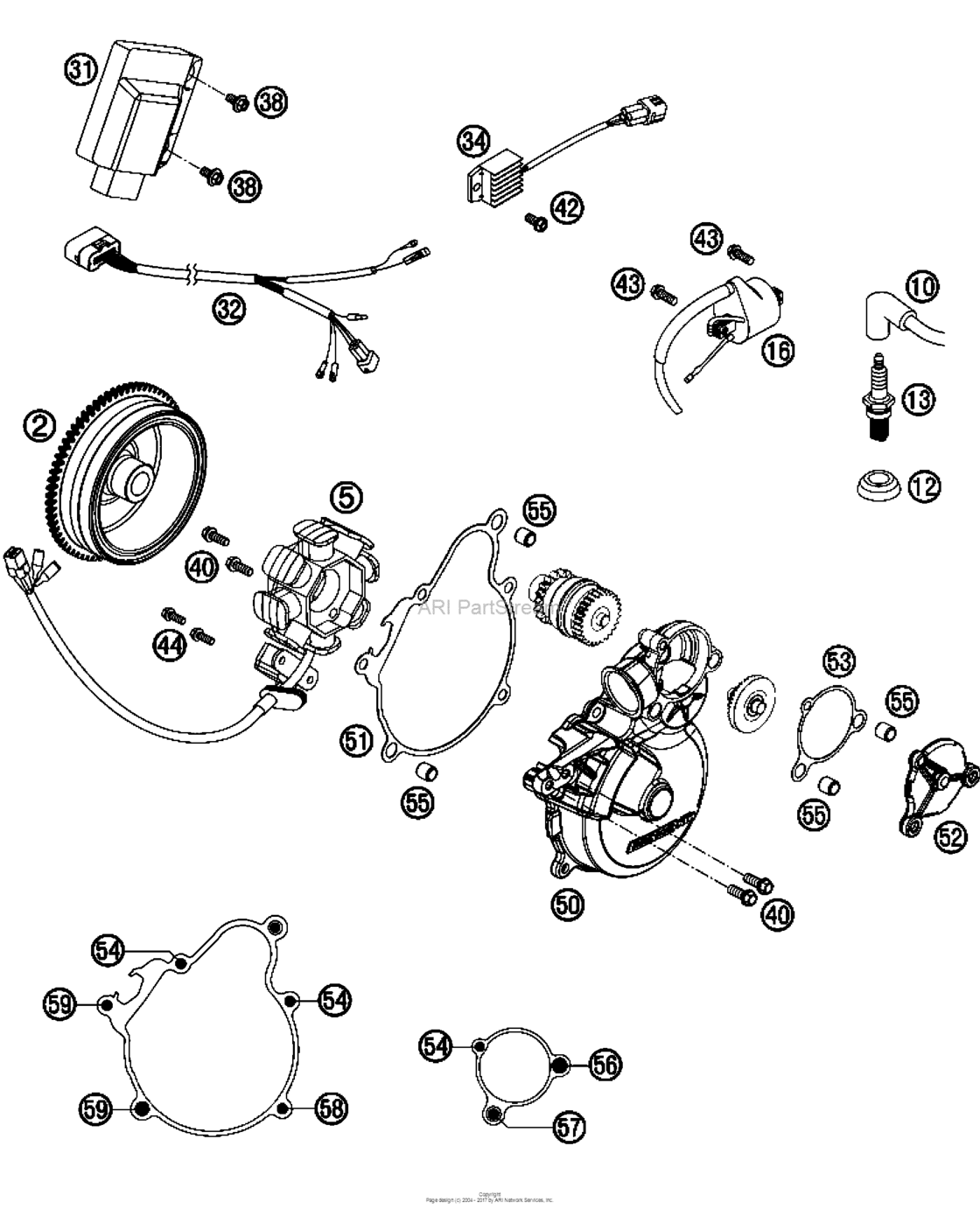

Ignition System Diagram KTM 250 250 XC-W
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
55139005000 Flywheel kokusanL=109,5MM '91 |
55139005000 |
US $362.19 |
||
|
5
|
5
55139004000 Stator kokusanL=109,5MM '91 |
55139004000 |
US $187.51 |
||
| replacement | |||||
|
5
|
5
55139004100 StatorL=109,5MM '91 |
55139004100 |
US $187.51 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
54739093000 Spark plug ngk br7es04 |
54739093000 |
US $4.15 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
31
|
31
54839031700 Cdi unit 250 exc 0707 |
54839031700 |
US $270.56 |
||
|
32
|
32
54839032300 Wiring harness f.cdi 2-st.sx0707 |
54839032300 |
US $67.86 |
||
|
34
|
34
80011034000 Voltage regulator 0404 |
80011034000 |
US $148.85 |
||
|
38
|
38
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
|
40
|
40
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
40
|
40
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
42
|
42
0025060106 Hh collar screw m6x10 tx30TX30 |
0025060106 |
US $1.58 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
44
|
44
0014050123 Hh collar screw m 5x12 ws=6WS=6 |
0014050123 |
US $2.19 |
||
|
50
|
50
5513000210033
Ignition Cover 250 E-Start
08 |
5513000210033 |
— | ||
| replacement | |||||
|
50
|
50
5513000234433 Ignition Cover Cpl08 |
5513000234433 |
US $164.75 |
||
|
51
|
51
55130040000 Igniti.cover gasket 0707 |
55130040000 |
US $8.45 |
||
|
52
|
52
5513004514433 Outer Ignition Cover Cpl07 |
5513004514433 |
US $28.39 |
||
| replacement | |||||
|
52
|
52
5513004524433 Outer ignition cover cpl.07 |
5513004524433 |
US $26.16 |
||
|
53
|
53
55130041100 Ign. out side cov. gasket 0707 |
55130041100 |
US $7.99 |
||
|
54
|
54
0015060163 Hh Collar Screw M 6X16 Ws=8WS=8 |
0015060163 |
US $2.23 |
||
|
55
|
55
49030090000 Dowel 9,8 x 7 x 10WS=8 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
55
|
55
49030090100 Dowel 9,8 X7X10WS=8 |
49030090100 |
US $2.60 |
||
|
56
|
56
0015060703
Hh collar screw m 6x70 ws=8
WS=8 |
0015060703 |
— | ||
| replacement | |||||
|
56
|
56
0025060706 Hh collar screw m6x70 tx30WS=8 |
0025060706 |
US $1.82 |
||
|
57
|
57
0015060253
Hh Collar Screw M6X25 Tx30
WS=8 |
0015060253 |
— | ||
| replacement | |||||
|
57
|
57
0025060256 Hh collar screw m6x25 tx30WS=8 |
0025060256 |
US $2.45 |
||
|
58
|
58
0015060303
Hh Collar Screw M6X30 Tx30
SW=8 |
0015060303 |
— | ||
| replacement | |||||
|
58
|
58
0025060306 Hh collar screw m6x30 tx30SW=8 |
0025060306 |
US $3.96 |
||
|
59
|
59
0015060353
Hh collar screw m 6x35 ws=8
WS=8 |
0015060353 |
— | ||
| replacement | |||||
|
59
|
59
0025060356 Hh collar screw m6x35 tx30WS=8 |
0025060356 |
US $6.15 |
||
