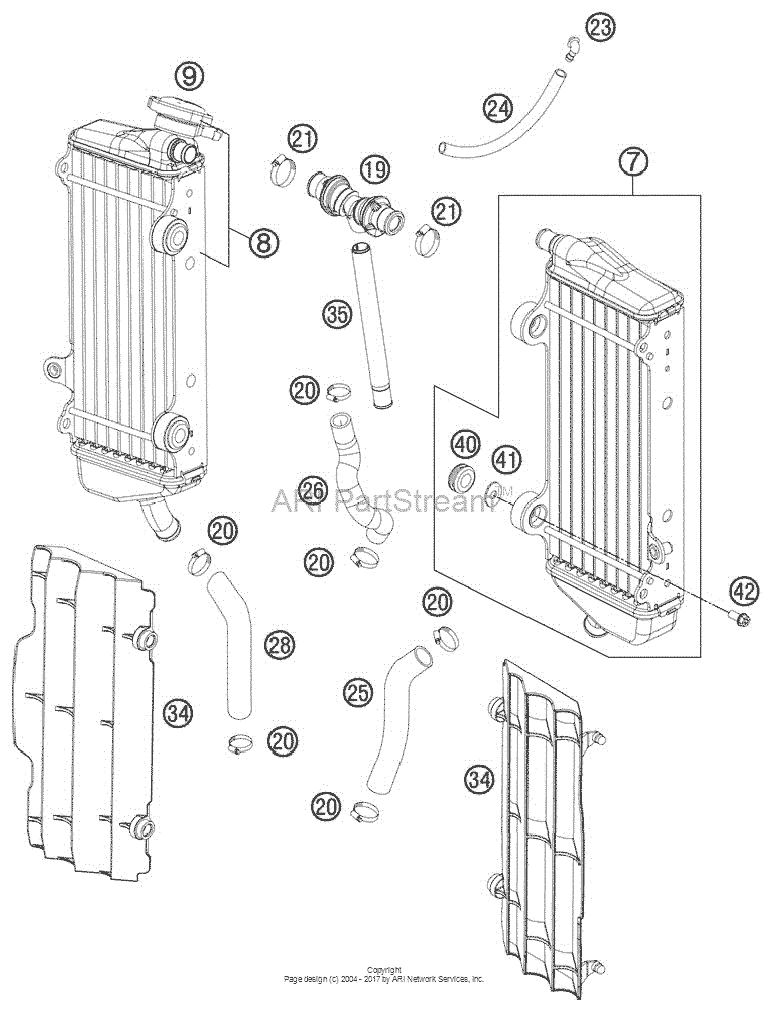

Cooling System Diagram KTM 250 250 XC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
77035007200
Radiator l/s 250 sx-f
TX30 |
77035007200 |
— | ||
| replacement | |||||
|
7
|
7
77035007500 Radiator L/s 15623UTX30 |
77035007500 |
US $216.10 |
||
|
8
|
8
77235008000 Radiator R/s In.45637In11 |
77235008000 |
US $332.66 |
||
| replacement | |||||
|
8
|
8
77235008200 Radiator R/s 15637U11 |
77235008200 |
US $256.09 |
||
|
9
|
9
77335016000 Radiator cap small 1,8 bar11 |
77335016000 |
US $15.52 |
||
|
19
|
19
77235071044 Y-Connector Cpl11 |
77235071044 |
US $57.14 |
||
|
20
|
20
10001020000 Hose Clamp 18-2911 |
10001020000 |
US $4.71 |
||
|
21
|
21
42013037400 Hose Clamp Norma 14/2411 |
42013037400 |
US $4.17 |
||
|
23
|
23
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
24
|
24
50335030001 Pvc-Hose 6X9(As required) |
50335030001 |
US $5.12 |
||
|
25
|
25
77035025000 Radiator hose l/s 250sxf 05(As required) |
77035025000 |
US $12.12 |
||
|
26
|
26
77135024000 Hose Engine-Radiator(As required) |
77135024000 |
US $9.57 |
||
|
28
|
28
77035027100 Radiator hose r/s 0707 |
77035027100 |
US $11.68 |
||
|
34
|
34
7733503400030
Radiator protection black 07
07 |
7733503400030 |
— | ||
|
35
|
35
77235073000 Hose Connector L=172,507 |
77235073000 |
US $25.57 |
||
|
40
|
40
41001052000 Rubber Sleeve D=12Mm07 |
41001052000 |
US $5.46 |
||
|
41
|
41
77335001000 Washer for radiator 0808 |
77335001000 |
US $1.09 |
||
|
42
|
42
0023060123 Collar screw m6x12 txTX |
0023060123 |
US $0.87 |
||
