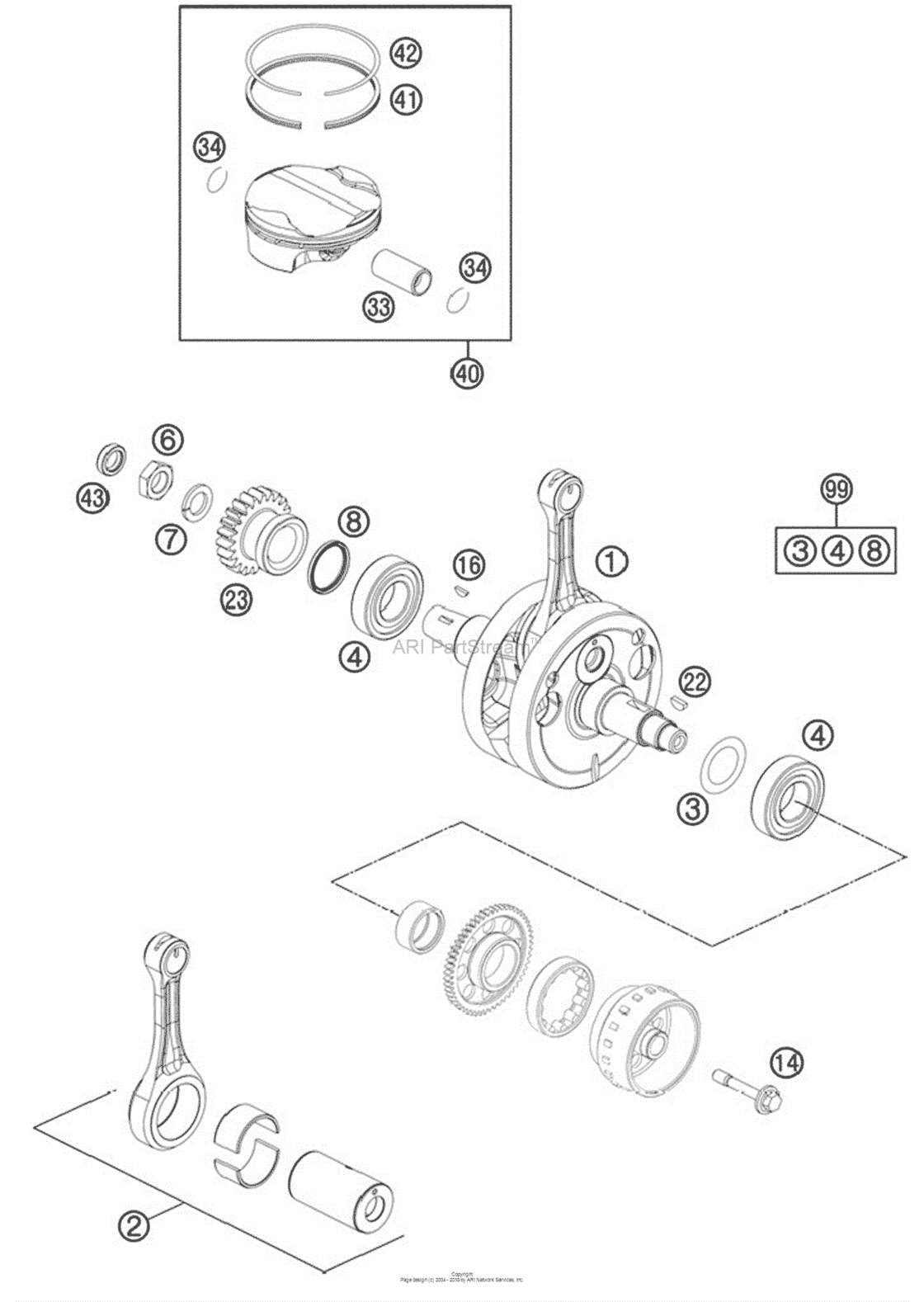

Crankshaft, Piston Diagram KTM 250 250 XC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77130018100 Crankshaft CplTX |
77130018100 |
US $973.57 |
||
|
2
|
2
77130015044 Connect. Rod Repair SetTX |
77130015044 |
US $1,224.20 |
||
|
3
|
3
56030081000 Thrust washer 30,5x45x0,10(As required) |
56030081000 |
US $0.43 |
||
|
3
|
3
56030081100 Thrust washer 30,7x47x0,15(As required) |
56030081100 |
US $0.94 |
||
|
3
|
3
56030081200 Thrust washer 30,5x45x0,30(As required) |
56030081200 |
US $1.21 |
||
|
4
|
4
50330082000 Cyl.roller Bear.nj206 Et2Xcs46(As required) |
50330082000 |
US $91.46 |
||
|
6
|
6
54630029000 Hex.nut l/sh m18x1,5(As required) |
54630029000 |
US $9.13 |
||
|
7
|
7
58132072000 Lock washer vsk 18(As required) |
58132072000 |
US $1.09 |
||
|
8
|
8
0760354240 Sh.seal ring 35x42x4 b10fnib(As required) |
0760354240 |
US $3.79 |
||
|
14
|
14
77339010100 Flywheel screw(As required) |
77339010100 |
US $4.66 |
||
|
16
|
16
6946005 Woodruff Key 5X6,5 Harded(As required) |
6946005 |
US $0.92 |
||
|
22
|
22
0888030037 Woodruff key din6888-3x3,7(As required) |
0888030037 |
US $0.58 |
||
|
23
|
23
77132000022 Primary Gear 22T(As required) |
77132000022 |
US $95.76 |
||
|
33
|
33
77130033000 Piston Pin(As required) |
77130033000 |
US $60.88 |
||
|
34
|
34
77030074000 Circlip 0505 |
77030074000 |
US $2.86 |
||
|
40
|
40
77130007100I
Piston Cpl. D=76Mm
05 |
77130007100I |
— | ||
|
40
|
40
77130007100II Piston Cpl. D=76Mm05 |
77130007100II |
US $510 |
||
|
41
|
41
77130032000 Oil Scraper Ring05 |
77130032000 |
US $53.33 |
||
|
42
|
42
77030030200 Compression ring05 |
77030030200 |
US $50.07 |
||
|
43
|
43
0760142460 Shaft seal ring 14x24x6 b05 |
0760142460 |
US $11.70 |
||
|
99
|
99
00050002302 Crankshaft Rep. Kit 250Sx-F/(As required) |
00050002302 |
US $170.02 |
