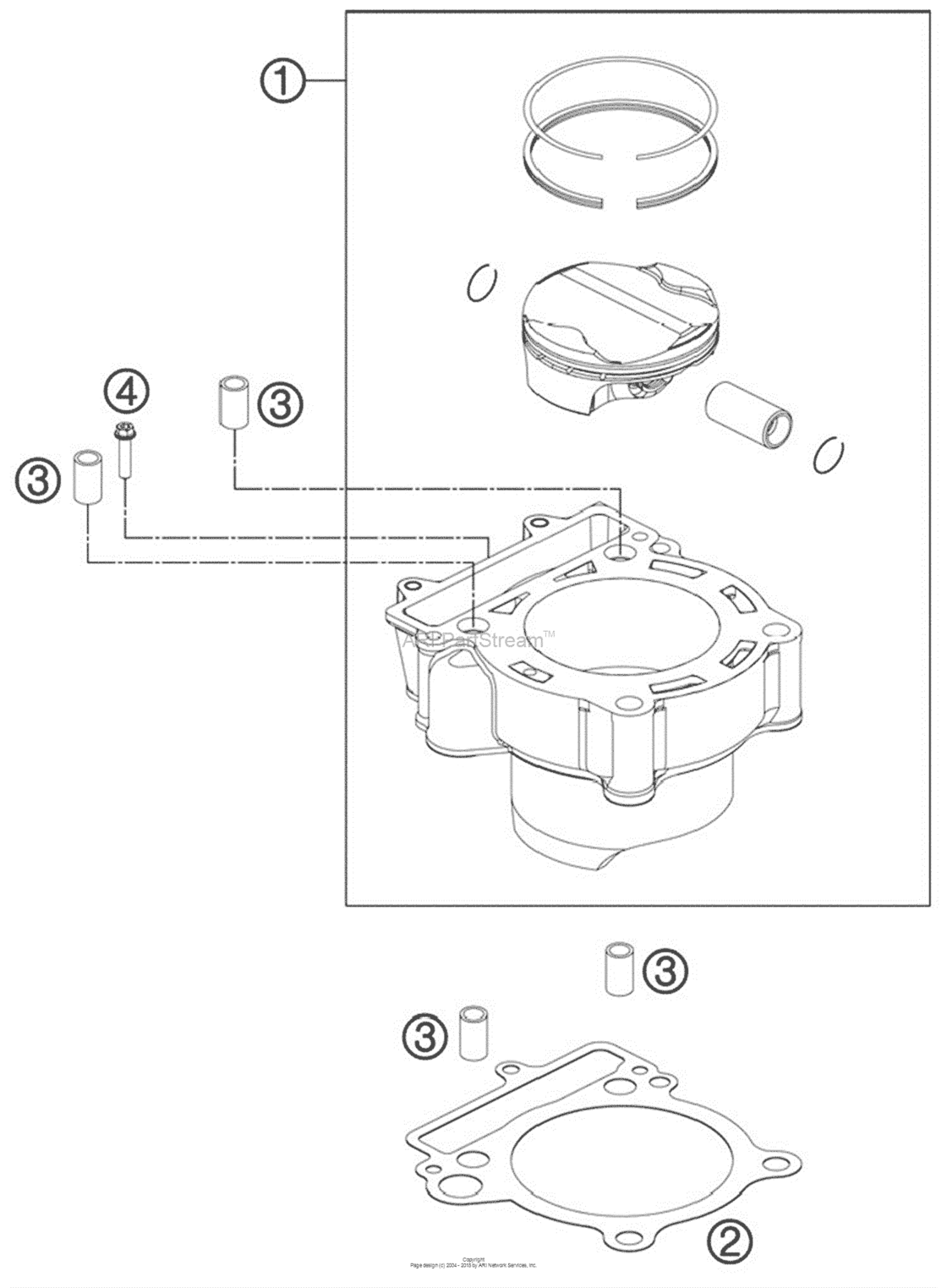

Cylinder Diagram KTM 250 250 XC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77130038100 Cylinder + Piston Cpl(As required) |
77130038100 |
US $880.92 |
||
|
2
|
2
77030035200 Cylinder base gasket(As required) |
77030035200 |
US $7.50 |
||
|
3
|
3
58530014000 Dowel 10,2x12,5x10 20012001 |
58530014000 |
US $7.97 |
||
| replacement | |||||
|
3
|
3
58530014100 Dowel Bushing 10,2X12,5X102001 |
58530014100 |
US $2.57 |
||
|
4
|
4
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
