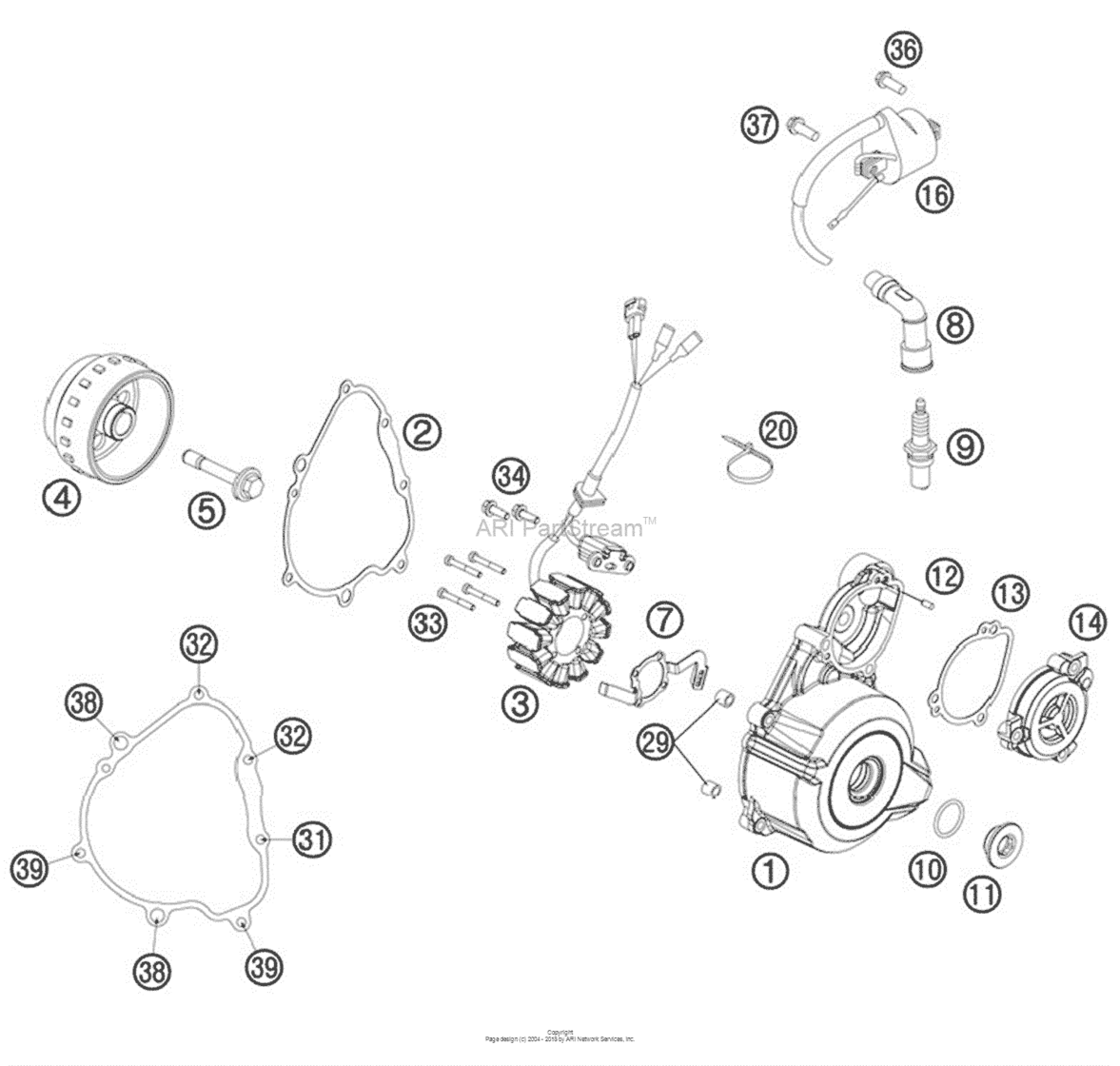

Ignition System Diagram KTM 250 250 XC-F
- Year
- 2012
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7713000200015 Ignition Cover Sx E-Start05-11 Not Available |
7713000200015 |
US $117.10 |
||
|
2
|
2
77130040000 Ignition Cover Gasket05-11 Not Available |
77130040000 |
US $22.51 |
||
|
3
|
3
77139004000 Stator05-11 Not Available |
77139004000 |
US $245.16 |
||
|
4
|
4
77239005100
Rotor Efi
05-11 Not Available |
77239005100 |
— | ||
|
5
|
5
77339010100 Flywheel screw05-11 Not Available |
77339010100 |
US $4.66 |
||
|
7
|
7
77130002050 Retaining Plate05-11 Not Available |
77130002050 |
US $24.96 |
||
|
8
|
8
59039090100
Spark plug connect. vd05eg 03
03 |
59039090100 |
— | ||
| replacement | |||||
|
8
|
8
77139090000 Spark Plug Connector03 |
77139090000 |
US $56.17 |
||
|
9
|
9
77039093000 Spark plug (NGK CR9EKB) -05'05 |
77039093000 |
US $22.08 |
||
|
10
|
10
07700240251 O-ring 24x2,5 viton'05 |
07700240251 |
US $3.96 |
||
|
11
|
11
7723000206030
Screw Plug M24X1,5
'05 |
7723000206030 |
— | ||
| replacement | |||||
|
11
|
11
7723000216030 Screw Plug M24X1,5'05 |
7723000216030 |
US $39.24 |
||
|
12
|
12
0402040980 Needle Rol.din5402 Nrb 4X9,8'05 |
0402040980 |
US $1.77 |
||
|
13
|
13
77240043000 Gasket torque limiter'05 |
77240043000 |
US $2.84 |
||
|
14
|
14
7723000201015 Cover Torque Limiter'05 |
7723000201015 |
US $32.57 |
||
|
16
|
16
58439006000 Ignitioncoil ig3826 kokusan'96'96 |
58439006000 |
US $83.22 |
||
|
20
|
20
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
29
|
29
49030090000 Dowel 9,8 x 7 x 10(As required) |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
29
|
29
49030090100 Dowel 9,8 X7X10(As required) |
49030090100 |
US $2.60 |
||
|
31
|
31
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
32
|
32
0025060506 Hh collar screw m6x50 tx30TX30 |
0025060506 |
US $3.30 |
||
|
33
|
33
0012040303 Ah Screw Din6912 M4X30TX30 |
0012040303 |
US $1.38 |
||
|
34
|
34
0025050126 Hh collar screw m5x12 tx30TX30 |
0025050126 |
US $3.38 |
||
|
36
|
36
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
37
|
37
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
38
|
38
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
39
|
39
0025060906 Hh collar screw m6x90 tx30TX30 |
0025060906 |
US $2.53 |
||
