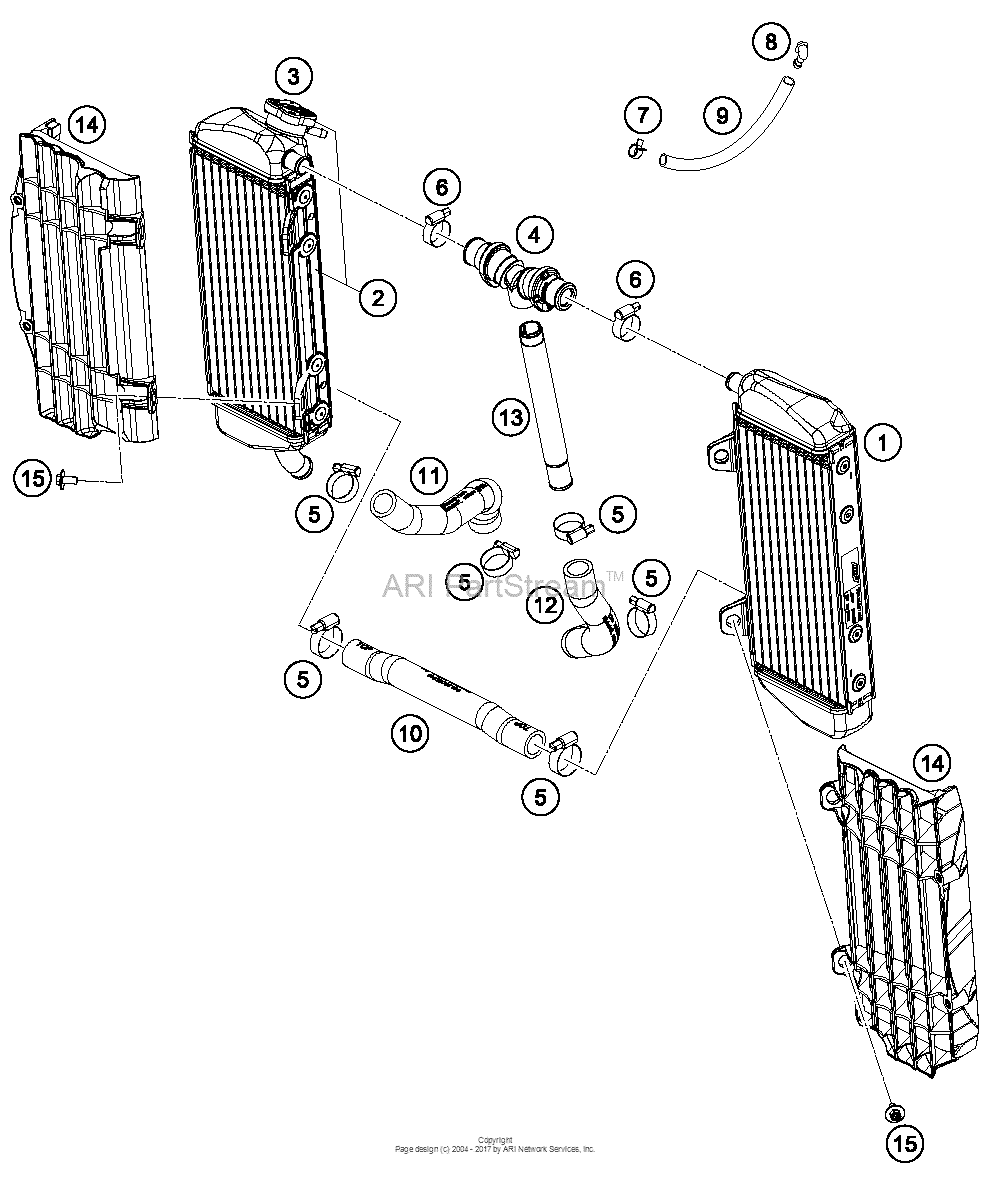

Cooling System Diagram KTM 250 250 XC-F
- Year
- 2016
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XC-F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50435007000 Radiator Left 17TX30 |
50435007000 |
US $227.97 |
||
| replacement | |||||
|
1
|
1
50435007100 Radiator Left 17TX30 |
50435007100 |
US $226.22 |
||
|
2
|
2
50435008000 Radiator Right 17TX30 |
50435008000 |
US $279.82 |
||
| replacement | |||||
|
2
|
2
50435008100 Radiator Right 17TX30 |
50435008100 |
US $278.04 |
||
|
3
|
3
77335016000 Radiator cap small 1,8 barTX30 |
77335016000 |
US $15.52 |
||
|
4
|
4
79035071044 Y-Piece CplTX30 |
79035071044 |
US $55.73 |
||
|
5
|
5
10001020000 Hose Clamp 18-29TX30 |
10001020000 |
US $4.71 |
||
|
6
|
6
42013037400 Hose Clamp Norma 14/24TX30 |
42013037400 |
US $4.17 |
||
|
7
|
7
59007017000 Clamp ydnac 10096f (9,6mm)TX30 |
59007017000 |
US $1.48 |
||
|
8
|
8
50303089000 Angle piece '97'97 |
50303089000 |
US $4.52 |
||
|
9
|
9
50335030001 Pvc-Hose 6X9As Required |
50335030001 |
US $5.12 |
||
|
10
|
10
50435025000 Preformed Hose RadiatorAs Required |
50435025000 |
US $22.03 |
||
|
11
|
11
79235027000 Preformed Hose Water PumpAs Required |
79235027000 |
US $16.03 |
||
|
12
|
12
79035024000 Hose Engine Y-PieceAs Required |
79035024000 |
US $9.79 |
||
|
13
|
13
77235073000 Hose Connector L=172,5As Required |
77235073000 |
US $25.57 |
||
|
14
|
14
7903503400030 Radiator Protect 20162016 |
7903503400030 |
US $23.43 |
||
|
15
|
15
0024060123 Collar screw m6x12 tx2016 |
0024060123 |
US $0.66 |
||
