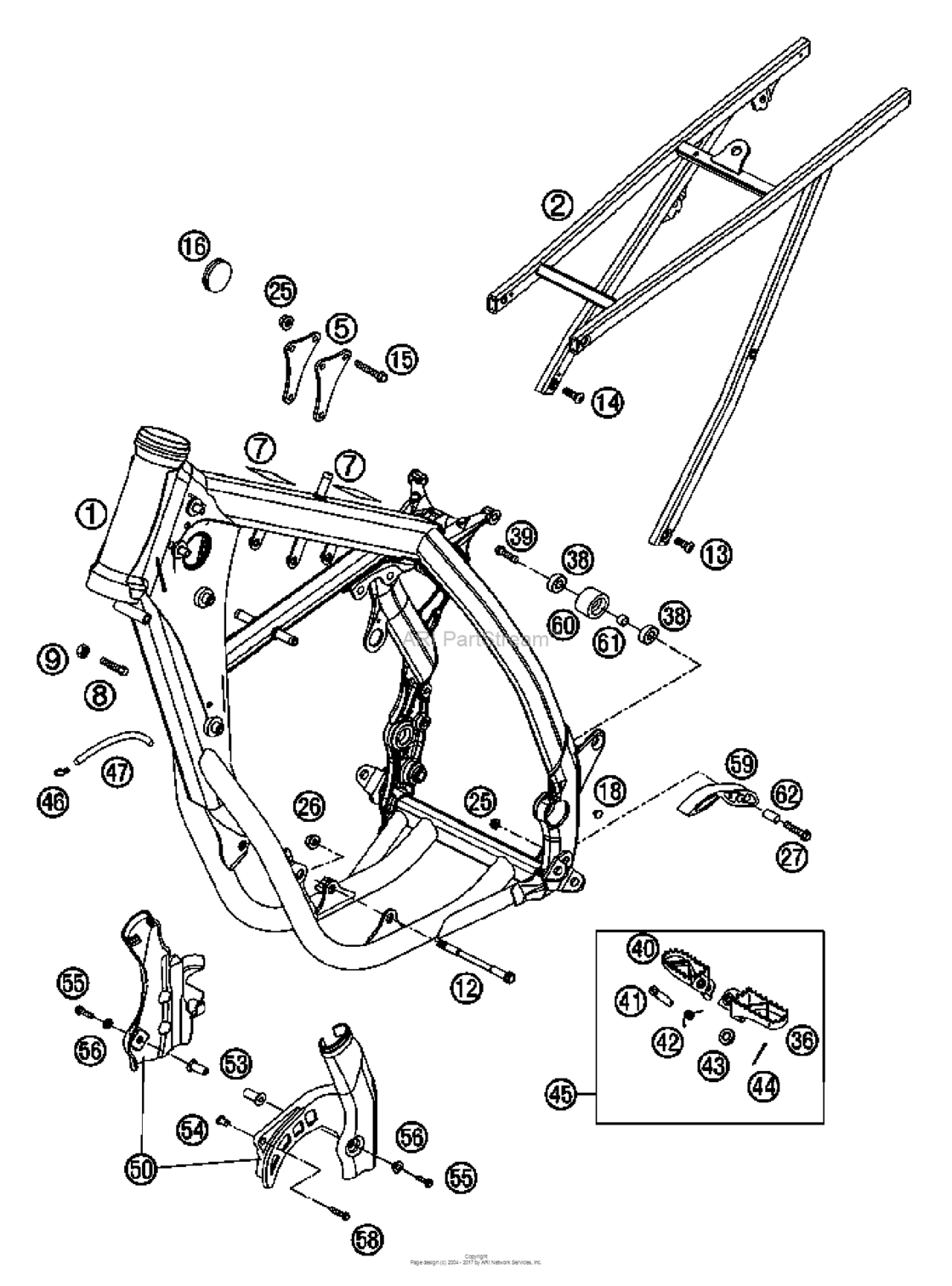

Frame, Sub Frame Diagram KTM 250 250 XCF-W
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XCF-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7700300120030 Frame exc-f usa "di07"(As required) |
7700300120030 |
US $1,055.56 |
||
|
2
|
2
59403002344 Sub frame cpl. exc+mxc "m5" 05(As required) |
59403002344 |
US $375.94 |
||
|
5
|
5
77003013000 Reinforcing b. r/s 250 sxf 05(As required) |
77003013000 |
US $17.05 |
||
|
7
|
7
50307012000 Adh. foil transp. 80x80 mm 04(As required) |
50307012000 |
US $2.02 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=10(As required) |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 8(As required) |
0934080003 |
US $3.26 |
||
|
12
|
12
54603013000 Engine brac.scr. m10x105 ws=13(As required) |
54603013000 |
US $9.74 |
||
|
13
|
13
54610052000 Sprocket screw-ah m8x20 ws=6(As required) |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
13
|
13
0019080206 Counter-sunk screw isa45 m8x20(As required) |
0019080206 |
US $1.82 |
||
|
14
|
14
54510052100
Counter-Sunk Screw Isa45 M8X26
(As required) |
54510052100 |
— | ||
| replacement | |||||
|
14
|
14
0019080266S Counter-sunk screw isa45 m8x26(As required) |
0019080266S |
US $2.23 |
||
|
15
|
15
56530079000
Collar screw m8x42 ws=13 10.9
(As required) |
56530079000 |
— | ||
| replacement | |||||
|
15
|
15
56530079000S Hh Collar Screw M8X44 Ws13(As required) |
56530079000S |
US $1.60 |
||
|
16
|
16
54606004000 Plug 37mm(As required) |
54606004000 |
US $1.89 |
||
|
18
|
18
54403135000 Plastic cap sfl10(As required) |
54403135000 |
US $1.31 |
||
|
25
|
25
54310086200 Self Locking Nut M8 10.9(As required) |
54310086200 |
US $1.56 |
||
|
26
|
26
54310086100 Self locking nut m10 cu ws=14(As required) |
54310086100 |
US $2.55 |
||
|
27
|
27
0015080353 Hh Collar Screw M 8X35 Ws=10(As required) |
0015080353 |
US $7.12 |
||
|
36
|
36
59003040250 Footrest L/s 08(As required) |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
36
|
36
78003040050 Footrest l/s 08(As required) |
78003040050 |
US $44.12 |
||
|
38
|
38
0625006087 Grooved Ball Bear. 608 2Rs C3(As required) |
0625006087 |
US $19.19 |
||
|
39
|
39
0015080303
Hh Collar Screw M8X30 Tx40
(As required) |
0015080303 |
— | ||
| replacement | |||||
|
39
|
39
0025080306 Hh collar screw m8x30 tx40(As required) |
0025080306 |
US $3.89 |
||
|
40
|
40
59003041250 Footrest R/s 08(As required) |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
40
|
40
78003041050 Footrest r/s 08(As required) |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 Mm(As required) |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s(As required) |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,5(As required) |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel(As required) |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel(As required) |
0094032250 |
US $1.12 |
||
|
45
|
45
5030314013390 Footpeg l.+r. cpl. 03(As required) |
5030314013390 |
US $172.55 |
||
|
46
|
46
50303089000 Angle piece '97(As required) |
50303089000 |
US $4.52 |
||
|
47
|
47
55007016001 Pvc-hose 7x10 per meter(As required) |
55007016001 |
US $5.98 |
||
|
50
|
50
54803094100 Frame protection set 05(As required) |
54803094100 |
US $17.80 |
||
|
53
|
53
54803092050 Blind plug-in nut m5 wn 22a 03(As required) |
54803092050 |
US $4.76 |
||
|
54
|
54
59030060150 Bushing f. sprocket cover rac.(As required) |
59030060150 |
US $3.67 |
||
|
55
|
55
0014050253 Hh collar screw m 5x25 ws=6(As required) |
0014050253 |
US $2.57 |
||
|
56
|
56
54803092060 Bush f. frame protection 03(As required) |
54803092060 |
US $3.43 |
||
|
58
|
58
0015060353
Hh collar screw m 6x35 ws=8
(As required) |
0015060353 |
— | ||
| replacement | |||||
|
58
|
58
0025060356 Hh collar screw m6x35 tx30(As required) |
0025060356 |
US $6.15 |
||
|
59
|
59
51103053000 Chain sliding piece below '97(As required) |
51103053000 |
US $13.24 |
||
|
60
|
60
50203053000 Chain roll d=30mm(As required) |
50203053000 |
US $7.36 |
||
|
61
|
61
74003021000 Bushing 8.2 x 12 x 6(As required) |
74003021000 |
US $2.14 |
||
|
62
|
62
51103053051 Bushing 8,2x10x20(As required) |
51103053051 |
US $3.06 |
||
