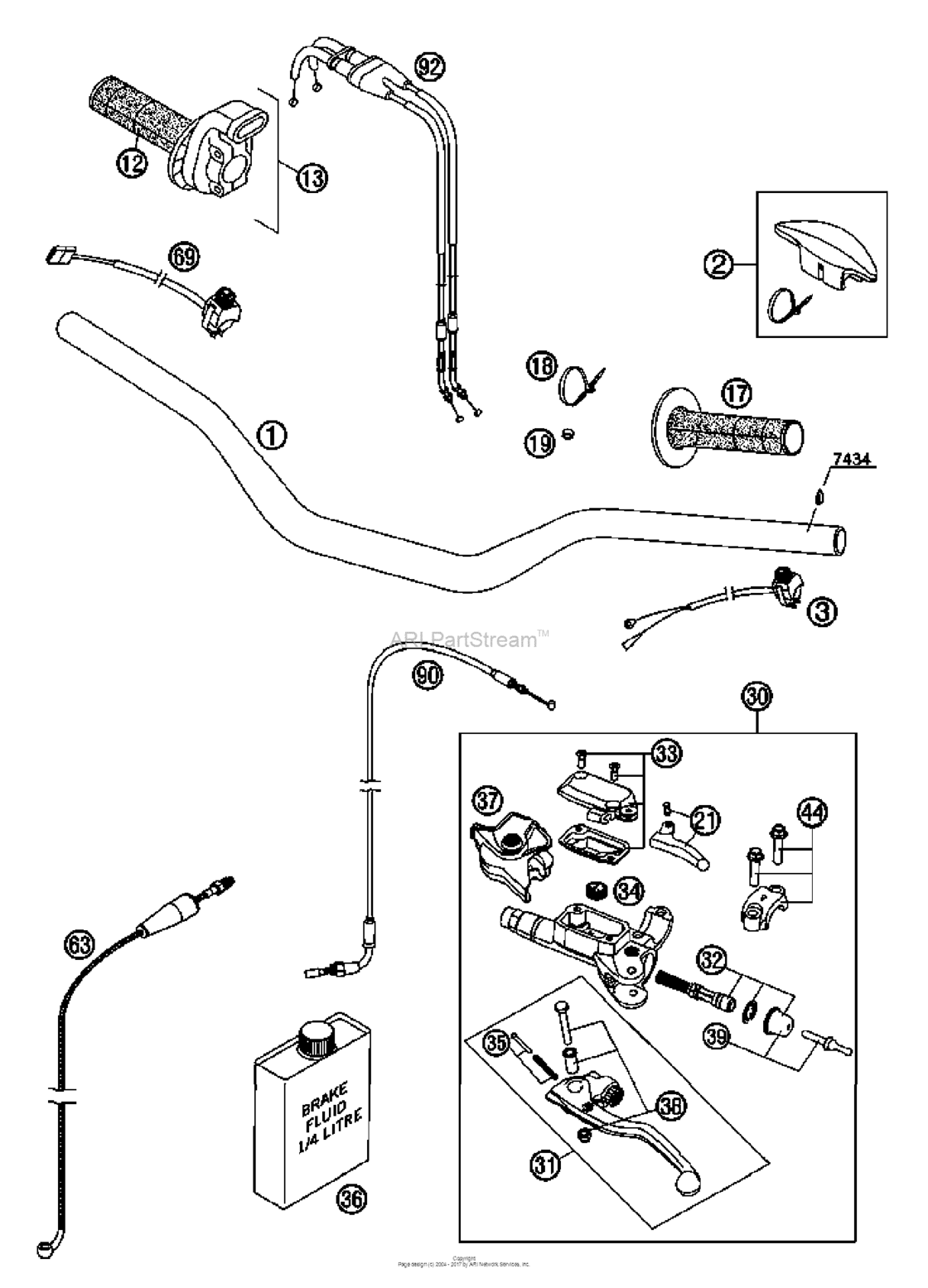

Handlebar, Controls Diagram KTM 250 250 XCF-W
- Year
- 2007
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XCF-W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59002001000
Handlebar 28mm high 2000
(As required) |
59002001000 |
— | ||
| replacement | |||||
|
1
|
1
5900210120017 HANDLEBAR D=28MM(As required) |
5900210120017 |
US $226.27 |
||
|
2
|
2
59002002000
Superseded By 77202002100
(As required) |
59002002000 |
— | ||
|
3
|
3
50311089200 Short Circuit Button 02(As required) |
50311089200 |
US $50.97 |
||
|
12
|
12
54802013000
Grip-Set Gray/orange 09
Not Available
(As required) |
54802013000 |
— | ||
| replacement | |||||
|
12
|
12
54802021200 Grip-set gray/orange 09(As required) |
54802021200 |
US $28.29 |
||
|
13
|
13
59402010000 Throttle Grip Cpl(As required) |
59402010000 |
US $73.87 |
||
| replacement | |||||
|
13
|
13
78102010000 Throttle Grip Cpl(As required) |
78102010000 |
US $71.72 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
(As required) |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 09(As required) |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076100 Cable tie 100/2,5mm black(As required) |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
18
|
18
44011076140 Cable tie 140/2,5mm black(As required) |
44011076140 |
US $0.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
19
|
19
50301089000 Spacer bushing 6x10x5(As required) |
50301089000 |
US $1.58 |
||
|
21
|
21
77002047000
Hot start lever cpl. 07
(As required) |
77002047000 |
— | ||
|
30
|
30
77002030044 Master cylinder cpl. 07(As required) |
77002030044 |
US $237.52 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 06(As required) |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 06(As required) |
54802032000 |
US $43.21 |
||
|
33
|
33
77002003000 Cover hyd. clutch cpl. 07(As required) |
77002003000 |
US $41.68 |
||
|
34
|
34
54802051000 Valve(As required) |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.(As required) |
54802052000 |
US $26.49 |
||
|
36
|
36
306054
Brake fluid dot 4.0
(As required) |
306054 |
— | ||
|
37
|
37
54802037000 Protection cap 06(As required) |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 06(As required) |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.(As required) |
54802046000 |
US $20.01 |
||
|
44
|
44
54802005100 Clamp cpl. 06(As required) |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 06(As required) |
54832063000 |
US $87.04 |
||
|
69
|
69
59411074000 Starter control 04(As required) |
59411074000 |
US $39.17 |
||
| replacement | |||||
|
69
|
69
78111074000 Starter Button Grey 13(As required) |
78111074000 |
US $58.31 |
||
|
90
|
90
77002096000 Hot start cable 05(As required) |
77002096000 |
US $21.83 |
||
|
92
|
92
77002091000 Throttle cable 250 sxf 2005(As required) |
77002091000 |
US $80.70 |
||
