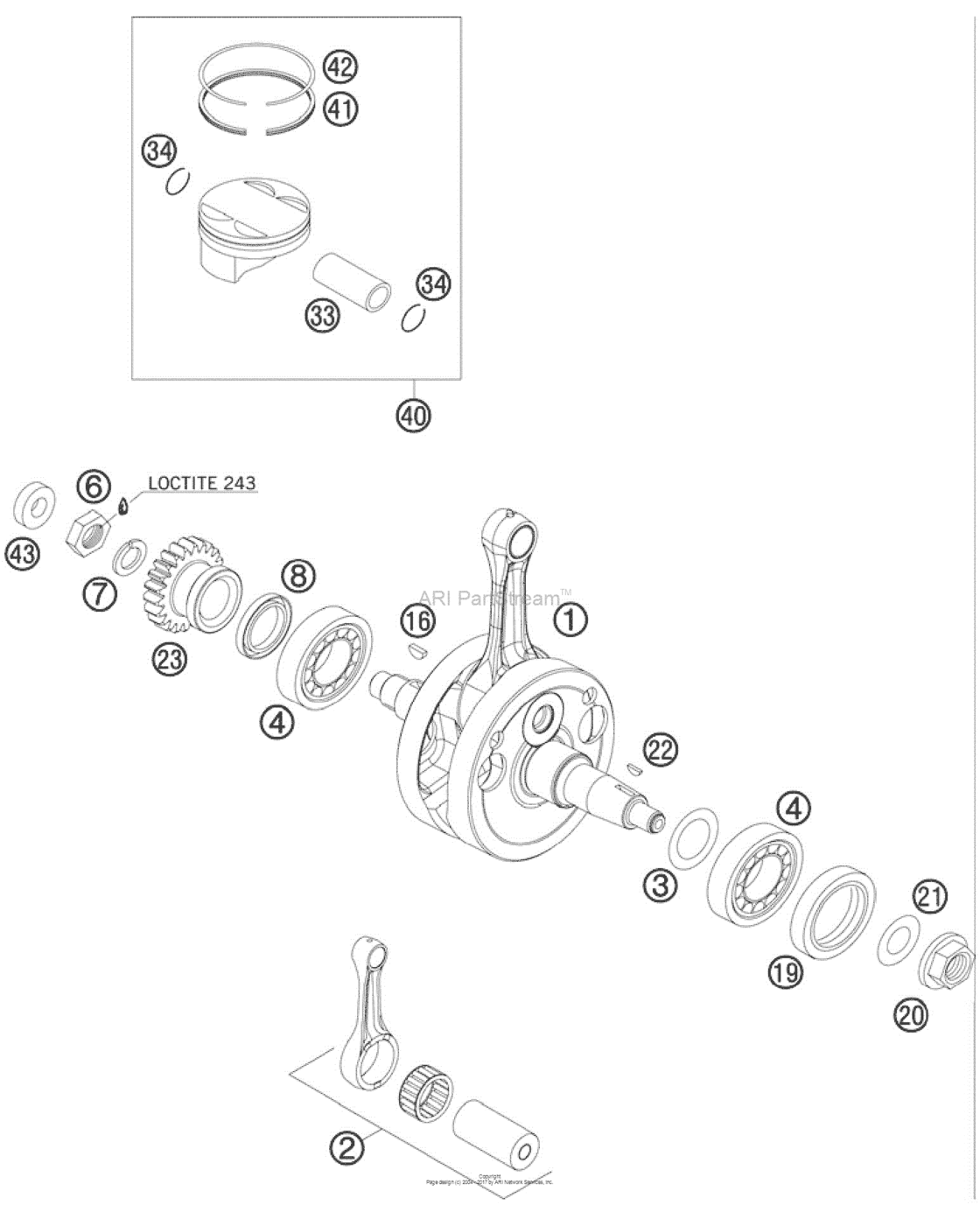

Crankshaft, Piston Diagram KTM 250 250 XCF-W SD
- Year
- 2011
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- 250 XCF-W SD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7703011830
Crankshaft Cpl. Exc-F
2003 |
7703011830 |
— | ||
|
2
|
2
77030015144
Con. rod rep. set 05
05 |
77030015144 |
— | ||
| replacement | |||||
|
2
|
2
77030015344 Connect. Rod Repair Set05 |
77030015344 |
US $626.23 |
||
|
3
|
3
56030081000 Thrust washer 30,5x45x0,10(As Required) |
56030081000 |
US $0.43 |
||
|
3
|
3
56030081100 Thrust washer 30,7x47x0,15(As Required) |
56030081100 |
US $0.94 |
||
|
3
|
3
56030081200 Thrust washer 30,5x45x0,30(As Required) |
56030081200 |
US $1.21 |
||
|
4
|
4
50330082000 Cyl.roller Bear.nj206 Et2Xcs46(As Required) |
50330082000 |
US $91.46 |
||
|
6
|
6
54630029000 Hex.nut l/sh m18x1,5(As Required) |
54630029000 |
US $9.13 |
||
|
7
|
7
58132072000 Lock washer vsk 18(As Required) |
58132072000 |
US $1.09 |
||
|
8
|
8
0760354240 Sh.seal ring 35x42x4 b10fnib(As Required) |
0760354240 |
US $3.79 |
||
|
16
|
16
6946005 Woodruff Key 5X6,5 Harded(As Required) |
6946005 |
US $0.92 |
||
|
19
|
19
0760304240 Sh. seal ring 30x42x4 b10f(As Required) |
0760304240 |
US $3.21 |
||
|
20
|
20
49030021000 Collar nut m12x1 r/s(As Required) |
49030021000 |
US $10.57 |
||
|
21
|
21
0137120000 Spring washer din0137-b12(As Required) |
0137120000 |
US $0.39 |
||
|
22
|
22
0888030050 Woodruff Key Din6888-3X5X13(As Required) |
0888030050 |
US $2.60 |
||
|
23
|
23
77032000122
Primary gear 22t. 05
05 (As Required) |
77032000122 |
— | ||
| replacement | |||||
|
23
|
23
77132000022 Primary Gear 22T05 (As Required) |
77132000022 |
US $95.76 |
||
|
33
|
33
77030033000 Piston pin bolt d=16mm 0505 |
77030033000 |
US $25.30 |
||
|
34
|
34
77030074000 Circlip 0505 |
77030074000 |
US $2.86 |
||
|
40
|
40
77030007700I
Piston d=76
05 |
77030007700I |
— | ||
| replacement | |||||
|
40
|
40
77130007100I
Piston Cpl. D=76Mm
05 |
77130007100I |
— | ||
|
40
|
40
77030007700II
Piston d=76
05 |
77030007700II |
— | ||
| replacement | |||||
|
40
|
40
77130007100II Piston Cpl. D=76Mm05 |
77130007100II |
US $510 |
||
|
41
|
41
77030032300
Oil scraper ring
05 |
77030032300 |
— | ||
| replacement | |||||
|
41
|
41
77130032000 Oil Scraper Ring05 |
77130032000 |
US $53.33 |
||
|
42
|
42
77030030200 Compression ring05 |
77030030200 |
US $50.07 |
||
|
43
|
43
0760142460 Shaft seal ring 14x24x6 b05 |
0760142460 |
US $11.70 |
||
