	Description	OEM Part #	Price
1	1 77730118000 Crankshaft Cpl 08-14	77730118000	US $1,009.94
2	2 77730015144 Connecting Rod Repair Set 08-14	77730015144	US $512.60
3	3 0988324510 Thrust Washer 988St 32X0,1 As Required	0988324510	US $0.27
3	3 0988324515 Thrust Washer 988St 32X0,15 As Required	0988324515	US $0.27
3	3 0988324530 Thrust Washer 988St 32X0,30 As Required	0988324530	US $0.22
4	4 77330082200 Bearing Nj 206 Ecp/hn3C4Hva624 As Required	77330082200	US $85.58
6	6 77230029000 Nut primary wheel As Required	77230029000	US $14.99
	replacement
6	6 0910001801000S Nut primary wheel As Required	0910001801000S	US $14.99
7	7 0760304772 Sh.seal Ring 30X47X7 Bsl Viton As Required	0760304772	US $26.23
8	8 0760405560 Shaft seal ring a40x55x6 viton As Required	0760405560	US $13.04
9	9 77232022000 Spacer Bushing Primary Gear As Required	77232022000	US $22.27
11	11 0019050106S Int. Torx Flat Head M5X10 10.9 As Required	0019050106S	US $0.27
13	13 75030085000 Retaining plate f. cs bearing As Required	75030085000	US $4.08
14	14 77339010100 Flywheel screw As Required	77339010100	US $4.66
22	22 0888030037 Woodruff key din6888-3x3,7 As Required	0888030037	US $0.58
23	23 77232023024 Primary Gear 24T As Required	77232023024	US $83.40
33	33 77730033200 Piston Pin As Required	77730033200	US $49.79
34	34 77730074000 Circlip 16X1.4 Mm As Required	77730074000	US $11.31
40	40 77730007100I Piston I Cpl. 250 As Required	77730007100I	—
40	40 77730007100II Piston Ii Cpl. 250 As Required	77730007100II	—
41	41 77730032000 Scraper Ring 250 As Required	77730032000	US $55.61
42	42 77730030000 Compressionring 250 As Required	77730030000	US $37.15
98	98 00050002311 Crankshaft Rep. Kit Sx-F 13-15 13-15, As Required	00050002311	US $177.40
99	99 00050000222 Piston Kit Gr.i 250 Sx-F13-14 13-14, As Required	00050000222	US $463.95
99	99 00050000223 Piston Kit Gr.ii 250 Sx-F 13 As Required	00050000223	US $463.95

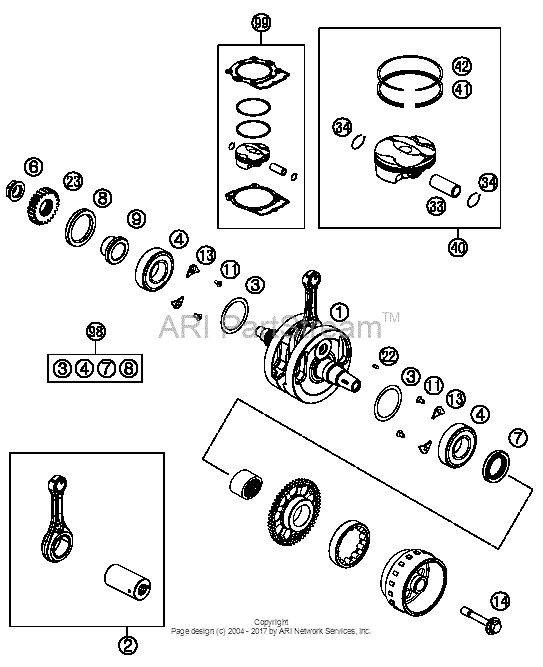

Crankshaft, Piston Diagram KTM 250 250 XCF-W US/EU 18085366-939663

Crankshaft, Piston Diagram KTM 250 250 XCF-W US/EU 18085366-939663
