Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 77733110000 Countershaft 11-14, As Required	77733110000	US $124.46
2	2 78033132000 Tab washer bearing count.shaft 11-14, As Required	78033132000	US $4.15
3	3 0019050121S Int. Torx Flat Head M5X12 T25 11-14, As Required	0019050121S	US $0.66
4	4 77733011000 Idler Gear 1St G. T=32 11-14, As Required	77733011000	US $88.33
5	5 77733112000 Idler Gear 2Nd G. T=30 11-14, As Required	77733112000	US $74.99
6	6 77733114100 Idler Gear 4.g. Z=28 11-14, As Required	77733114100	US $72.54
7	7 77733115100 Sliding Gear 5.g.,z=23 11-14, As Required	77733115100	US $97.39
8	8 72033016000 Sliding Gear 6Th Gear, 20T 11-14, As Required	72033016000	US $102.39
9	9 0417024000 Circlip Ws24 11-14, As Required	0417024000	US $0.95
10	10 77733113100 Idler Gear 3.g. Z=24 11-14, As Required	77733113100	US $73.88
11	11 59033034044 Screw 10.9+Spring Washer 11-14, As Required	59033034044	US $9.01
12	12 0405202612 Needle bearing k 20x26x12 11-14, As Required	0405202612	US $10.90
13	13 0405242812 Neddle bear. k24x28x11,9 div. 11-14, As Required	0405242812	US $6.12
14	14 0405222611 Needle bear.k 22x26x10 divided 11-14, As Required	0405222611	US $12.41
15	15 49030023000 Cyl.roll Bearing Nj205 11-14, As Required	49030023000	US $67.86
16	16 0625062035 Ball bearing 6203 jr2 c3 11-14, As Required	0625062035	US $12.95
17	17 0471170015 Circlip din 0471-17x1, 5 11-14, As Required	0471170015	US $0.66
18	18 50033029012 Front sprocket 12-t 11-14, As Required	50033029012	US $33.59
18	18 50033029013 Sprocket 13T As Required	50033029013	—
	replacement
18	18 79233029013 Sprocket 13T As Required	79233029013	US $33.08
18	18 50033029014 Front sprocket 14-t As Required	50033029014	—
	replacement
18	18 79233029014 Sprocket 14T As Required	79233029014	US $34.80
19	19 77733043000 Stop Disc 23,4X31X1,5 As Required	77733043000	US $2.28
20	20 77233020000 Stop Disk 17,2X30X1,3 As Required	77233020000	US $3.42
21	21 54633014100 Spacer bushing 12mm As Required	54633014100	—
	replacement
21	21 76633030012 Spacer bushing 12mm As Required	76633030012	US $15.16
22	22 0760324571 Shaft seal ring 32x45x7 bslnbr As Required	0760324571	US $6.61
23	23 0770020220 O-ring 25,12x1,78 nbr70 As Required	0770020220	US $3.89
24	24 54833080000 Stop Disc 20,2X30X1 As Required	54833080000	US $2.35
25	25 77733044000 Stop Disc 24X32X1,5 As Required	77733044000	US $3.42
99	99 00050000941 Counter Shaft Rep.kit 4 Stroke As Required	00050000941	US $36.26

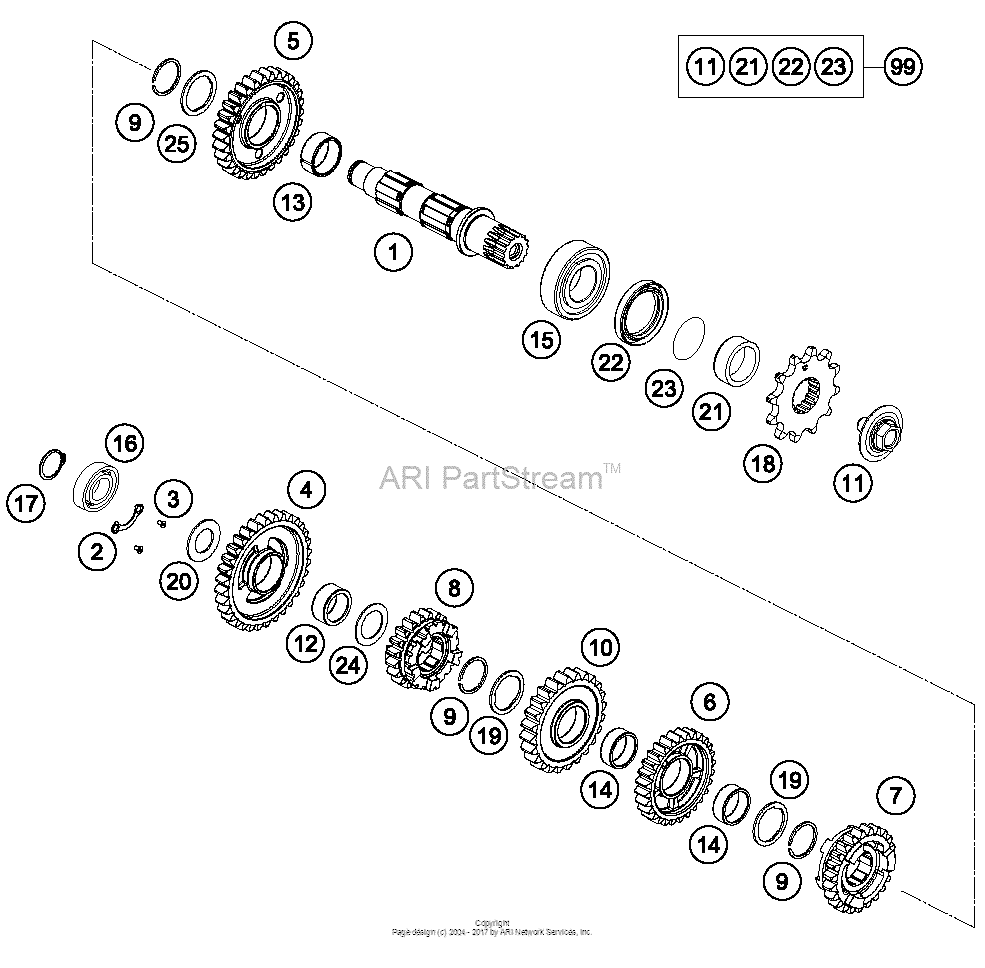

Transmission Ii - Countershaft Diagram KTM 250 250 XCF-W US/EU 18085378-939663

Transmission Ii - Countershaft Diagram KTM 250 250 XCF-W US/EU 18085378-939663
