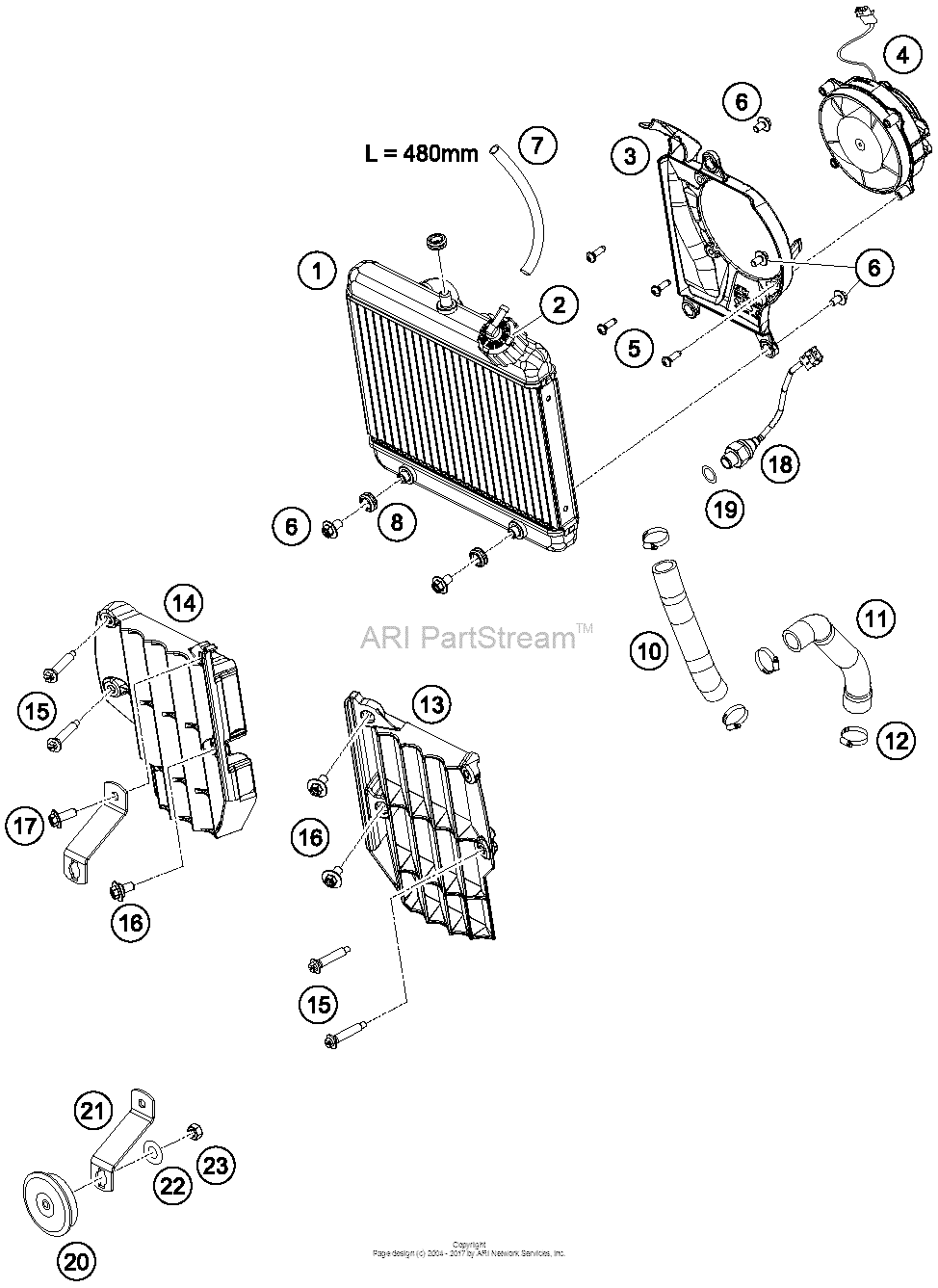

Cooling System Diagram KTM 250 Freeride 250 R
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- Freeride 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72035010200 Radiator 15691UeTX30 |
72035010200 |
US $601.07 |
||
|
2
|
2
72035016000 Radiator Cap 1,8 BarTX30 |
72035016000 |
US $17.97 |
||
|
3
|
3
72035044000 Fan CowlTX30 |
72035044000 |
US $7.31 |
||
|
4
|
4
58435041000 Fan cpl. 12v lc4 20002000 |
58435041000 |
US $151.67 |
||
|
5
|
5
0081050161 Ejot pt screw k50x16 14512000 |
0081050161 |
US $0.66 |
||
|
6
|
6
0024060106 Hh collar screw m6x10 tx30TX30 |
0024060106 |
US $4.35 |
||
|
7
|
7
50335030001 Pvc-Hose 6X9TX30 |
50335030001 |
US $5.12 |
||
|
8
|
8
58414019000 Rubber grommet 11 x 19 x 9 '9696 |
58414019000 |
US $8.11 |
||
|
10
|
10
72535025000 Preformed Hose Eng.-Cooler R/s96 |
72535025000 |
US $9.04 |
||
|
11
|
11
72535026000 Preformed Hose Cyl. - Cooler96 |
72535026000 |
US $9.42 |
||
|
12
|
12
10001020000 Hose Clamp 18-2996 |
10001020000 |
US $4.71 |
||
|
13
|
13
7203503400030 Radiator Protector L/s Black96 |
7203503400030 |
US $8.02 |
||
|
14
|
14
7203503500030 Radiator Protector R/s Black96 |
7203503500030 |
US $8.02 |
||
|
15
|
15
0017060305 Special Screw K60X30 Ws=696 |
0017060305 |
US $2.24 |
||
|
16
|
16
83008000012 Special screw m6x12x396 |
83008000012 |
US $1.92 |
||
|
17
|
17
0024060156 Hh collar screw m6x15 tx30TX30 |
0024060156 |
US $3.96 |
||
|
18
|
18
72035045000 Thermoswitch 95░C M14X1,5TX30 |
72035045000 |
US $73 |
||
|
19
|
19
07701300151 O-Ring 13,00X1,5 75Fkm 72NbrTX30 |
07701300151 |
US $1.46 |
||
|
20
|
20
50311060200 Dc horn 12v 0707 |
50311060200 |
US $28.14 |
||
|
21
|
21
78011061000 Horn bracket exc 0808 |
78011061000 |
US $3.71 |
||
|
22
|
22
0125050003 Washer Din0125-A 5,308 |
0125050003 |
US $2.18 |
||
|
23
|
23
0934050003 Hexagon Nut Din0934-M 508 |
0934050003 |
US $2.60 |
