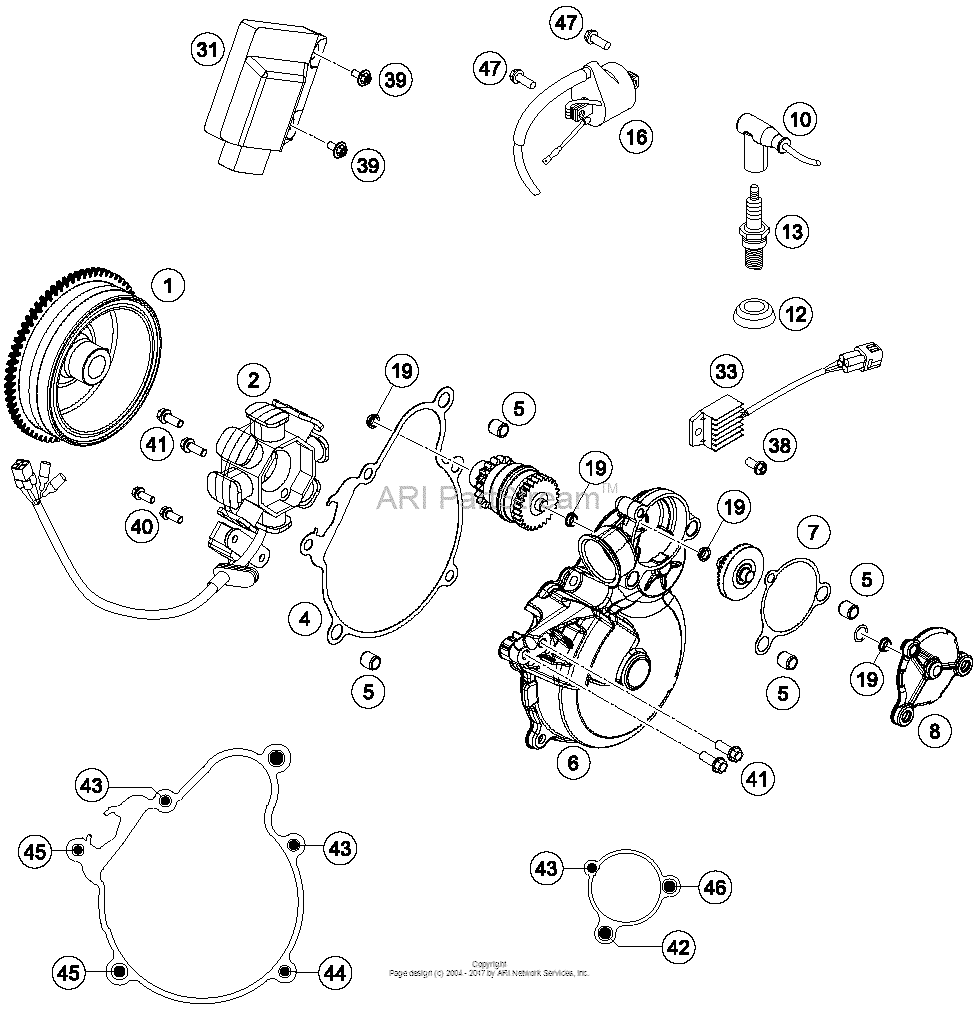

Ignition System Diagram KTM 250 Freeride 250 R
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 250
- Model
- Freeride 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55139005000 Flywheel kokusanAs Required, 08 |
55139005000 |
US $362.19 |
||
|
2
|
2
55139004000 Stator kokusanAs Required, 08 |
55139004000 |
US $187.51 |
||
| replacement | |||||
|
2
|
2
55139004100 StatorAs Required, 08 |
55139004100 |
US $187.51 |
||
|
4
|
4
55130040100 GasketAs Required, 08 |
55130040100 |
US $16.18 |
||
|
5
|
5
49030090000 Dowel 9,8 x 7 x 10As Required, 08 |
49030090000 |
US $5.54 |
||
| replacement | |||||
|
5
|
5
49030090100 Dowel 9,8 X7X10As Required, 08 |
49030090100 |
US $2.60 |
||
|
6
|
6
5513000234433 Ignition Cover CplAs Required, 08 |
5513000234433 |
US $164.75 |
||
|
7
|
7
55130041100 Ign. out side cov. gasket 0707 |
55130041100 |
US $7.99 |
||
|
8
|
8
5513004524433 Outer ignition cover cpl.07 |
5513004524433 |
US $26.16 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.0404 |
47039090000 |
US $24.26 |
||
|
12
|
12
50231012000 Sealing cup for spark plug04 |
50231012000 |
US $3.91 |
||
|
13
|
13
54739093000 Spark plug ngk br7es04 |
54739093000 |
US $4.15 |
||
|
16
|
16
59039006000 Ignitioncoil "ig5128"04 |
59039006000 |
US $132.38 |
||
|
19
|
19
55140030100 Collar bushing04 |
55140030100 |
US $2.87 |
||
|
31
|
31
72539031000 Cdi Unit 250 Freeride 1414 |
72539031000 |
US $381.09 |
||
| replacement | |||||
|
31
|
31
72539031200 CDI UNIT 250 FREERIDE 14 1414 |
72539031200 |
US $381.09 |
||
|
33
|
33
72511034000 Voltage Regulator14 |
72511034000 |
US $96.19 |
||
|
38
|
38
0025060126 Hh collar screw m6x12 tx30TX30 |
0025060126 |
US $3.96 |
||
|
39
|
39
0023060123 Collar screw m6x12 txTX30 |
0023060123 |
US $0.87 |
||
|
40
|
40
0014050123 Hh collar screw m 5x12 ws=6TX30 |
0014050123 |
US $2.19 |
||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
42
|
42
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
43
|
43
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
44
|
44
0025060306 Hh collar screw m6x30 tx30TX30 |
0025060306 |
US $3.96 |
||
|
45
|
45
0025060356 Hh collar screw m6x35 tx30TX30 |
0025060356 |
US $6.15 |
||
|
46
|
46
0025060706 Hh collar screw m6x70 tx30TX30 |
0025060706 |
US $1.82 |
||
|
47
|
47
0026060186 Collar Screw M6X18 Isa30TX30 |
0026060186 |
US $0.58 |
||
