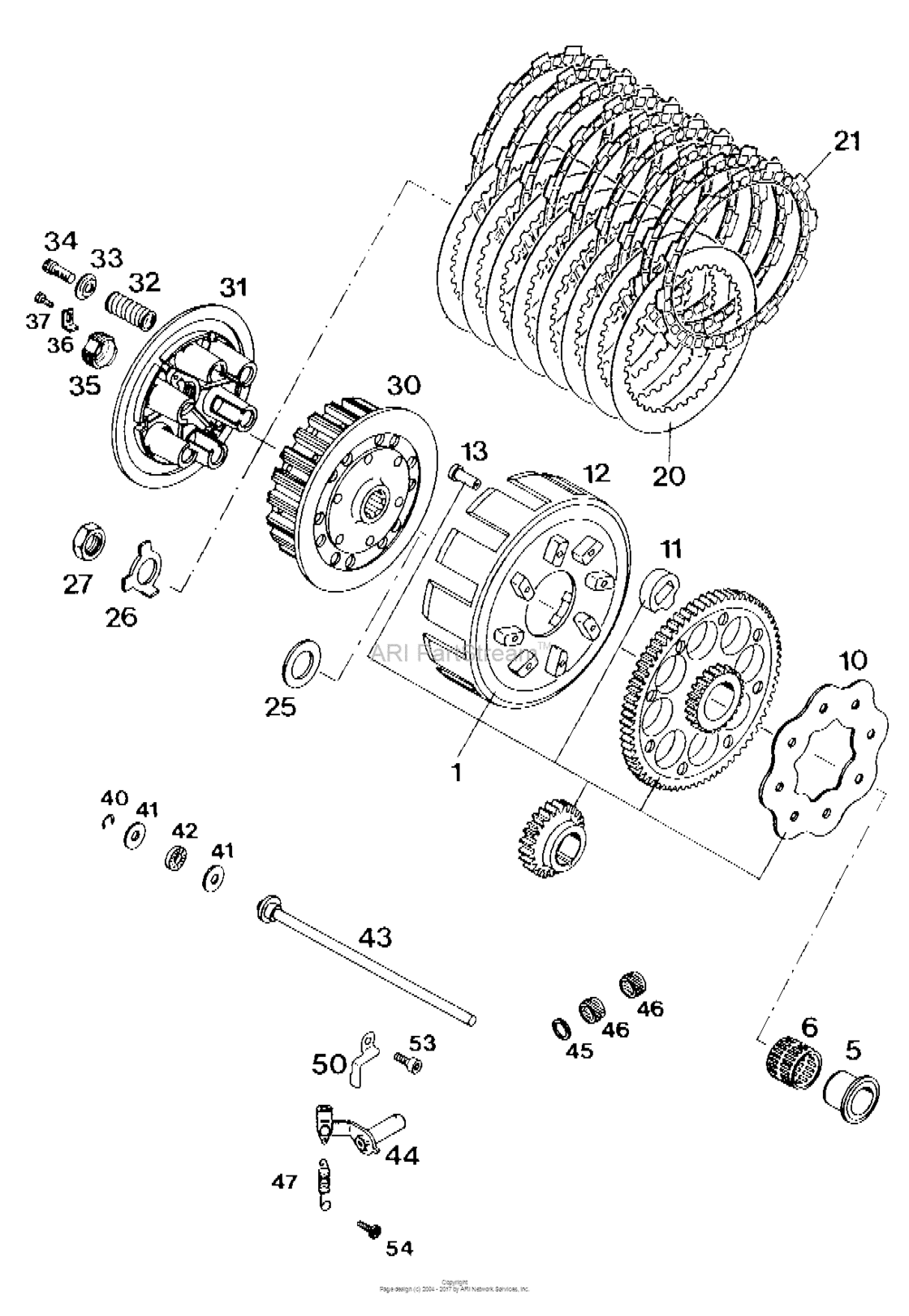

Clutch Diagram KTM 300 300 EGS
- Year
- 1994
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54632001272 Outer clutch hub 72t prim. 25t(As Required) |
54632001272 |
US $526.24 |
||
|
5
|
5
5033200000
Inner Bushing
(As Required) |
5033200000 |
— | ||
|
6
|
6
56532095000 Needle bearing k26x30x22zw.kse(As Required) |
56532095000 |
US $21.51 |
||
|
10
|
10
58132028000 Retaining plate(As Required) |
58132028000 |
US $6.87 |
||
|
11
|
11
58132026000 Damping element(As Required) |
58132026000 |
US $6.39 |
||
|
12
|
12
54632001200
Outer clutch hub loose
(As Required) |
54632001200 |
— | ||
|
13
|
13
0733060150 Clutch rivet din7338- 6x15(As Required) |
0733060150 |
US $7.02 |
||
|
20
|
20
54632012000 Steel Disc(As Required) |
54632012000 |
US $14.98 |
||
| replacement | |||||
|
20
|
20
54832012100 Steel disc(As Required) |
54832012100 |
US $8.48 |
||
|
21
|
21
54632011200 Lining Disc Fcc 04(As Required) |
54632011200 |
US $28.24 |
||
| replacement | |||||
|
21
|
21
54832011000 Lining disc fcc 04(As Required) |
54832011000 |
US $21.69 |
||
|
25
|
25
54632013000
Thrust Washer
(As Required) |
54632013000 |
— | ||
|
26
|
26
56532018000 Lock Washer(As Required) |
56532018000 |
US $4.73 |
||
|
27
|
27
0936181505 Hexagon Nut Din0936-M18X1,5 R(As Required) |
0936181505 |
US $7.60 |
||
|
30
|
30
54632002200 Inner clutch hub(As Required) |
54632002200 |
US $152.25 |
||
|
31
|
31
58132003000
Pressure cap
(As Required) |
58132003000 |
— | ||
|
32
|
32
54632080000 Clutch spring 2,5x43 8,5w(As Required) |
54632080000 |
US $5.76 |
||
|
33
|
33
58132081000 Spring retainer 6,2 x 20 x 3,2(As Required) |
58132081000 |
US $1.79 |
||
|
34
|
34
0912060163 Ah Screw Din0912-M 6X16(As Required) |
0912060163 |
US $1.29 |
||
|
35
|
35
54632004000 Adjustment screw m24x1(As Required) |
54632004000 |
US $16.85 |
||
|
36
|
36
54632005000
Adjustment plate
(As Required) |
54632005000 |
— | ||
|
37
|
37
0084040083 Cyl.head screw din0084-m 4x8 a(As Required) |
0084040083 |
US $0.27 |
||
|
40
|
40
0799050000 Tab washer din6799 rs5(As Required) |
0799050000 |
US $0.39 |
||
|
41
|
41
49032010050
Axial washer as619
(As Required) |
49032010050 |
— | ||
|
42
|
42
49032010000
Axial-bearing axk0619
(As Required) |
49032010000 |
— | ||
|
43
|
43
54632017244
Push rod 219 mm cpl
(As Required) |
54632017244 |
— | ||
|
44
|
44
54632014544
Clutch release shaft '93
93 |
54632014544 |
— | ||
|
45
|
45
54632090000 Seal ring dh/gr 12x16x393 |
54632090000 |
US $11.03 |
||
|
46
|
46
50232095000 Needle bearing hk 121093 |
50232095000 |
US $7.41 |
||
|
47
|
47
54632050500
Release lever spring l=33mm'93
93 |
54632050500 |
— | ||
|
50
|
50
54632016500
Release retaining plate '93
93 |
54632016500 |
— | ||
|
53
|
53
0912050123 Ah screw din0912-m 5x1293 |
0912050123 |
US $0.85 |
||
|
54
|
54
0985050103 Oval head scr. din7985-m 5x1093 |
0985050103 |
US $2.18 |
||
