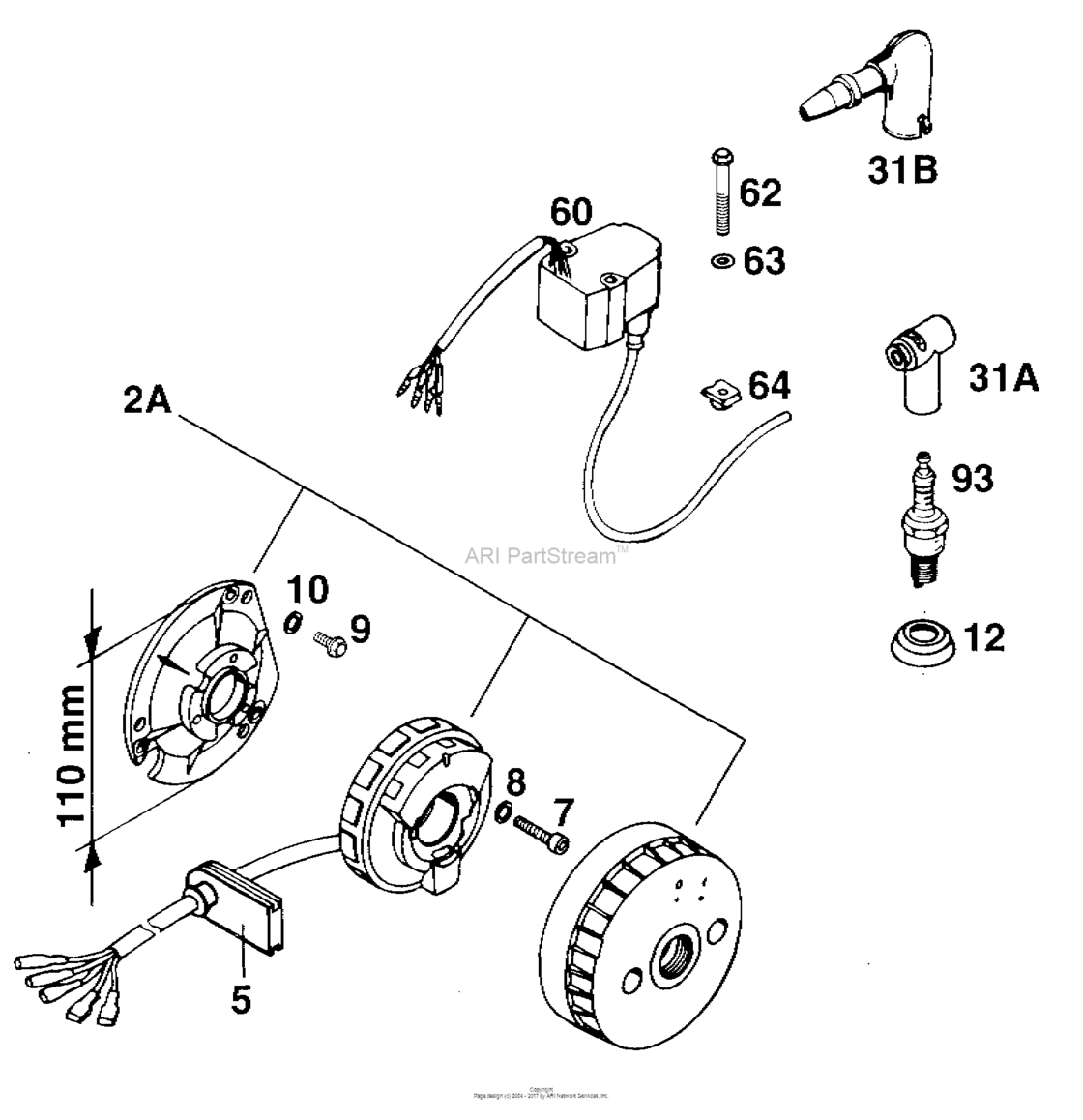

Ignition System Diagram KTM 300 300 EGS
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 EGS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2A
|
2A
54631602300
Ignition k11 cpl. '92
92 |
54631602300 |
— | ||
|
5
|
5
54631004300 Rubber passage92 |
54631004300 |
US $6.21 |
||
|
7
|
7
0912050303 Ah Screw Din0912-M 5X3092 |
0912050303 |
US $0.66 |
||
|
8
|
8
0125050003 Washer Din0125-A 5,392 |
0125050003 |
US $2.18 |
||
|
9
|
9
0015050123
Hh collar screw m 5x12 ws=8
92 |
0015050123 |
— | ||
| replacement | |||||
|
9
|
9
0025050126 Hh collar screw m5x12 tx3092 |
0025050126 |
US $3.38 |
||
|
10
|
10
0125050003 Washer Din0125-A 5,392 |
0125050003 |
US $2.18 |
||
|
12
|
12
50231012000 Sealing cup for spark plug92 |
50231012000 |
US $3.91 |
||
|
31A
|
31A
54531010000 Spark Plug ProtectNGK |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
31A
|
31A
47039090000 Spark plug cap ngk reinforc.04NGK |
47039090000 |
US $24.26 |
||
|
31B
|
31B
51031010200 Spark plug cap meritNGK |
51031010200 |
US $27.74 |
||
|
60
|
60
54631606100
Ignition modul tm 14-07
91 |
54631606100 |
— | ||
|
62
|
62
0015060453
Hh collar screw m 6x45 ws=8
91 |
0015060453 |
— | ||
| replacement | |||||
|
62
|
62
0025060456 Hh collar screw m6x45 tx3091 |
0025060456 |
US $1.89 |
||
|
63
|
63
0125060003 Washer Din0125-A 6,491 |
0125060003 |
US $0.37 |
||
|
64
|
64
50235033300
Snap-nut holder m6 kp142
KP142 |
50235033300 |
— | ||
| replacement | |||||
|
64
|
64
54603048100 Range Change Metal Nut M6KP142 |
54603048100 |
US $5.27 |
||
|
93
|
93
54531093009
Superseded By 54331093410
KP142 |
54531093009 |
— | ||
