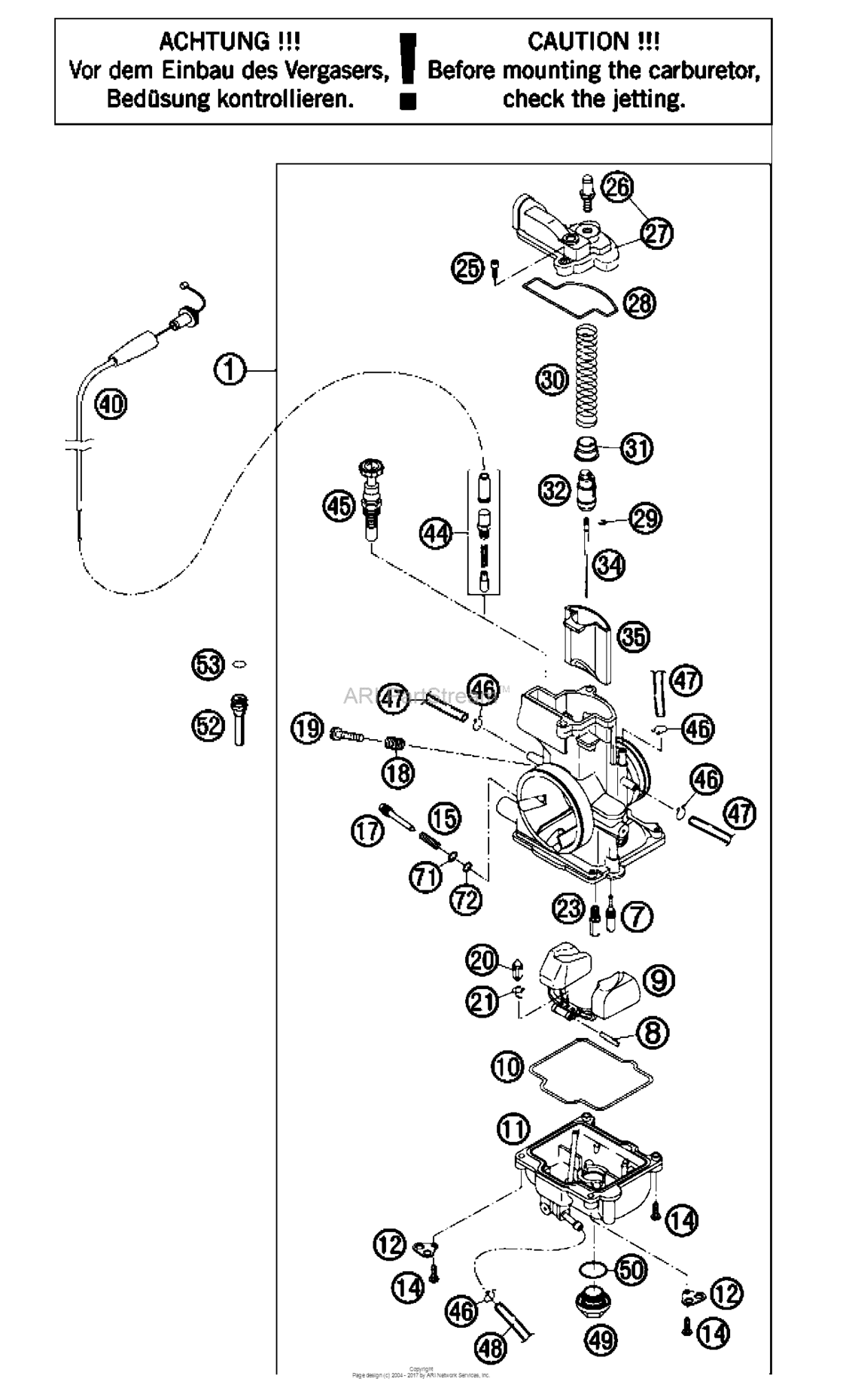

Carburetor Diagram KTM 300 300 EXC-E
- Year
- 2008
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 EXC-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54831101044
Carburetor Pwk36-S Ag Only For Aus
04;(As required) |
54831101044 |
— | ||
|
1
|
1
54831101844
Carb. keih. pwk 36s ag fk24 08
08;(As required) |
54831101844 |
— | ||
| replacement | |||||
|
1
|
1
54831201444 Carb. Keih. Pwk 36S Ag Bc4 1108;(As required) |
54831201444 |
US $536.84 |
||
|
7
|
7
54531607035 Idle jet 35 keihin(As required) |
54531607035 |
US $13.86 |
||
|
7
|
7
54531607038 Idle jet 38 keihin(As required) |
54531607038 |
US $12.22 |
||
|
7
|
7
54531607040 Idle jet 40 keihin(As required) |
54531607040 |
US $11.83 |
||
|
7
|
7
54531607042 Idle jet 42 keihin(As required) |
54531607042 |
US $12.16 |
||
|
7
|
7
54531607045 Idle jet 45 keihin(As required) |
54531607045 |
US $11.95 |
||
|
7
|
7
54531607048 Idle jet 48 keihin(As required) |
54531607048 |
US $11.63 |
||
|
7
|
7
54531607050 Idle jet 50 keihin(As required) |
54531607050 |
US $11.48 |
||
|
8
|
8
57331008000 Arm pin float(As required) |
57331008000 |
US $1.63 |
||
|
9
|
9
57331009000 Float cpl.(As required) |
57331009000 |
US $60.62 |
||
|
10
|
10
54831010000 Gasket float chamber(As required) |
54831010000 |
US $9.45 |
||
|
11
|
11
54831011000 Float chamber pwk38-s ag(As required) |
54831011000 |
US $77.95 |
||
|
12
|
12
54531612100 Retaining plate for bleeder(As required) |
54531612100 |
US $2.09 |
||
|
14
|
14
0016040163 Hh collar screw m 4x16 ws=6WS=6 |
0016040163 |
US $0.66 |
||
| replacement | |||||
|
14
|
14
0016040133 Hh collar screw m 4x13 ws=6WS=6 |
0016040133 |
US $0.53 |
||
|
15
|
15
54531615000 Spring for adjustment screwWS=6 |
54531615000 |
US $2.75 |
||
|
17
|
17
54531617000 Adjustment screwWS=6 |
54531617000 |
US $7.60 |
||
|
18
|
18
54631118000 SpringWS=6 |
54631118000 |
US $9.66 |
||
|
19
|
19
54631219100 Adjustment screw m 5WS=6 |
54631219100 |
US $15.33 |
||
|
20
|
20
54631220000 Float needleWS=6 |
54631220000 |
US $33.66 |
||
|
21
|
21
54531621000 ClampWS=6 |
54531621000 |
US $3.18 |
||
|
23
|
23
54531623150 Main jet 150 keihin(As required) |
54531623150 |
US $11.83 |
||
|
23
|
23
54531623152 Main jet 152 keihin(As required) |
54531623152 |
US $11.83 |
||
|
23
|
23
54531623155 Main jet 155 keihin(As required) |
54531623155 |
US $12.02 |
||
|
23
|
23
54531623158 Main jet 158 keihin(As required) |
54531623158 |
US $12.24 |
||
|
23
|
23
54531623160 Main jet 160 keihin(As required) |
54531623160 |
US $13.16 |
||
|
23
|
23
54531623162 Main jet 162 keihin(As required) |
54531623162 |
US $12.67 |
||
|
23
|
23
54531623165 Main jet 165 keihin(As required) |
54531623165 |
US $12.92 |
||
|
23
|
23
54531623168 Main jet 168 keihin(As required) |
54531623168 |
US $13.07 |
||
|
23
|
23
54531623170 Main jet 170 keihin(As required) |
54531623170 |
US $12.75 |
||
|
23
|
23
54531623172 Main Jet 172 Keihin(As required) |
54531623172 |
US $12.84 |
||
|
23
|
23
54531623175 Main Jet 175 Keihin(As required) |
54531623175 |
US $12.84 |
||
|
25
|
25
54831025000 Special-ah-screw m 4x12(As required) |
54831025000 |
US $2.99 |
||
|
26
|
26
54831029000 Throttle calbe holder m6x0,75(As required) |
54831029000 |
US $14.13 |
||
|
27
|
27
54831127000 Carburetor cover pwk36-s ag(As required) |
54831127000 |
US $56.71 |
||
|
28
|
28
54831028000 Gasket for carburetor cover(As required) |
54831028000 |
US $7.02 |
||
|
29
|
29
54531629000 Clip for jet needle(As required) |
54531629000 |
US $2.82 |
||
|
30
|
30
54831030000 Sliding spring(As required) |
54831030000 |
US $9.88 |
||
|
31
|
31
54631231000 Spring cap(As required) |
54631231000 |
US $10.57 |
||
|
32
|
32
54631232000 Nipple(As required) |
54631232000 |
US $39.15 |
||
|
34
|
34
54531636007 Jet needle noz g keihin(As required) |
54531636007 |
US $20.76 |
||
|
34
|
34
54731034600
Jet needle keihin n3cj 04
04;(As required) |
54731034600 |
— | ||
|
34
|
34
54731134100 Jet needle keihin n2zw 0808;(As required) |
54731134100 |
US $14.52 |
||
|
34
|
34
54731134200 Jet needle keihin n2zj 0808;(As required) |
54731134200 |
US $15.47 |
||
|
34
|
34
54731134300
Jet Needle Keihin N2Zwg
08;(As required) |
54731134300 |
— | ||
|
34
|
34
54831035000 Jet needle keihin n8rf 0606;(As required) |
54831035000 |
US $11.59 |
||
|
34
|
34
54831035100 Jet needle keihin n8rg 0606;(As required) |
54831035100 |
US $27.29 |
||
|
34
|
34
54831035300 Jet needle keihin n8re 0606;(As required) |
54831035300 |
US $12.10 |
||
|
34
|
34
54831035400 Jet needle keihin n8rh 0606;(As required) |
54831035400 |
US $14.67 |
||
|
34
|
34
54831035500 Jet needle keihin n8rw 0707;(As required) |
54831035500 |
US $11.58 |
||
|
34
|
34
54831035600 Jet needle keihin n8rj 0707;(As required) |
54831035600 |
US $11.85 |
||
|
35
|
35
54631035000 Throttle valve 7 for 38 pj '00'00 |
54631035000 |
US $241.79 |
||
|
40
|
40
54831078000 Cable F. Cold Start Act. 0808 |
54831078000 |
US $29.24 |
||
|
44
|
44
58502096044 Connect. Cold Start Cable Cpl08 |
58502096044 |
US $31.01 |
||
|
45
|
45
54631245000 Starter piston cpl.08 |
54631245000 |
US $91.65 |
||
|
46
|
46
54531696000 Clamp 6 mm08 |
54531696000 |
US $2.11 |
||
|
47
|
47
31007007101 Pvc-hose 4x6mm08 |
31007007101 |
US $2.38 |
||
|
48
|
48
52031137001 Pvc-hose 3x5mm(As required) |
52031137001 |
US $6 |
||
|
49
|
49
54531699000 Plug m 18x1(As required) |
54531699000 |
US $20.21 |
||
|
50
|
50
0770180230 O-ring 18,00x2,30 nbr 70(As required) |
0770180230 |
US $2.02 |
||
|
52
|
52
52331029000 Slide stop l=36 08L=36 08;(As required) |
52331029000 |
US $6.58 |
||
|
53
|
53
0770060018 O-ring 6,00x1,78(As required) |
0770060018 |
US $1.45 |
||
|
71
|
71
54831071000 Washer adjusting screw(As required) |
54831071000 |
US $1.70 |
||
|
72
|
72
54831072000 O-ring adjusting screw(As required) |
54831072000 |
US $1.97 |
||
