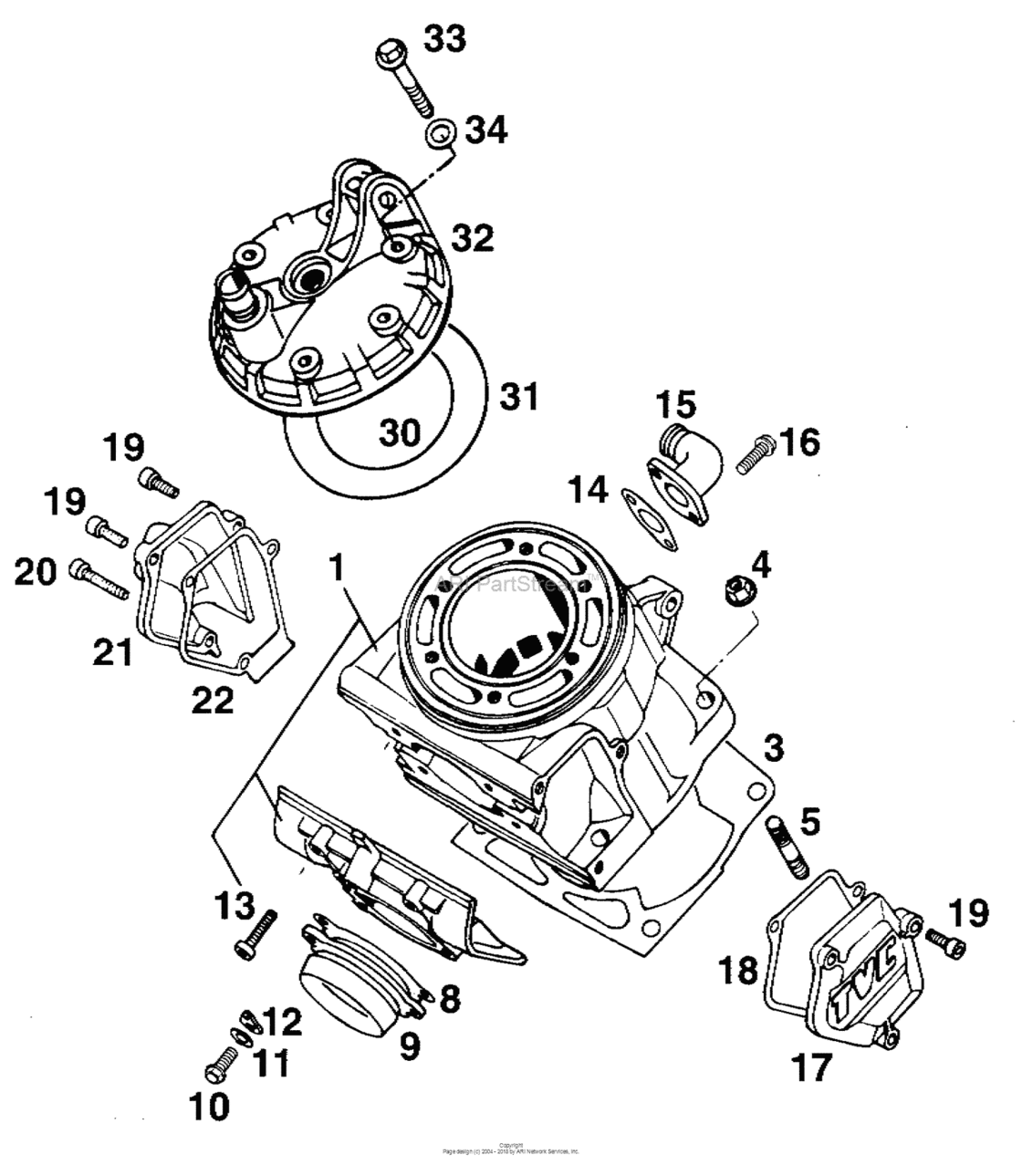

Cylinder Diagram KTM 300 300 EXC
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 EXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54630005444
Cylinder cpl.with flange '93
250'93 |
54630005444 |
— | ||
|
1
|
1
54630305444
Cylinder cpl.w.flange 300cc'93
300'93 |
54630305444 |
— | ||
|
3
|
3
54630030003
Cylinder base gasket 0,30mm
(As Required) |
54630030003 |
— | ||
|
3
|
3
54630030005
Cyl,base Gasket
(As Required) |
54630030005 |
— | ||
| replacement | |||||
|
3
|
3
54630030105 Cylinder base gasket 0,50mm'96(As Required) |
54630030105 |
US $5.08 |
||
|
3
|
3
54630030010 Cylinder base gasket 1mm oilit(As Required) |
54630030010 |
US $7.53 |
||
|
4
|
4
54630044000 Collar nut m10 ws=13SW=13 |
54630044000 |
US $2.16 |
||
|
5
|
5
0835100351 Stud din0835-m10x35SW=13 |
0835100351 |
US $4.32 |
||
|
8
|
8
54630046000 Exhaust flange gasketSW=13 |
54630046000 |
US $9.93 |
||
|
9
|
9
54605073000 Exhaust flangeSW=13 |
54605073000 |
US $59.30 |
||
|
10
|
10
0015060163 Hh Collar Screw M 6X16 Ws=8SW=13 |
0015060163 |
US $2.23 |
||
|
11
|
11
0137060000
Spring Washer Din0137-B 6
SW=13 |
0137060000 |
— | ||
| replacement | |||||
|
11
|
11
0137060003 Spring Washer Din0137-B 6SW=13 |
0137060003 |
US $0.43 |
||
|
12
|
12
51005074000 Retaining plateSW=13 |
51005074000 |
US $2.11 |
||
|
13
|
13
0912060303 Ah screw din0912-m 6x30SW=13 |
0912060303 |
US $1.60 |
||
|
14
|
14
54435037000 GasketSW=13 |
54435037000 |
US $1.41 |
||
|
15
|
15
50235006000
Connecting tube 125/iv
SW=13 |
50235006000 |
— | ||
|
16
|
16
0015060203
Hh Collar Screw M 6X20 Ws=8
SW=13 |
0015060203 |
— | ||
| replacement | |||||
|
16
|
16
0025060206 Hh collar screw m6x20 tx30SW=13 |
0025060206 |
US $1.97 |
||
|
17
|
17
54637105000 Control cover l/sSW=13 |
54637105000 |
US $24.89 |
||
|
18
|
18
54637106000 Gasket for side coverSW=13 |
54637106000 |
US $3.89 |
||
|
19
|
19
0912050123 Ah screw din0912-m 5x12SW=13 |
0912050123 |
US $0.85 |
||
|
20
|
20
0912050303 Ah Screw Din0912-M 5X30SW=13 |
0912050303 |
US $0.66 |
||
|
21
|
21
54637005000 Control cover r/sSW=13 |
54637005000 |
US $26.21 |
||
|
22
|
22
54637006100 Gasket for control coverSW=13 |
54637006100 |
US $6.14 |
||
|
30
|
30
0770740021
Silic.o-Ring
250 CC |
0770740021 |
— | ||
| replacement | |||||
|
30
|
30
0770760021 O-ring 76,00x2,00 viton250 CC |
0770760021 |
US $5.10 |
||
|
30
|
30
0770780021
Silic.o-Ring
300 CC |
0770780021 |
— | ||
| replacement | |||||
|
30
|
30
0770800021 O-Ring 80,00X2,00 Viton300 CC |
0770800021 |
US $7.48 |
||
|
31
|
31
0770114020 O-ring 114,00x2,00 silicone300 CC |
0770114020 |
US $7.28 |
||
|
32
|
32
54630006500
Cylinder head 250 '95
250'95 |
54630006500 |
— | ||
|
32
|
32
54630306500
Cylinder head 300 '95
300'95 |
54630306500 |
— | ||
|
33
|
33
56530079000
Collar screw m8x42 ws=13 10.9
300'95 |
56530079000 |
— | ||
| replacement | |||||
|
33
|
33
56530079000S Hh Collar Screw M8X44 Ws13300'95 |
56530079000S |
US $1.60 |
||
|
34
|
34
56530080000 Cu-seal ring 8 x 16 x 1300'95 |
56530080000 |
US $2.24 |
||
