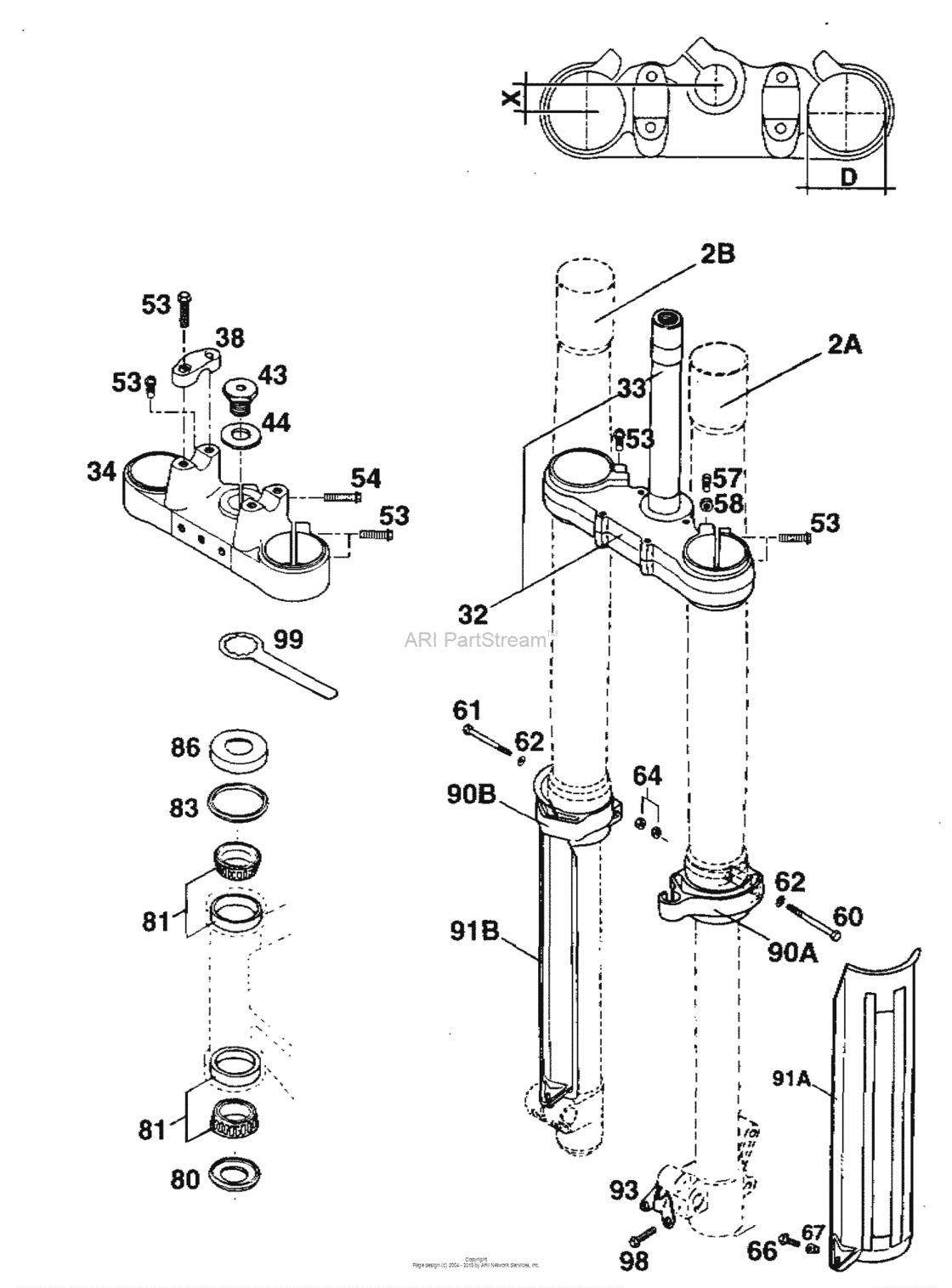

Front Fork Equipment Wp Diagram KTM 300 300 MXC
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2A
|
2A
50201602200
Fork Leg L/s
91 |
50201602200 |
— | ||
|
2A
|
2A
54601602200
Fork Leg L/s
91 |
54601602200 |
— | ||
|
2A
|
2A
50201602300
Fork Leg L/s
91 |
50201602300 |
— | ||
|
2B
|
2B
54601702200
Fork Leg R/s
91 |
54601702200 |
— | ||
|
2B
|
2B
50201702300
Fork Leg R/s
91 |
50201702300 |
— | ||
|
28
|
28
50201702200
Fork Leg R/s
91 |
50201702200 |
— | ||
|
32
|
32
54601032044
Bot.triple clamp x=18mm/d=57mm
91 |
54601032044 |
— | ||
|
32
|
32
58001032744
Triple clamp bottom cpl. x=22
91 |
58001032744 |
— | ||
|
33
|
33
50101033100 Fork Tube L=24491 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=24491 |
54801133000 |
US $78.15 |
||
|
34
|
34
54601034100
Top triple clp x=18mm/d=54mm
91 |
54601034100 |
— | ||
|
34
|
34
50201034000
Top Fork Plate
91 |
50201034000 |
— | ||
|
38
|
38
54601038000
Handlebar Clamp
95, (As Required) |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 200195, (As Required) |
50301038000 |
US $21.54 |
||
|
43
|
43
56401043000 Hh screw m20x1,595, (As Required) |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=2795, (As Required) |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
95, (As Required) |
56401044000 |
— | ||
|
53
|
53
15080303
Superseded By 0025080306
SW=10 |
15080303 |
— | ||
|
54
|
54
15080353
Hh Collar Screw M8X35,ws10
SW=10 |
15080353 |
— | ||
|
57
|
57
933070203
Hex Head Screw
(As Required)) |
933070203 |
— | ||
|
58
|
58
934070003
Hex Nut
(As Required)) |
934070003 |
— | ||
|
60
|
60
931050403
Hex Head Screw
(As Required)) |
931050403 |
— | ||
|
61
|
61
931050453
Hex Head Screw
(As Required)) |
931050453 |
— | ||
|
62
|
62
125050003
Washer
(As Required)) |
125050003 |
— | ||
|
64
|
64
985050003
Self Locking Nut Din0985-M 5
(As Required)) |
985050003 |
— | ||
|
66
|
66
15050163
Hh Collar Screw M5X16,ws8
SW=8 |
15050163 |
— | ||
|
67
|
67
54601094100 Collar bushing f.sliding prot.SW=8 |
54601094100 |
US $5.39 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing Lip91 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing Lip91 |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 0691 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 0691 |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket top91 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head Cover91 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover91 |
78101086000 |
US $5.08 |
||
|
90A
|
90A
54601090000
Protector guide l/s white
91 |
54601090000 |
— | ||
|
90B
|
90B
54601190000
Protector guide r/s white
91 |
54601190000 |
— | ||
|
91A
|
91A
54601091000 Sliding protector l/s white91 |
54601091000 |
US $23.70 |
||
| replacement | |||||
|
91A
|
91A
5460109100030 Sliding protector l/s black91 |
5460109100030 |
US $19.14 |
||
|
91B
|
91B
54601191000
Sliding protector r/s white
91 |
54601191000 |
— | ||
|
93
|
93
50201090000
Clamp for brake hose '94
94 |
50201090000 |
— | ||
|
98
|
98
15070253
Hh Collar Screw M7X25,ws8
94 |
15070253 |
— | ||
|
99
|
99
54212035000
Ring wrench ws=32
94 |
54212035000 |
— | ||
