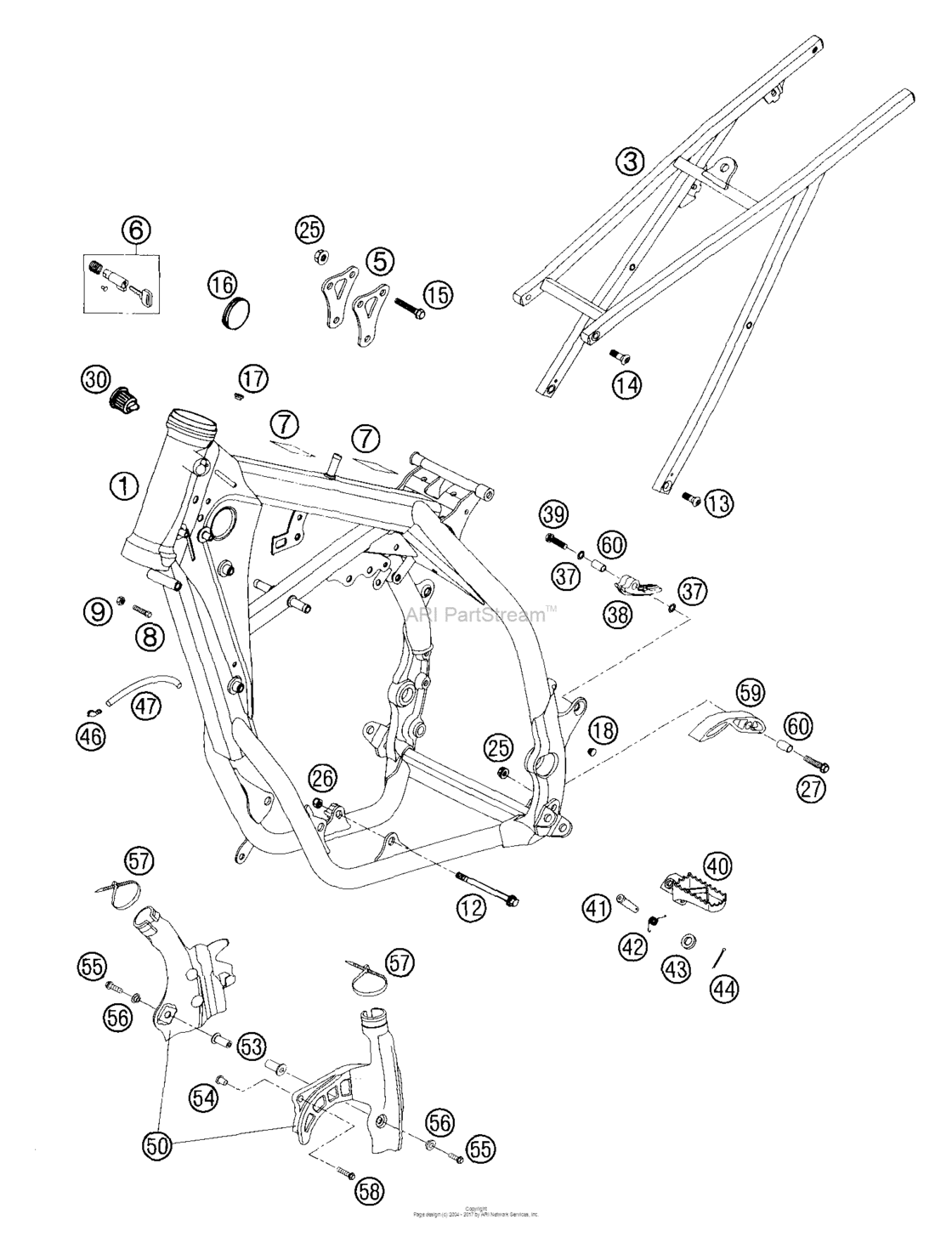

Frame, Sub Frame Diagram KTM 300 300 MXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480300100096
Frame 250 sx "u3" 03
(BLACK) |
5480300100096 |
— | ||
|
1
|
1
5480300110096
Frame 250/300 mxc, exc "e4" 04
(BLACK) |
5480300110096 |
— | ||
|
1
|
1
5480300120096
Frame 250/300 Exc-Eu In.f4In. 04 (Exc Eu+Aus)
(BLACK) |
5480300120096 |
— | ||
|
3
|
3
54803002044 Sub frame cpl.200/250sx "e3"03(BLACK) |
54803002044 |
US $420.63 |
||
|
3
|
3
54803002144
Sub frame cpl.2-st.exc "l3" 04
(BLACK) |
54803002144 |
— | ||
|
5
|
5
54803013000 Reinforcing bracket 250 03(BLACK) |
54803013000 |
US $5.44 |
||
|
6
|
6
71003007000 Steering head lock cpl. zadi(BLACK) |
71003007000 |
US $28.07 |
||
|
7
|
7
50307012000 Adh. foil transp. 80x80 mm 04(BLACK) |
50307012000 |
US $2.02 |
||
|
8
|
8
59001037000 Special screw m8x26 ws=10(BLACK) |
59001037000 |
US $2.09 |
||
|
9
|
9
0934080003 Hexagon Nut Din0934-M 8(BLACK) |
0934080003 |
US $3.26 |
||
|
12
|
12
54603013000 Engine brac.scr. m10x105 ws=13(BLACK) |
54603013000 |
US $9.74 |
||
|
13
|
13
54610052000 Sprocket screw-ah m8x20 ws=6(BLACK) |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
13
|
13
0019080206 Counter-sunk screw isa45 m8x20(BLACK) |
0019080206 |
US $1.82 |
||
|
14
|
14
54510052100
Counter-Sunk Screw Isa45 M8X26
(BLACK) |
54510052100 |
— | ||
| replacement | |||||
|
14
|
14
0019080266S Counter-sunk screw isa45 m8x26(BLACK) |
0019080266S |
US $2.23 |
||
|
15
|
15
56530079000
Collar screw m8x42 ws=13 10.9
(BLACK) |
56530079000 |
— | ||
| replacement | |||||
|
15
|
15
56530079000S Hh Collar Screw M8X44 Ws13(BLACK) |
56530079000S |
US $1.60 |
||
|
16
|
16
54606004000 Plug 37mm(BLACK) |
54606004000 |
US $1.89 |
||
|
17
|
17
36111021000 Plug(BLACK) |
36111021000 |
US $0.61 |
||
|
18
|
18
54403135000 Plastic cap sfl10(BLACK) |
54403135000 |
US $1.31 |
||
|
25
|
25
54310086200 Self Locking Nut M8 10.9(BLACK) |
54310086200 |
US $1.56 |
||
|
26
|
26
54310086100 Self locking nut m10 cu ws=14(BLACK) |
54310086100 |
US $2.55 |
||
|
27
|
27
0015080353 Hh Collar Screw M 8X35 Ws=10(BLACK) |
0015080353 |
US $7.12 |
||
|
30
|
30
42007049000
Plastic cap
(BLACK) |
42007049000 |
— | ||
|
37
|
37
36003014000 Lock washer 8mm(BLACK) |
36003014000 |
US $0.46 |
||
|
38
|
38
54804067000 Chain sliding piece 03(BLACK) |
54804067000 |
US $6.95 |
||
|
39
|
39
0015080303
Hh Collar Screw M8X30 Tx40
(BLACK) |
0015080303 |
— | ||
| replacement | |||||
|
39
|
39
0025080306 Hh collar screw m8x30 tx40(BLACK) |
0025080306 |
US $3.89 |
||
|
40
|
40
59003040250 Footrest L/s 08(BLACK) |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
40
|
40
78003040050 Footrest l/s 08(BLACK) |
78003040050 |
US $44.12 |
||
|
40
|
40
59003041250 Footrest R/s 08(BLACK) |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
40
|
40
78003041050 Footrest r/s 08(BLACK) |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 Mm(BLACK) |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/s(BLACK) |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,5(BLACK) |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steel(BLACK) |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steel(BLACK) |
0094032250 |
US $1.12 |
||
|
46
|
46
50303089000 Angle piece '97(BLACK) |
50303089000 |
US $4.52 |
||
|
47
|
47
55007016001 Pvc-hose 7x10 per meter(BLACK) |
55007016001 |
US $5.98 |
||
|
50
|
50
54803094000 Frame protection set 03(BLACK) |
54803094000 |
US $26.33 |
||
|
53
|
53
54803092050 Blind plug-in nut m5 wn 22a 03(BLACK) |
54803092050 |
US $4.76 |
||
|
54
|
54
59030060050 Bushing F. Sprocket Cover Rac(BLACK) |
59030060050 |
US $2.09 |
||
|
55
|
55
0014050253 Hh collar screw m 5x25 ws=6(BLACK) |
0014050253 |
US $2.57 |
||
|
56
|
56
54803092060 Bush f. frame protection 03(BLACK) |
54803092060 |
US $3.43 |
||
|
57
|
57
44011076200 Cable tie 200/3,6mm black(BLACK) |
44011076200 |
US $0.39 |
||
|
58
|
58
0015060353
Hh collar screw m 6x35 ws=8
(BLACK) |
0015060353 |
— | ||
| replacement | |||||
|
58
|
58
0025060356 Hh collar screw m6x35 tx30(BLACK) |
0025060356 |
US $6.15 |
||
|
59
|
59
51103053000 Chain sliding piece below '97(BLACK) |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x20(BLACK) |
51103053051 |
US $3.06 |
||
