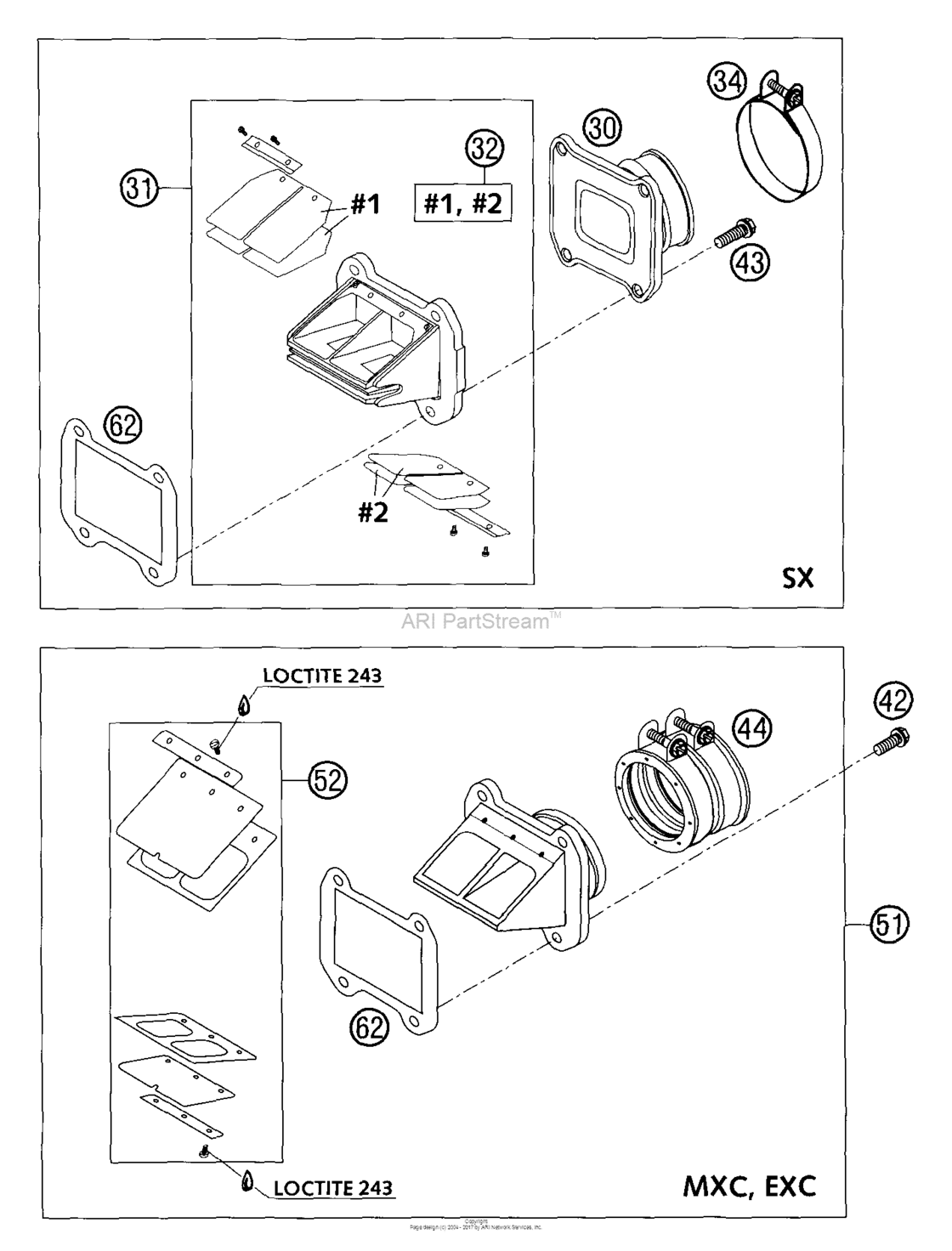

Reed Valve Case Diagram KTM 300 300 MXC
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30
|
30
54830050000 Intake flange v-force 04(As Required) |
54830050000 |
US $44.93 |
||
|
31
|
31
54830051144 Reed Valve Assy Cpl(As Required) |
54830051144 |
US $338.88 |
||
| replacement | |||||
|
31
|
31
0015060203
Hh Collar Screw M 6X20 Ws=8
(As Required) |
0015060203 |
— | ||
|
32
|
32
54830052000 Reed valve set v-force 250 04(As Required) |
54830052000 |
US $111.25 |
||
|
34
|
34
54330061000 Clamp 52/12 gemi(As Required) |
54330061000 |
US $7.31 |
||
|
42
|
42
0015060163 Hh Collar Screw M 6X16 Ws=8(As Required) |
0015060163 |
US $2.23 |
||
|
43
|
43
0015060203
Hh Collar Screw M 6X20 Ws=8
(As Required) |
0015060203 |
— | ||
|
44
|
44
54736044000
Rubber boot cpl. boyesen 2002
(As Required) |
54736044000 |
— | ||
| replacement | |||||
|
44
|
44
54736044044 RUBBER BOOT WITH CLAMP(As Required) |
54736044044 |
US $40.63 |
||
|
51
|
51
54830051044 Superseded By 54830051544(As Required) |
54830051044 |
US $335.17 |
||
| replacement | |||||
|
51
|
51
0015060203
Hh Collar Screw M 6X20 Ws=8
(As Required) |
0015060203 |
— | ||
|
52
|
52
54730052000 Reed valve cpl. boyesen 02(As Required) |
54730052000 |
US $88.03 |
||
|
62
|
62
54830062100
Gasket reed valve case 04
(As Required) |
54830062100 |
— | ||
| replacement | |||||
|
62
|
62
54830062200 Gasket Reed Valve Case(As Required) |
54830062200 |
US $5.36 |
||
