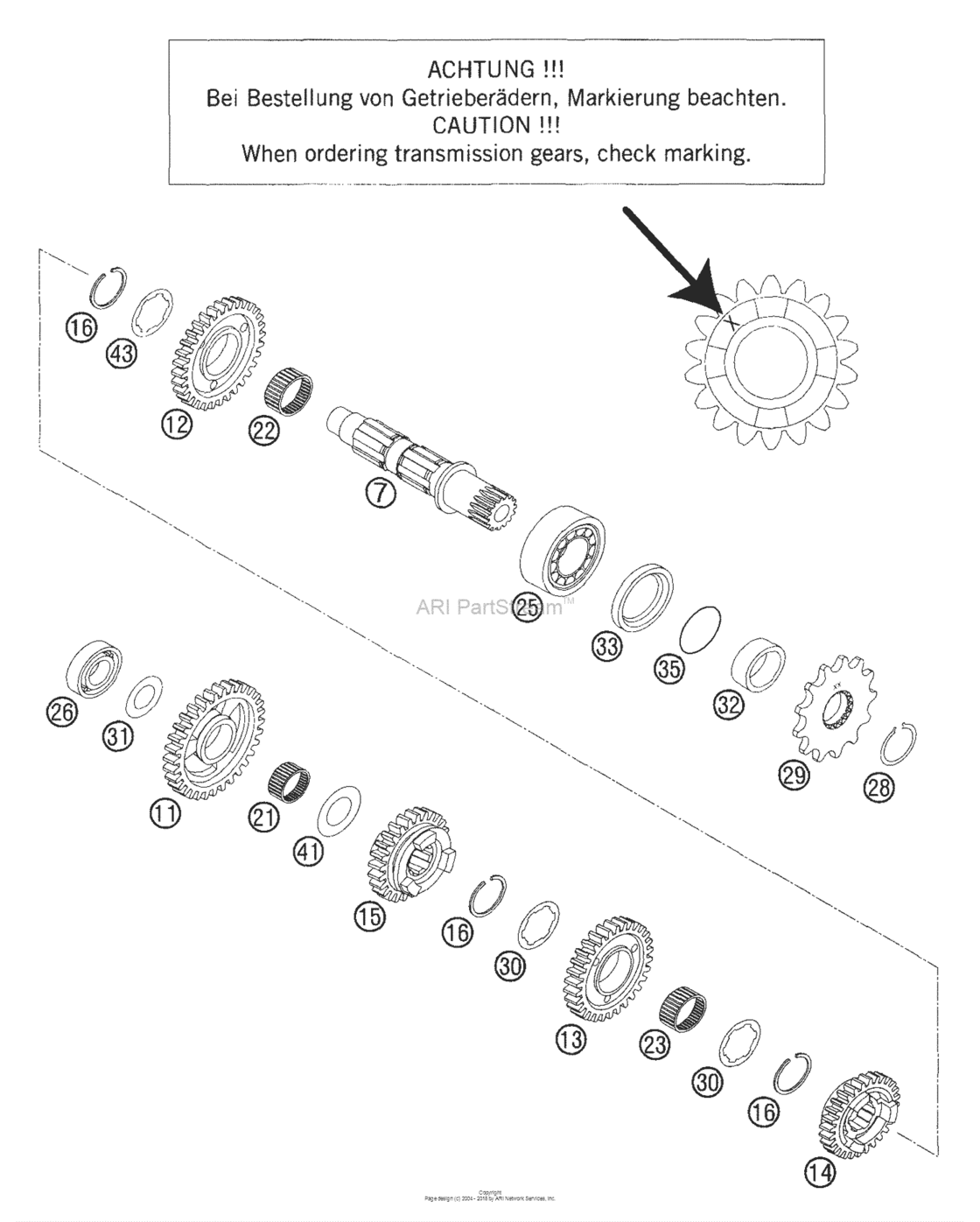

Transmission Ii - Countershaft Diagram KTM 300 300 MXC
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 MXC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
54833007000 Countershaft 2003(As Required) |
54833007000 |
US $117.49 |
||
|
11
|
11
54833011000 Idler gear 1st g. 28-t "1s28"(As Required) |
54833011000 |
US $97.53 |
||
| replacement | |||||
|
11
|
11
54833011100 Idler Gear 1 St(As Required) |
54833011100 |
US $88.52 |
||
|
12
|
12
54833012100 Idler gear 2nd g. 26-t "2s26"(As Required) |
54833012100 |
US $84.58 |
||
|
13
|
13
54833013000 Idler gear 3rd g. 24-t "3s24"(As Required) |
54833013000 |
US $89.15 |
||
|
14
|
14
54833014000 Sliding gear 4th g.24-t "4s24"(As Required) |
54833014000 |
US $100.33 |
||
|
15
|
15
54833015000 Sliding gear 5th g.21-t "5s21"(As Required) |
54833015000 |
US $87.96 |
||
|
16
|
16
54633096000 Axial-Circlip 25X1,65(As Required) |
54633096000 |
US $3.43 |
||
| replacement | |||||
|
16
|
16
77033022000 Axial-circlip 25x1,65(As Required) |
77033022000 |
US $3.11 |
||
|
21
|
21
0405202413 Needle bear. k20x24x13(As Required) |
0405202413 |
US $11.29 |
||
|
22
|
22
0405242812 Neddle bear. k24x28x11,9 div.(As Required) |
0405242812 |
US $6.12 |
||
|
23
|
23
0405222613 Needle Bear. K 22X26X13 Tn(As Required) |
0405222613 |
US $9.52 |
||
|
25
|
25
54833025000 Ball bearing tm-sc05c20c4 ntn(As Required) |
54833025000 |
US $70.53 |
||
|
26
|
26
0625062035 Ball bearing 6203 jr2 c3(As Required) |
0625062035 |
US $12.95 |
||
|
28
|
28
52033096000 Lock ring din0471-25x1,64sd(As Required) |
52033096000 |
US $4.17 |
||
|
29
|
29
50033029013
Sprocket 13T
(As Required) |
50033029013 |
— | ||
| replacement | |||||
|
29
|
29
79233029013 Sprocket 13T(As Required) |
79233029013 |
US $33.08 |
||
|
29
|
29
50033029014
Front sprocket 14-t
(As Required) |
50033029014 |
— | ||
| replacement | |||||
|
29
|
29
79233029014 Sprocket 14T(As Required) |
79233029014 |
US $34.80 |
||
|
29
|
29
50033029015 Front sprocket 15-t(As Required) |
50033029015 |
US $33.59 |
||
|
30
|
30
59033030000 Stop disc 25,2x32x1,5(As Required) |
59033030000 |
US $1.75 |
||
|
31
|
31
56033030000 Stop Disc 17,2X30X1(As Required) |
56033030000 |
US $3.83 |
||
|
32
|
32
54833032011 Spacer sleeve drive end 2003(As Required) |
54833032011 |
US $15.61 |
||
|
33
|
33
0760324565
Shaft seal ring 32x45x6,5 btsl
(As Required) |
0760324565 |
— | ||
| replacement | |||||
|
33
|
33
0760324571 Shaft seal ring 32x45x7 bslnbr(As Required) |
0760324571 |
US $6.61 |
||
|
35
|
35
0770248022 O-ring 24,80x2,20 p431 nbr 70(As Required) |
0770248022 |
US $2.26 |
||
| replacement | |||||
|
35
|
35
0770250020 O-ring 25,00x2,00 nbr 70(As Required) |
0770250020 |
US $2.26 |
||
|
41
|
41
59033080000 Shim 20X32X1(As Required) |
59033080000 |
US $1.73 |
||
|
43
|
43
50333043000 Stop disc 25,2x32x1(As Required) |
50333043000 |
US $4.86 |
||
