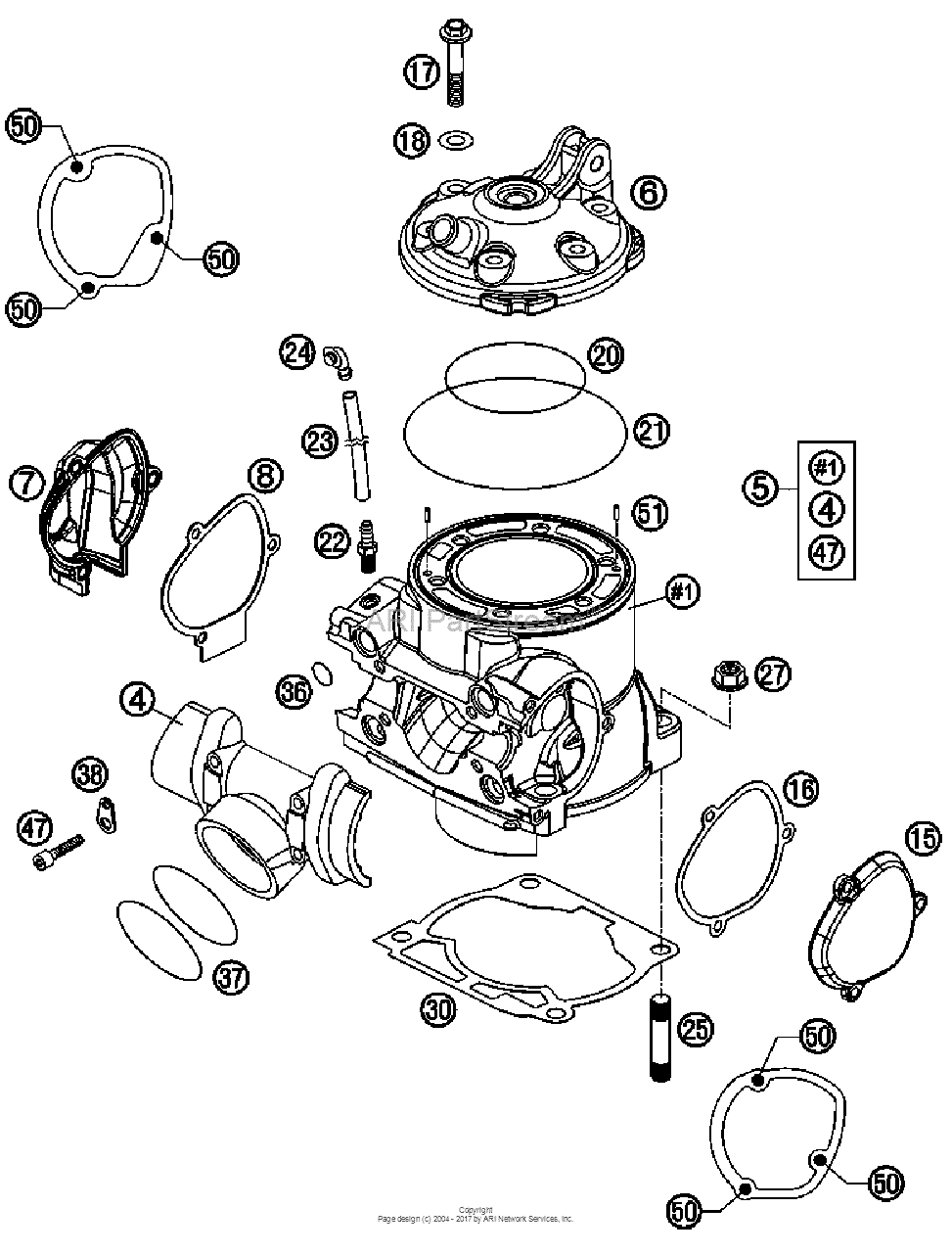

Cylinder, Cylinder Head Diagram KTM 300 300 SD
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 SD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
54837001200 Intermediate flange 250/300 0707 |
54837001200 |
US $204.02 |
||
|
5
|
5
54830305144
Cylinder 300 w. flange 08
08 |
54830305144 |
— | ||
| replacement | |||||
|
5
|
5
54830338100 Cylinder + piston cpl.08 |
54830338100 |
US $1,333.24 |
||
|
6
|
6
54830306100
Cylinder Head 300 Xc/exc
08 |
54830306100 |
— | ||
| replacement | |||||
|
6
|
6
54830306700 Cylinder Head 300 Xc/exc08 |
54830306700 |
US $158.92 |
||
|
7
|
7
5483700700015 Control cover r/s 0909 |
5483700700015 |
US $20.55 |
||
|
8
|
8
54837008000 Gasket for control cover r/s09 |
54837008000 |
US $6.55 |
||
|
15
|
15
5483700500015 Control cover l/s 0909 |
5483700500015 |
US $21.28 |
||
|
16
|
16
54837006000 Gasket for control cover l/s09 |
54837006000 |
US $6.55 |
||
|
17
|
17
54830079000 Collar screw m 8x35 ws=1309 |
54830079000 |
US $3.13 |
||
|
18
|
18
56530080000 Cu-seal ring 8 x 16 x 109 |
56530080000 |
US $2.24 |
||
|
20
|
20
0770078020 O-ring 78,00x2,00 vit. black09 |
0770078020 |
US $6.61 |
||
|
21
|
21
0770105020 O-ring 105,00x2,00 0707 |
0770105020 |
US $5.70 |
||
|
22
|
22
58336020090 Vacuum connection m 6x107 |
58336020090 |
US $5.61 |
||
|
23
|
23
31007107001 Pvc-Hose 6X9As Required |
31007107001 |
US $5.85 |
||
| replacement | |||||
|
23
|
23
50335030001 Pvc-Hose 6X9As Required |
50335030001 |
US $5.12 |
||
|
24
|
24
50303089000 Angle piece '9797 |
50303089000 |
US $4.52 |
||
|
25
|
25
0835100351 Stud din0835-m10x3597 |
0835100351 |
US $4.32 |
||
|
27
|
27
54630044000 Collar nut m10 ws=1397 |
54630044000 |
US $2.16 |
||
|
30
|
30
54830030002 Gasket cylinder base 0,2mm 03As Required, 03 |
54830030002 |
US $9.35 |
||
|
30
|
30
54830030004 Gasket cylinder base 0,4mm 03As Required, 03 |
54830030004 |
US $6.55 |
||
|
30
|
30
54830030005 Gasket cylinder base 0,5mm 03As Required, 03 |
54830030005 |
US $6.27 |
||
|
30
|
30
54830030075 Gasket cylinder base 0,75mm 03As Required, 03 |
54830030075 |
US $6.58 |
||
|
36
|
36
0770116241 O-ring 11,3 x2,4 siliconAs Required, 03 |
0770116241 |
US $1.97 |
||
|
37
|
37
0770440030 O-ring 44,00x3,00 vitonAs Required, 03 |
0770440030 |
US $6.05 |
||
|
38
|
38
51005074000 Retaining plateAs Required, 03 |
51005074000 |
US $2.11 |
||
|
47
|
47
0912060303 Ah screw din0912-m 6x30As Required, 03 |
0912060303 |
US $1.60 |
||
|
50
|
50
58605083014 Screw m5x14 torx 25 0707 |
58605083014 |
US $1.58 |
||
|
51
|
51
0402040980 Needle Rol.din5402 Nrb 4X9,807 |
0402040980 |
US $1.77 |
||
