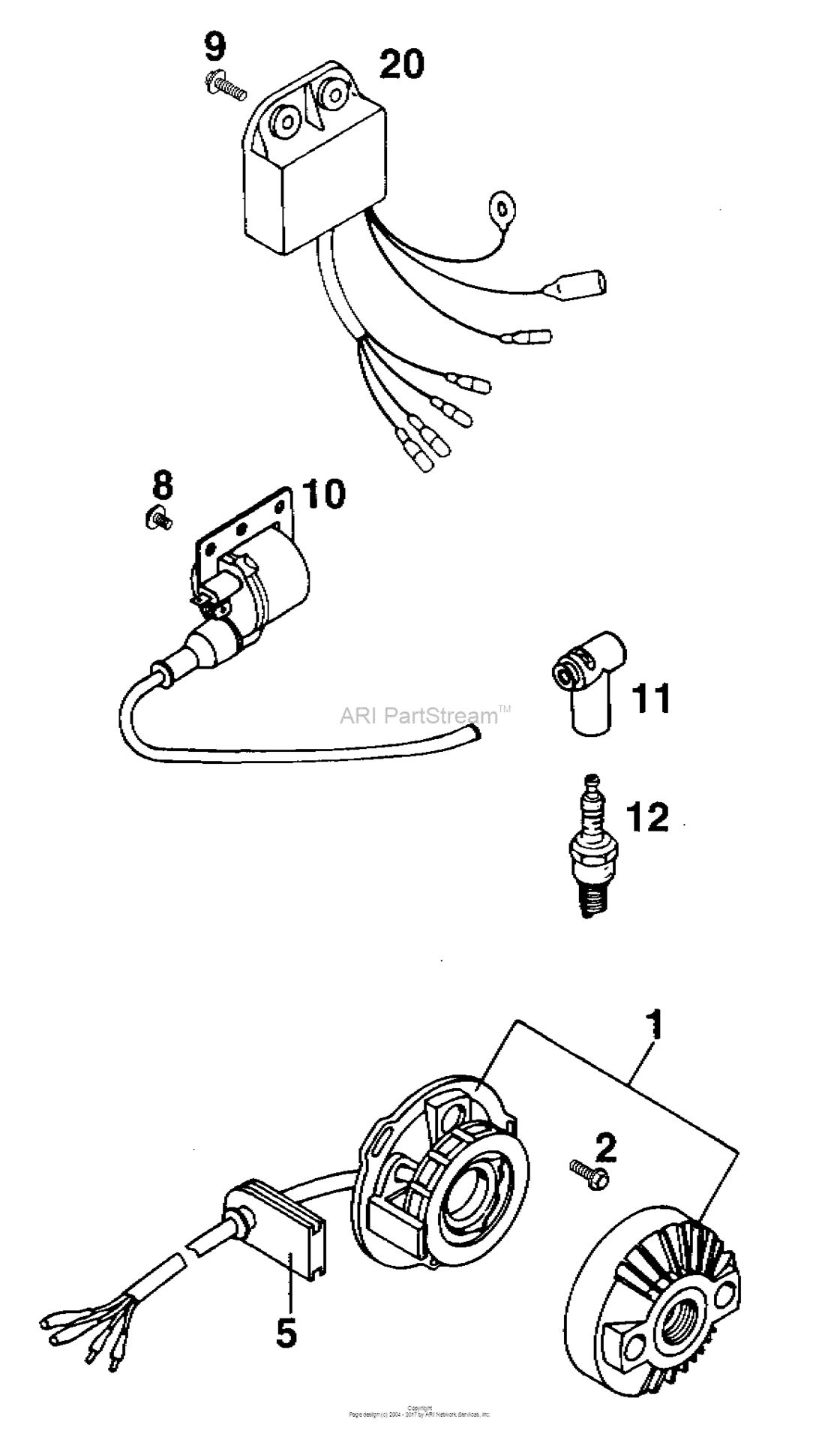

Ignition System Diagram KTM 300 300 SX
- Year
- 1995
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 SX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54631002344 Ignition Cpl92 |
54631002344 |
US $568.82 |
||
| replacement | |||||
|
1
|
1
54631606100
Ignition modul tm 14-07
92 |
54631606100 |
— | ||
|
2
|
2
0015050163 Hh Collar Screw M 5X16 Ws=892 |
0015050163 |
US $1.31 |
||
|
5
|
5
54631004300 Rubber passage92 |
54631004300 |
US $6.21 |
||
|
8
|
8
0014060103
Hh Collar Screw M6X10 Tx30
SW=8 |
0014060103 |
— | ||
| replacement | |||||
|
8
|
8
0024060106 Hh collar screw m6x10 tx30SW=8 |
0024060106 |
US $4.35 |
||
|
9
|
9
0014060203 Hh Collar Screw M 6X20 Ws=8SW=8 |
0014060203 |
US $3.26 |
||
|
10
|
10
54631806000
Ignition Coil
94 |
54631806000 |
— | ||
| replacement | |||||
|
10
|
10
54631806044 Ignition coil94 |
54631806044 |
US $72.76 |
||
|
11
|
11
54531010000 Spark Plug ProtectNGK |
54531010000 |
US $34.54 |
||
| replacement | |||||
|
11
|
11
47039090000 Spark plug cap ngk reinforc.04NGK |
47039090000 |
US $24.26 |
||
|
12
|
12
54531093009
Superseded By 54331093410
NGK |
54531093009 |
— | ||
|
20
|
20
54631831000 Dc-elektronic box contec sx'9494 |
54631831000 |
US $477.68 |
||
