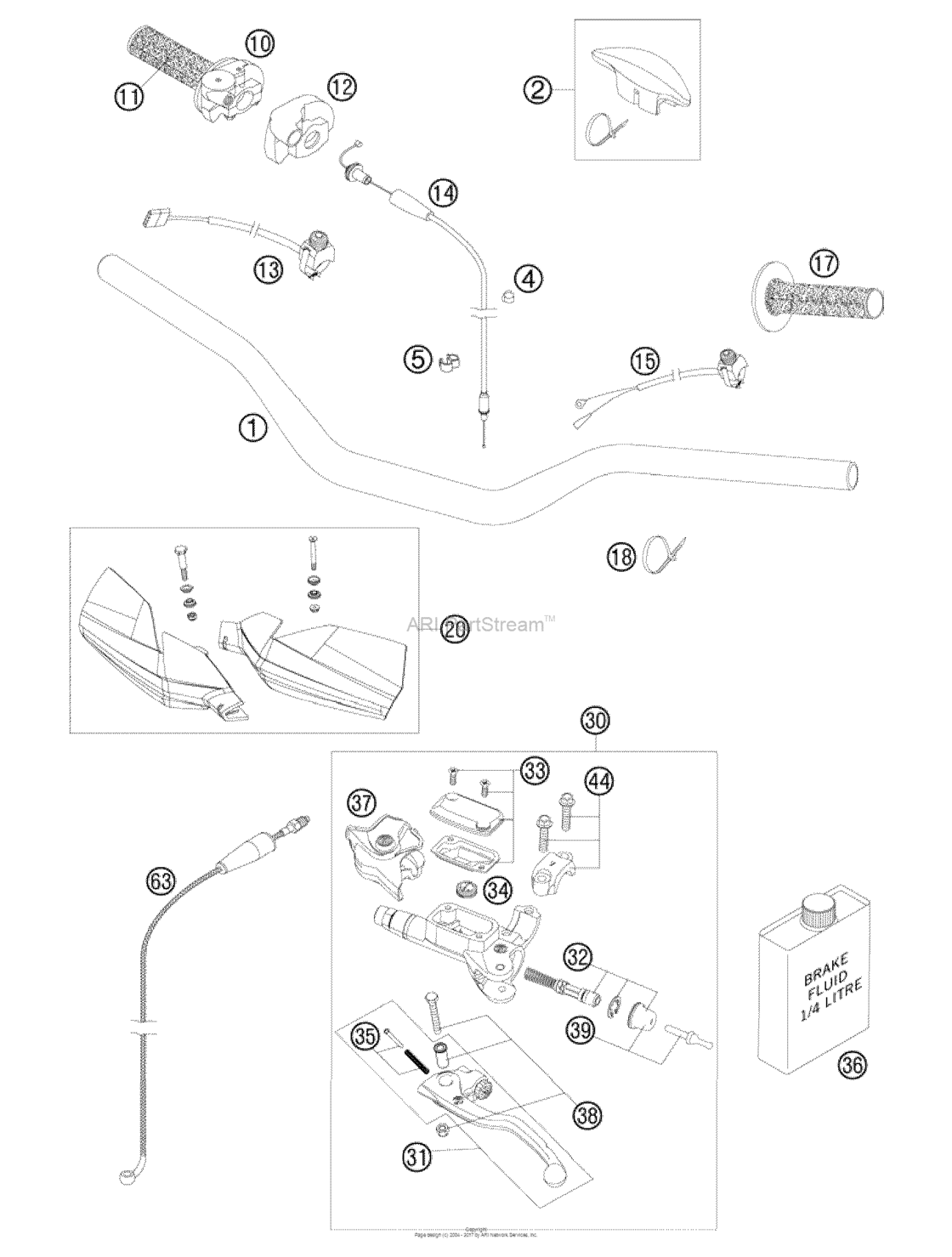

Handlebar, Controls Diagram KTM 300 300 XC
- Year
- 2009
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5480200130017 Handlebar neken d=28mm exc 0707 |
5480200130017 |
US $192.39 |
||
|
2
|
2
59002002000
Superseded By 77202002100
05 |
59002002000 |
— | ||
|
4
|
4
57013072000 Wiring holder 12mm05 |
57013072000 |
US $3.50 |
||
|
5
|
5
60111094000 Clamp 5/7 mm 0606 |
60111094000 |
US $3.54 |
||
|
10
|
10
54802010000
Throttle Grip Cpl. 2St. 13
04 |
54802010000 |
— | ||
| replacement | |||||
|
10
|
10
51502010200 Throttle Grip Cpl. 2St. 1304 |
51502010200 |
US $67.97 |
||
|
11
|
11
54802013000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802013000 |
— | ||
| replacement | |||||
|
11
|
11
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
12
|
12
50302020000 Protection Cover '97'97 |
50302020000 |
US $16.75 |
||
|
13
|
13
59411074000 Starter control 0404 |
59411074000 |
US $39.17 |
||
| replacement | |||||
|
13
|
13
78111074000 Starter Button Grey 1304 |
78111074000 |
US $58.31 |
||
|
14
|
14
50302091000
Throttle c. 125-380 dom./keih.
04 |
50302091000 |
— | ||
| replacement | |||||
|
14
|
14
51502091200 Throttle Cable 2-St. 201404 |
51502091200 |
US $39.20 |
||
|
15
|
15
50311089200 Short Circuit Button 0202 |
50311089200 |
US $50.97 |
||
|
17
|
17
54802039000
Grip-Set Gray/orange 09
Not Available
04 Not Available |
54802039000 |
— | ||
| replacement | |||||
|
17
|
17
54802021200 Grip-set gray/orange 0904 Not Available |
54802021200 |
US $28.29 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm black(As required) |
44011076200 |
US $0.39 |
||
|
20
|
20
7700207900004 Hand guards cpl.l/s+r/s or. 0606 |
7700207900004 |
US $49.98 |
||
|
30
|
30
54802030044
Master cylinder cpl. 06
06 |
54802030044 |
— | ||
| replacement | |||||
|
30
|
30
54802030144 Master Cylinder Cpl06 |
54802030144 |
US $214.10 |
||
|
31
|
31
54802031000 Clutch lever cpl. brembo 0606 |
54802031000 |
US $45.82 |
||
|
32
|
32
54802032000 Rep. kit piston 0606 |
54802032000 |
US $43.21 |
||
|
33
|
33
54802003000 Cover hyd. clutch cpl.06 |
54802003000 |
US $30.28 |
||
|
34
|
34
54802051000 Valve06 |
54802051000 |
US $16.88 |
||
|
35
|
35
54802052000 Bolt kpl.06 |
54802052000 |
US $26.49 |
||
|
36
|
36
00062030000 Brake fluid dot5.1 0,25l06 |
00062030000 |
US $14.35 |
||
|
37
|
37
54802037000 Protection cap 0606 |
54802037000 |
US $18.77 |
||
|
38
|
38
54802038100 Lever screw cpl. 0606 |
54802038100 |
US $36.02 |
||
|
39
|
39
54802046000 Push rod cpl.06 |
54802046000 |
US $20.01 |
||
|
44
|
44
54802005100 Clamp cpl. 0606 |
54802005100 |
US $23.49 |
||
|
63
|
63
54832063000 Clutch pipe 0606 |
54832063000 |
US $87.04 |
||
