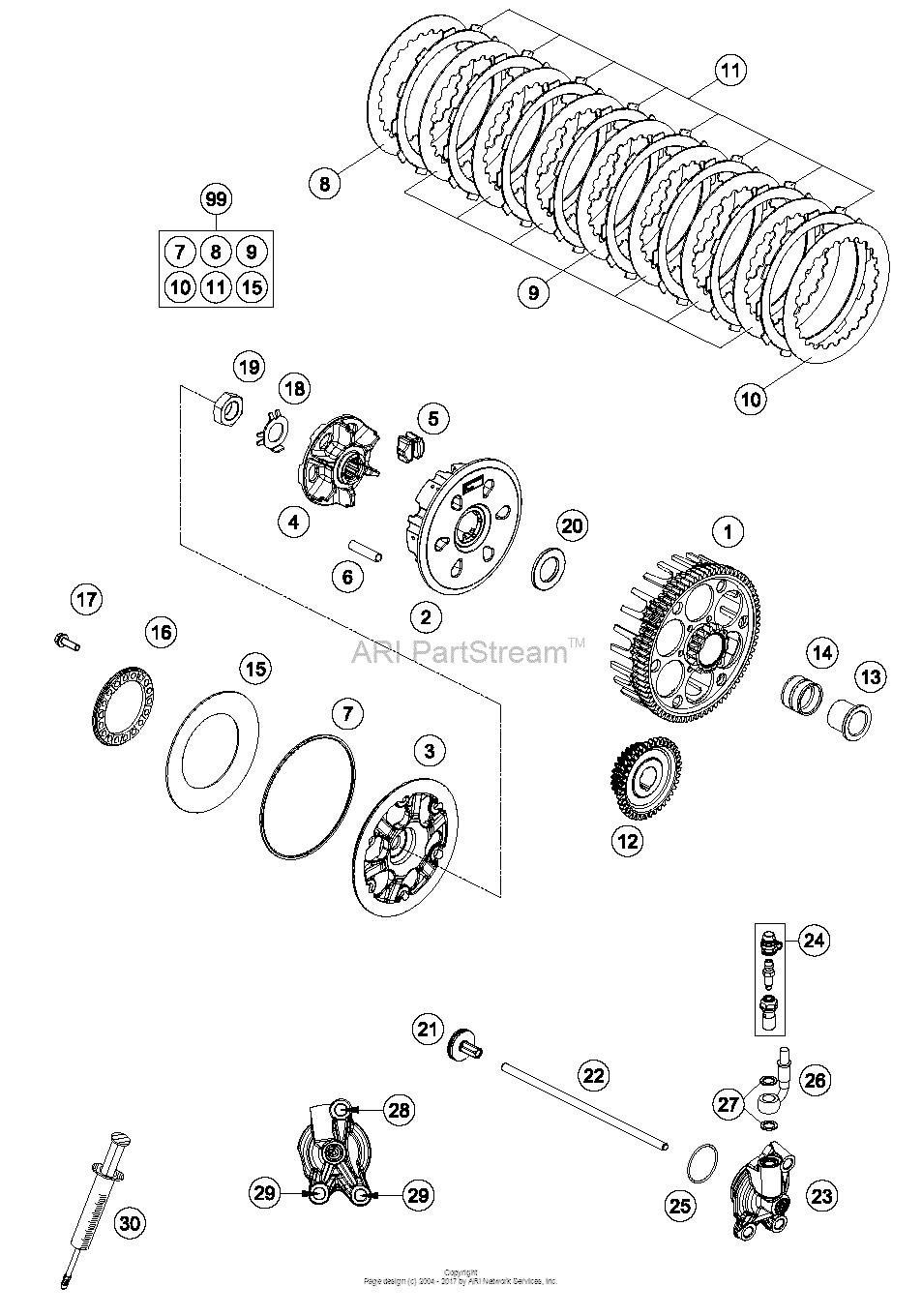

Clutch Diagram KTM 300 300 XC
- Year
- 2017
- Sales region
- US/EU
- Engine Capacity
- 300
- Model
- 300 XC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
79232101073 Outer Clutch Hub Exc Not AvailableAs Required |
79232101073 |
US $244.53 |
||
|
2
|
2
78132002300 Clutch HubAs Required |
78132002300 |
US $233.27 |
||
|
3
|
3
79432003000 Clutch Pressure CapAs Required |
79432003000 |
US $33.97 |
||
|
4
|
4
78132002111 HubAs Required |
78132002111 |
US $72.91 |
||
|
5
|
5
78132025100 Damping RubberAs Required |
78132025100 |
US $31.20 |
||
|
6
|
6
77232004000 Driving sleeve d=7,95 l=38As Required |
77232004000 |
US $4.40 |
||
|
7
|
7
78132013000 Washer 112X118X1.5As Required |
78132013000 |
US $9.08 |
||
|
8
|
8
59032010100 Intermediate disc 1mm 20022002 |
59032010100 |
US $8.94 |
||
|
9
|
9
59032010200 Intermediate Disc 1,4Mm 20022002 |
59032010200 |
US $9.96 |
||
|
10
|
10
78932010000 Intermediate Disc 1Mm2002 |
78932010000 |
US $11.39 |
||
|
11
|
11
54832011100 Lining Disc 1,95 Mm2002 |
54832011100 |
US $23.22 |
||
|
12
|
12
55432024026 Primary Gear2002 |
55432024026 |
US $142.97 |
||
|
13
|
13
77232015000 Inner ring2002 |
77232015000 |
US $29.27 |
||
|
14
|
14
56532095000 Needle bearing k26x30x22zw.kse2002 |
56532095000 |
US $21.51 |
||
|
15
|
15
78132005000 Belleville Spring 71X115X1,5 I2002 |
78132005000 |
US $32.13 |
||
|
16
|
16
78132006100 Spring Ring2002 |
78132006100 |
US $39.70 |
||
|
17
|
17
0025050166 Hh collar screw m5x16 tx30TX30 |
0025050166 |
US $2.60 |
||
|
18
|
18
78132018000
Tab Washer
TX30 |
78132018000 |
— | ||
| replacement | |||||
|
18
|
18
78132018100 Tab WasherTX30 |
78132018100 |
US $8.42 |
||
|
19
|
19
0936181505 Hexagon Nut Din0936-M18X1,5 RTX30 |
0936181505 |
US $7.60 |
||
|
20
|
20
77232009000 Washer 21,8 X 37 X 5,1TX30 |
77232009000 |
US $8.21 |
||
|
21
|
21
78032057044 Pressure piece cpl. 08TX30 |
78032057044 |
US $22.34 |
||
|
22
|
22
79232054000 Push RodTX30 |
79232054000 |
US $23.72 |
||
|
23
|
23
79232061044 Output Cylinder CplTX30 |
79232061044 |
US $241.69 |
||
|
24
|
24
79032064000 Bleeder Screw CplTX30 |
79032064000 |
US $30.67 |
||
|
25
|
25
0770300015 O-ring 30,00x1,50 nbr 70TX30 |
0770300015 |
US $3.26 |
||
|
26
|
26
79232063000 Clutch PipeTX30 |
79232063000 |
US $114.50 |
||
|
27
|
27
0603080161 Coppert Gasket 8X16X1TX30 |
0603080161 |
US $0.58 |
||
|
28
|
28
0025060256 Hh collar screw m6x25 tx30TX30 |
0025060256 |
US $2.45 |
||
|
29
|
29
0025060166 Hh collar screw m6x16 tx30TX30 |
0025060166 |
US $2.23 |
||
|
30
|
30
50329050000 Vent Injektion Hydr. ClutchTX30 |
50329050000 |
US $50.78 |
||
|
99
|
99
54832011110 Clutch Kit 250/300 13-1513-15, As Required |
54832011110 |
US $216.90 |
||
